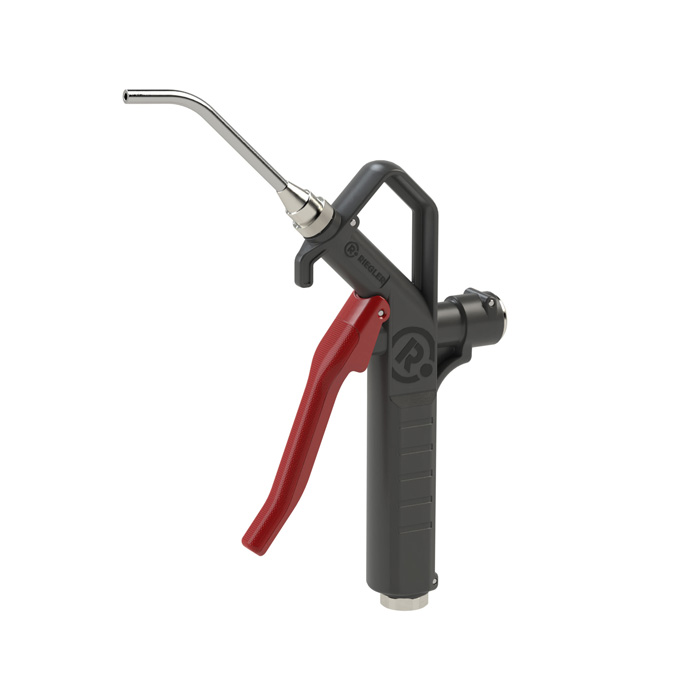

RIEGLER Blow gun, plastic, rod end, and attachable, G 1/4 IG
Type number: BPKRSDUAG14
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Metering blow gun, plastic, rod nozzle 100 mm, can be connected at the bottom, PN max. 12 bar, G 1/4 IG
| Max. operating pressure | 12 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 90 °C |
| Nozzle | M12x1.25 |
| Connection type | G 1/4 FEMALE THREAD |
| Class name | PLUS |
| Nozzle length | 100 mm |
| Hand lever | Polyamide with glass fiber (PA6 GF30) |
| Gun body | Polypropylene (PP) |
| Nozzle type | Bar nozzle |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

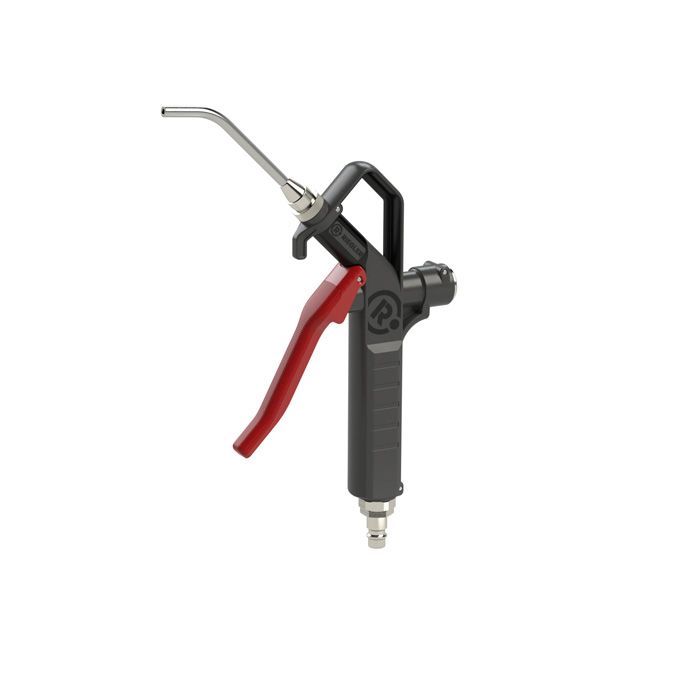

![[129381] RIEGLER Blow gun, plastic, rod end, and connecting nipple NW 7.2](/web/image/product.template/281259/image_128/%5B129381%5D%20RIEGLER%20Blow%20gun%2C%20plastic%2C%20rod%20end%2C%20and%20connecting%20nipple%20NW%207.2?unique=6ffed55)
|
Type number: BPKRSDUANW72 |
19.84 € | |

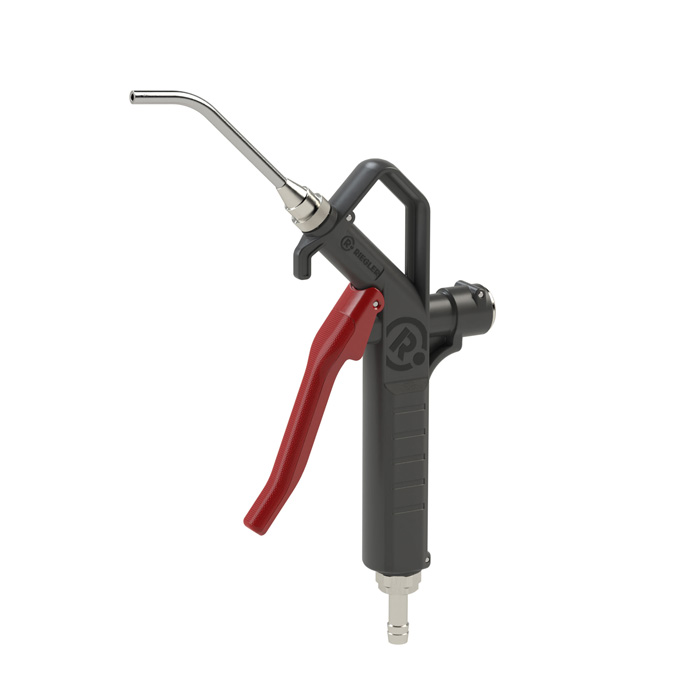

![[129384] RIEGLER Blow gun, plastic, rod end, and connecting nozzle LW 13](/web/image/product.template/281262/image_128/%5B129384%5D%20RIEGLER%20Blow%20gun%2C%20plastic%2C%20rod%20end%2C%20and%20connecting%20nozzle%20LW%2013?unique=b0d8514)
|
Type number: BPKRSDUALW13 |
19.84 € | |
![[129382] RIEGLER Blow gun, plastic, rod end, and connecting nozzle LW 6](/web/image/product.template/281260/image_128/%5B129382%5D%20RIEGLER%20Blow%20gun%2C%20plastic%2C%20rod%20end%2C%20and%20connecting%20nozzle%20LW%206?unique=d986e89)
|
Type number: BPKRSDUALW6 |
19.84 € | |
![[129383] RIEGLER Blow gun, plastic, rod end, and connecting nozzle LW 9](/web/image/product.template/281261/image_128/%5B129383%5D%20RIEGLER%20Blow%20gun%2C%20plastic%2C%20rod%20end%2C%20and%20connecting%20nozzle%20LW%209?unique=5b22b5e)
|
Type number: BPKRSDUALW9 |
19.84 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

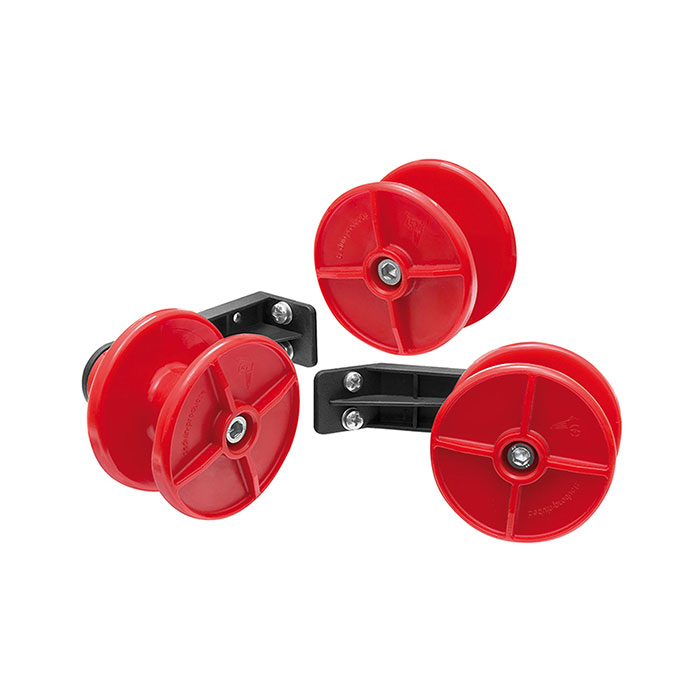

![[142249] RIEGLER Blow gun holder, incl. 2 brackets](/web/image/product.template/210704/image_128/%5B142249%5D%20RIEGLER%20Blow%20gun%20holder%2C%20incl.%202%20brackets?unique=cb15400)
|
Type number: BPH-1 |
10.42 € | |
![[101506] RIEGLER Mini pressure regulator, G 1/4 ET/ET, pre-set 2 bar](/web/image/product.template/169480/image_128/%5B101506%5D%20RIEGLER%20Mini%20pressure%20regulator%2C%20G%201-4%20ET-ET%2C%20pre-set%202%20bar?unique=878699a)
|
Type number: 638.42 |
22.93 € | |

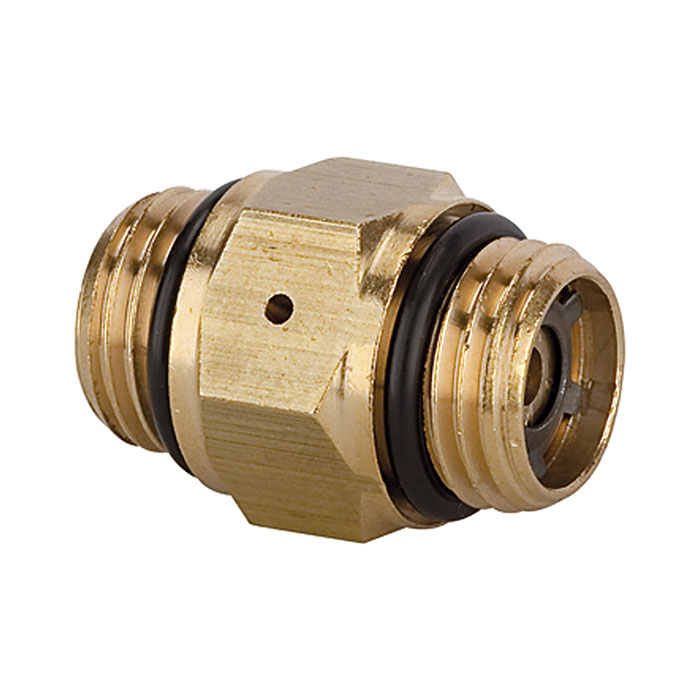

![[101507] RIEGLER Mini pressure regulator, G 1/4 ET/ET, pre-set 4 bar](/web/image/product.template/169481/image_128/%5B101507%5D%20RIEGLER%20Mini%20pressure%20regulator%2C%20G%201-4%20ET-ET%2C%20pre-set%204%20bar?unique=2f71856)
|
Type number: 638.44 |
22.93 € | |
![[101508] RIEGLER Mini pressure regulator, G 1/4 ET/ET, pre-set 6 bar](/web/image/product.template/169482/image_128/%5B101508%5D%20RIEGLER%20Mini%20pressure%20regulator%2C%20G%201-4%20ET-ET%2C%20pre-set%206%20bar?unique=9d59f6b)
|
Type number: 638.46 |
22.93 € | |

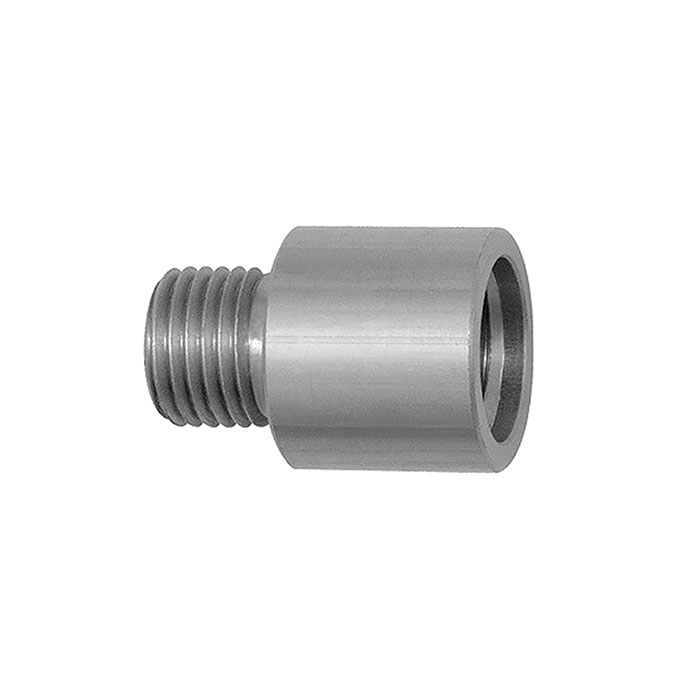

![[133178] RIEGLER Thread adapter, Aluminium, ET M12x1.25, IT G 1/4](/web/image/product.template/202828/image_128/%5B133178%5D%20RIEGLER%20Thread%20adapter%2C%20Aluminium%2C%20ET%20M12x1.25%2C%20IT%20G%201-4?unique=54eb1df)
|
Type number: 22.14 |
6.15 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

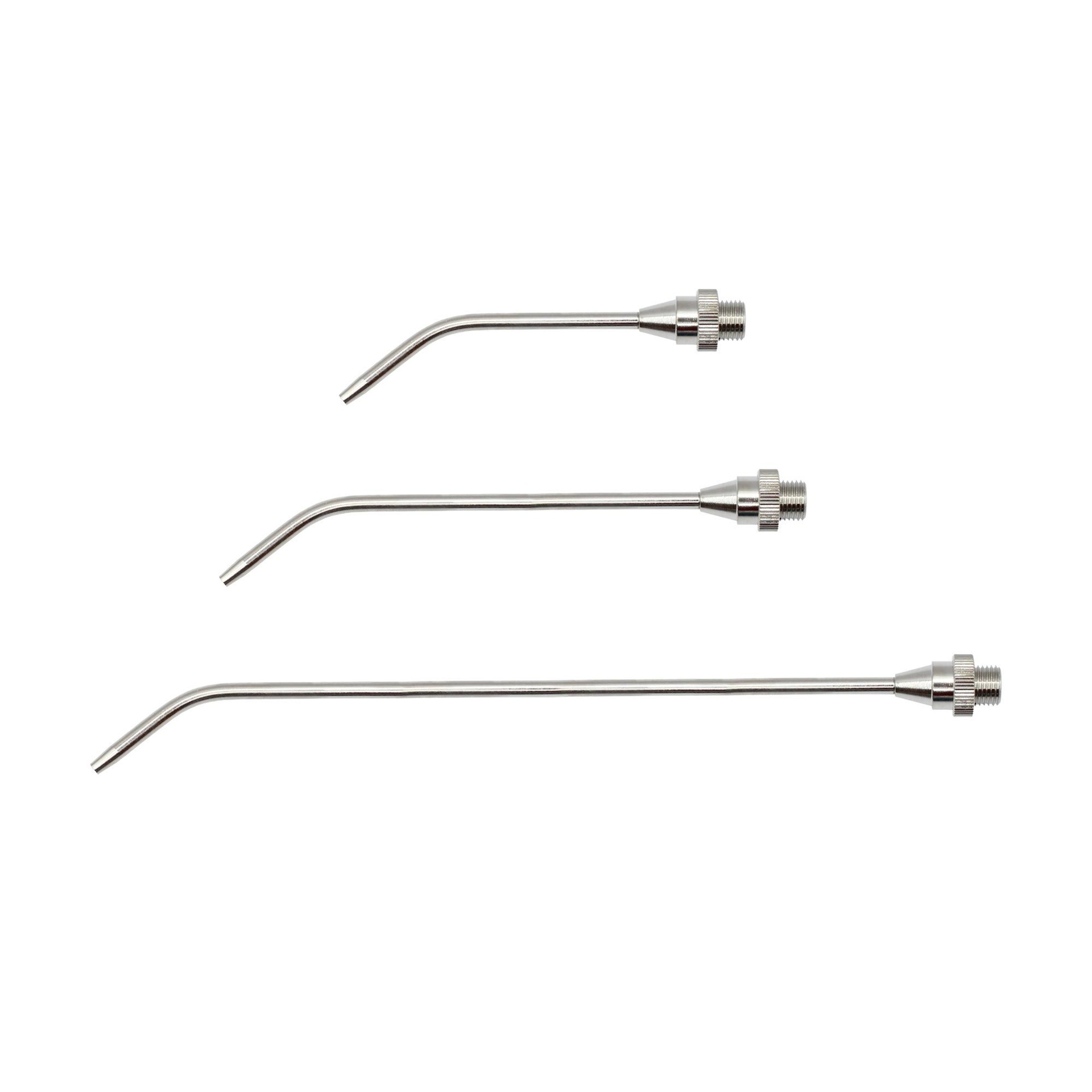

![[114347] RIEGLER Extension nozzle, 3.0 mm, nickel-plated brass, 100 mm long curved](/web/image/product.template/190862/image_128/%5B114347%5D%20RIEGLER%20Extension%20nozzle%2C%203.0%20mm%2C%20nickel-plated%20brass%2C%20100%20mm%20long%20curved?unique=791f5bd)
|
Type number: 22/100 |
5.37 € | |
