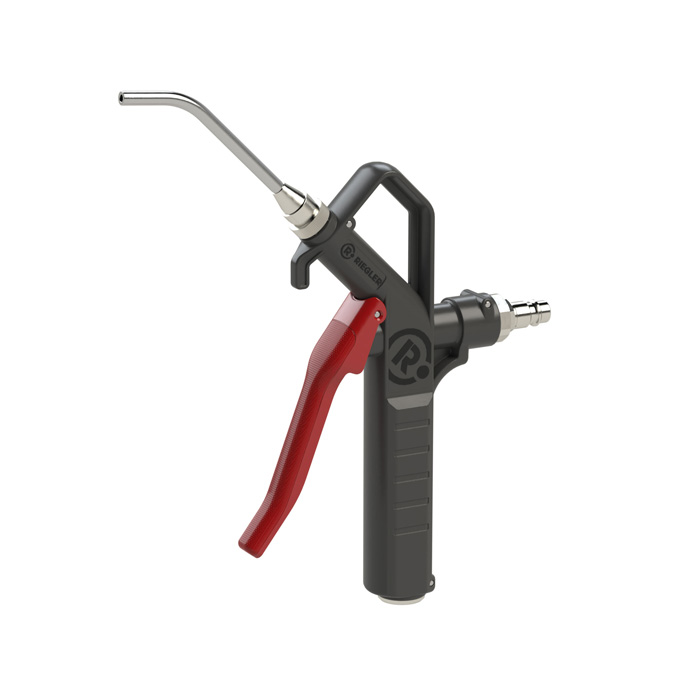

RIEGLER Blow gun, plastic, rod end, top connection, nipple NW 7.2
Type number: BPKRSDOANW72
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Metering blow gun, plastic, rod nozzle 100 mm, can be connected at the top, PN max. 12 bar, nipple NW 7.2
| Max. operating pressure | 12 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 90 °C |
| Nozzle | M12x1.25 |
| Connection type | Nipple NW 7.2 |
| Class name | PLUS |
| Nozzle length | 100 mm |
| Hand lever | Polyamide with glass fiber (PA6 GF30) |
| Gun body | Polypropylene (PP) |
| Nozzle type | Bar nozzle |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

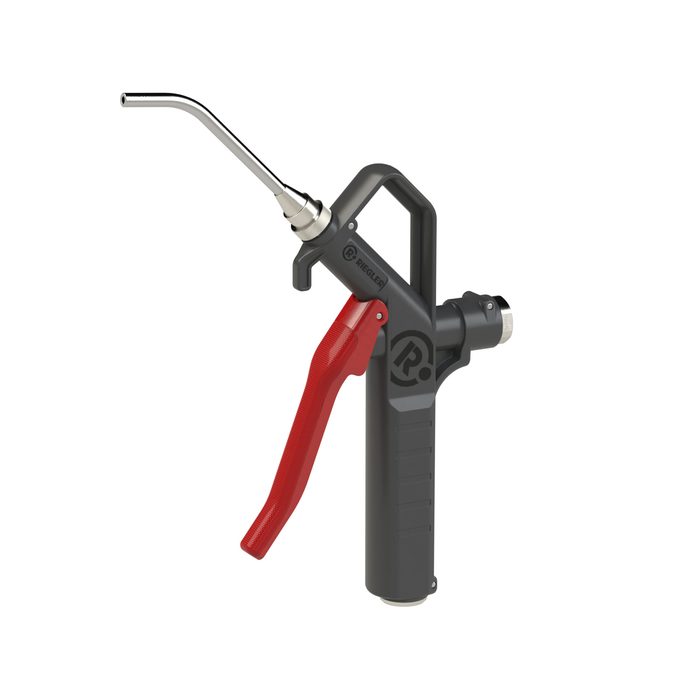

![[129385] RIEGLER Blow gun, plastic, rod end, top connection, G 1/4 female thread](/web/image/product.template/281263/image_128/%5B129385%5D%20RIEGLER%20Blow%20gun%2C%20plastic%2C%20rod%20end%2C%20top%20connection%2C%20G%201-4%20female%20thread?unique=faf4e71)
|
Type number: BPKRSDOAG14 |
18.77 € | |

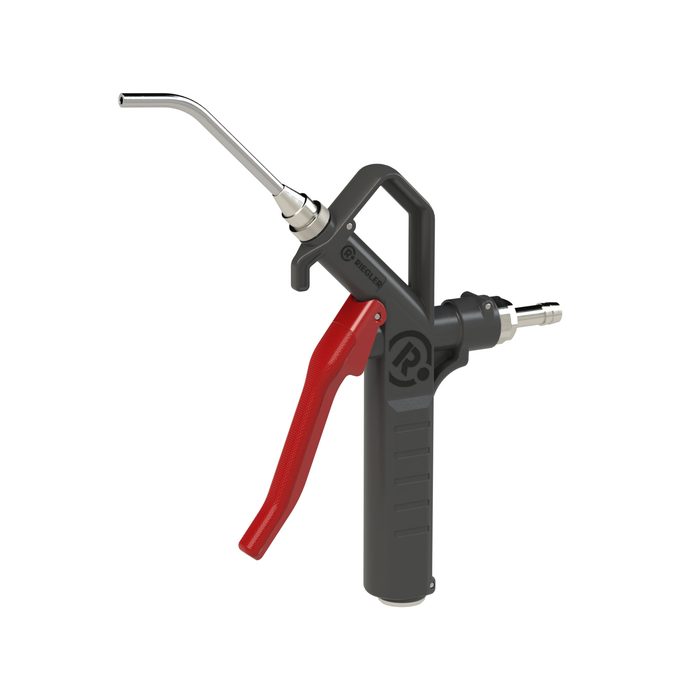

![[129389] RIEGLER Blow gun, plastic, rod end, top connection, nozzle LW 13](/web/image/product.template/281267/image_128/%5B129389%5D%20RIEGLER%20Blow%20gun%2C%20plastic%2C%20rod%20end%2C%20top%20connection%2C%20nozzle%20LW%2013?unique=5e43d22)
|
Type number: BPKRSDOALW13 |
19.84 € | |
![[129387] RIEGLER Blow gun, plastic, rod end, top connection, nozzle LW 6](/web/image/product.template/281265/image_128/%5B129387%5D%20RIEGLER%20Blow%20gun%2C%20plastic%2C%20rod%20end%2C%20top%20connection%2C%20nozzle%20LW%206?unique=efecee1)
|
Type number: BPKRSDOALW6 |
19.84 € | |
![[129388] RIEGLER Blow gun, plastic, rod end, top connection, nozzle LW 9](/web/image/product.template/281266/image_128/%5B129388%5D%20RIEGLER%20Blow%20gun%2C%20plastic%2C%20rod%20end%2C%20top%20connection%2C%20nozzle%20LW%209?unique=3c5c3ef)
|
Type number: BPKRSDOALW9 |
19.84 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[142249] RIEGLER Blow gun holder, incl. 2 brackets](/web/image/product.template/210704/image_128/%5B142249%5D%20RIEGLER%20Blow%20gun%20holder%2C%20incl.%202%20brackets?unique=83af15e)
|
Type number: BPH-1 |
10.42 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[114347] RIEGLER Extension nozzle, 3.0 mm, nickel-plated brass, 100 mm long curved](/web/image/product.template/190862/image_128/%5B114347%5D%20RIEGLER%20Extension%20nozzle%2C%203.0%20mm%2C%20nickel-plated%20brass%2C%20100%20mm%20long%20curved?unique=1ea2305)
|
Type number: 22/100 |
5.37 € | |
