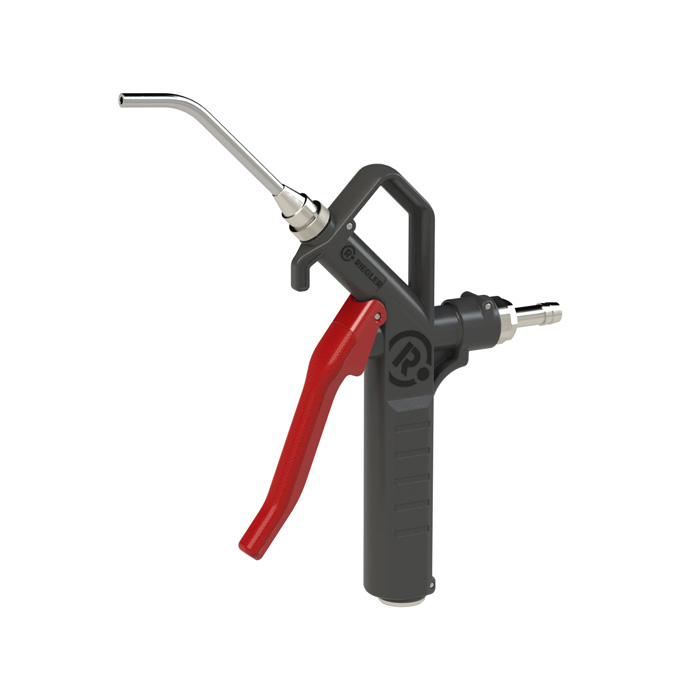

RIEGLER Blow gun, plastic, rod end, top connection, nozzle LW 6
Type number: BPKRSDOALW6
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Metering blow gun, plastic, rod nozzle 100 mm, can be connected at the top, PN max. 12 bar, nozzle LW 6
| Max. operating pressure | 12 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 90 °C |
| Nozzle | M12x1.25 |
| Connection type | Grommet LW 6 |
| Class name | PLUS |
| Nozzle length | 100 mm |
| Hand lever | Polyamide with glass fiber (PA6 GF30) |
| Gun body | Polypropylene (PP) |
| Nozzle type | Bar nozzle |
