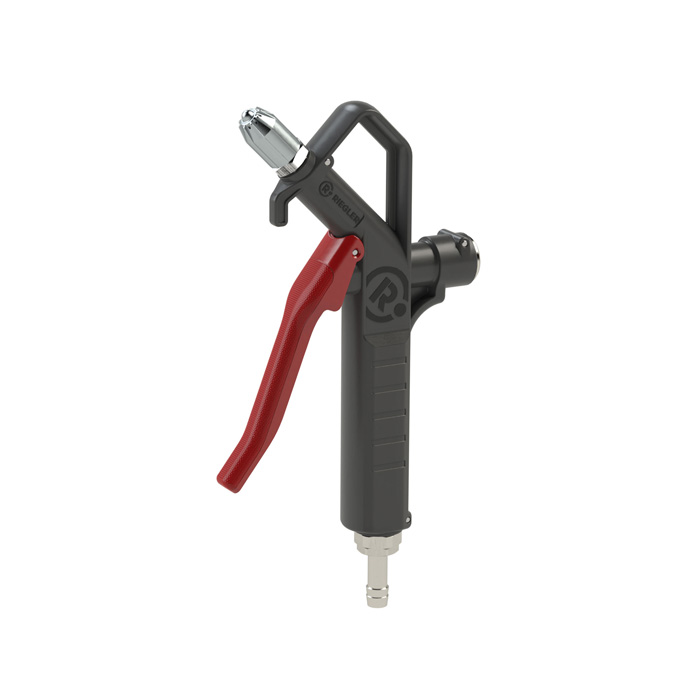

RIEGLER Blow gun, plastic, safety seal, and connecting nozzle LW 9
Type number: BPKRSHDUALW9
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Metering blow gun, plastic, safety nozzle, can be connected at the bottom, PN max. 12 bar, nozzle LW 9
| Max. operating pressure | 12 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 90 °C |
| Nozzle | M12x1.25 |
| Connection type | Grommet LW 9 |
| Class name | PLUS |
| Hand lever | Polyamide with glass fiber (PA6 GF30) |
| Gun body | Polypropylene (PP) |
| Nozzle type | Safety nozzle |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[129390] RIEGLER Blow gun, plastic, safety seal, and connectable, G 1/4 IG](/web/image/product.template/281268/image_128/%5B129390%5D%20RIEGLER%20Blow%20gun%2C%20plastic%2C%20safety%20seal%2C%20and%20connectable%2C%20G%201-4%20IG?unique=18899a5)
|
Type number: BPKRSHDUAG14 |
29.74 € | |
![[129394] RIEGLER Blow gun, plastic, safety seal, and connecting nozzle LW 13](/web/image/product.template/281272/image_128/%5B129394%5D%20RIEGLER%20Blow%20gun%2C%20plastic%2C%20safety%20seal%2C%20and%20connecting%20nozzle%20LW%2013?unique=1e3dd18)
|
Type number: BPKRSHDUALW13 |
30.67 € | |
![[129392] RIEGLER Blow gun, plastic, safety seal, and connecting nozzle LW 6](/web/image/product.template/281270/image_128/%5B129392%5D%20RIEGLER%20Blow%20gun%2C%20plastic%2C%20safety%20seal%2C%20and%20connecting%20nozzle%20LW%206?unique=e84a3db)
|
Type number: BPKRSHDUALW6 |
30.67 € | |

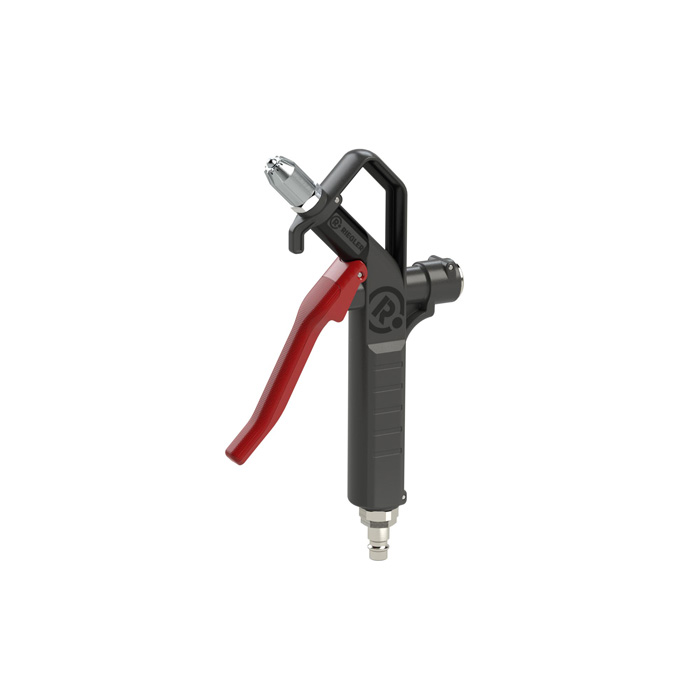

![[129391] RIEGLER Blow gun, safety nozzle, and connecting nipple NW 7.2](/web/image/product.template/281269/image_128/%5B129391%5D%20RIEGLER%20Blow%20gun%2C%20safety%20nozzle%2C%20and%20connecting%20nipple%20NW%207.2?unique=f191c68)
|
Type number: BPKRSHDUANW72 |
30.67 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[142249] RIEGLER Blow gun holder, incl. 2 brackets](/web/image/product.template/210704/image_128/%5B142249%5D%20RIEGLER%20Blow%20gun%20holder%2C%20incl.%202%20brackets?unique=83af15e)
|
Type number: BPH-1 |
10.42 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[129880] RIEGLER Low-noise round nozzle, M12x1.25, zinc, aluminum, nozzle outer diameter 17 mm](/web/image/product.template/267816/image_128/%5B129880%5D%20RIEGLER%20Low-noise%20round%20nozzle%2C%20M12x1.25%2C%20zinc%2C%20aluminum%2C%20nozzle%20outer%20diameter%2017%20mm?unique=5f07445)
|
Type number: DLRZAM12X125 |
11.34 € | |
