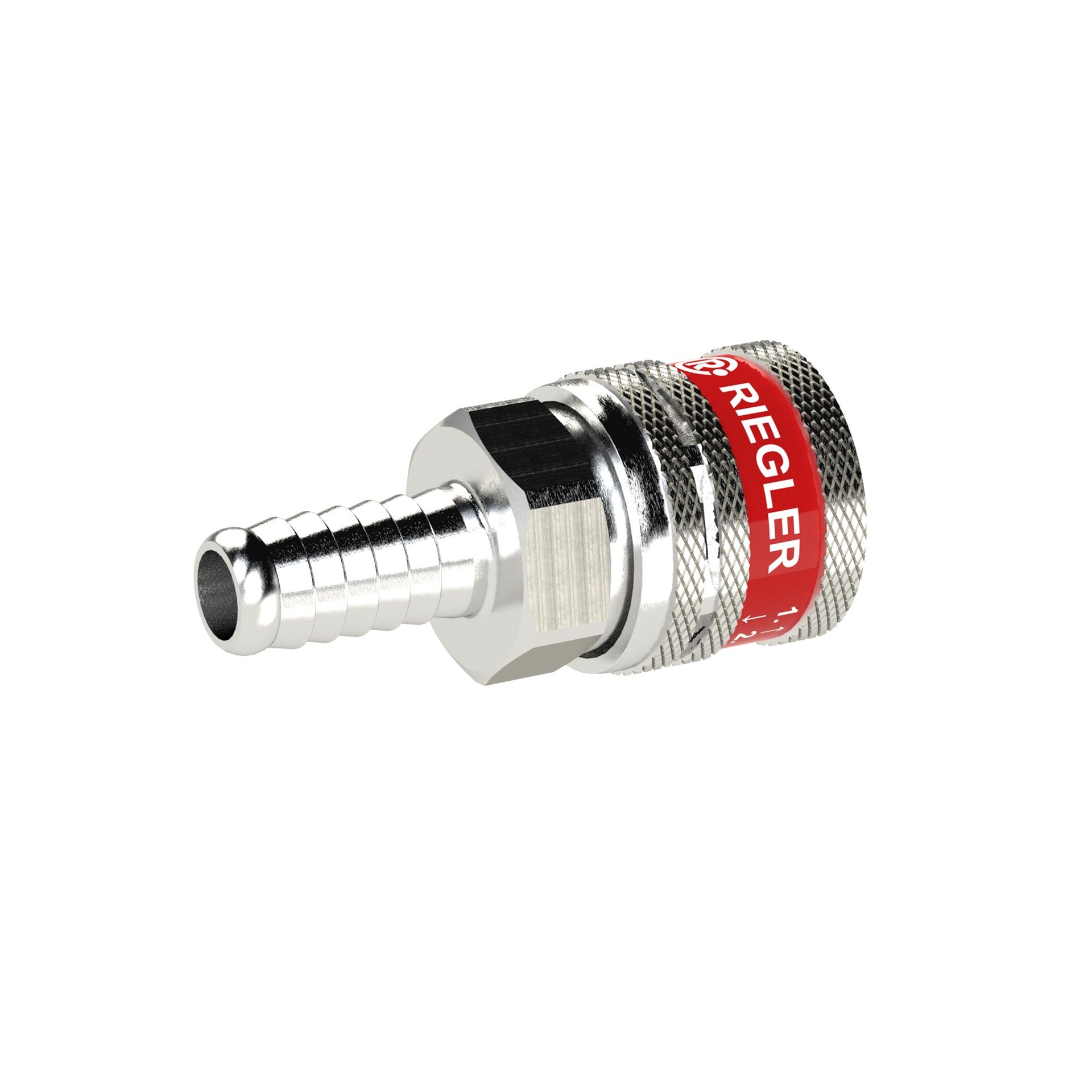

RIEGLER safety coupling NW 7.8, type SEK, nickel-plated brass, spout LW 13
Type number: SEKMSNLW13
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Nickel-plated brass safety coupling, for compressed air supply - type SEKMSNLW13
The RIEGLER safety coupling NW 7.8, type SEK, nickel-plated brass, nozzle LW 13 separates the compressed air line in two stages in a controlled manner and protects the operator. The housing is made of nickel-plated brass with NBR seals. The flow rate is 1350 l/min (air) (at 6 bar and Δp = 1 bar). Maximum safety thanks to controlled pressure relief.
Field of application
Typical areas of application: Compressed air applications with personal protection requirements.
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| Flow rate | 1350 l/min (air) |
| Operating pressure | -0.95 - 35 bar, max. 10 bar when engaging/disengaging |
| SW | 22 mm |
| NW | 7.8 |
| Length | 58 mm |
| CAS No. SVHC 1 | 7439-92-1 |
| Flow rate measurement | at 6 bar and Î"<sub>p</sub> = 1 bar |
| Class name | EASY |
| Ball | Stainless steel |
| Spring | Stainless steel |
| Valve body | Nickel-plated brass |
| Sleeve | Nickel-plated brass |
| Housing | Nickel-plated brass |
| Sealing material | NBR |
| Theme shop | SAFETY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

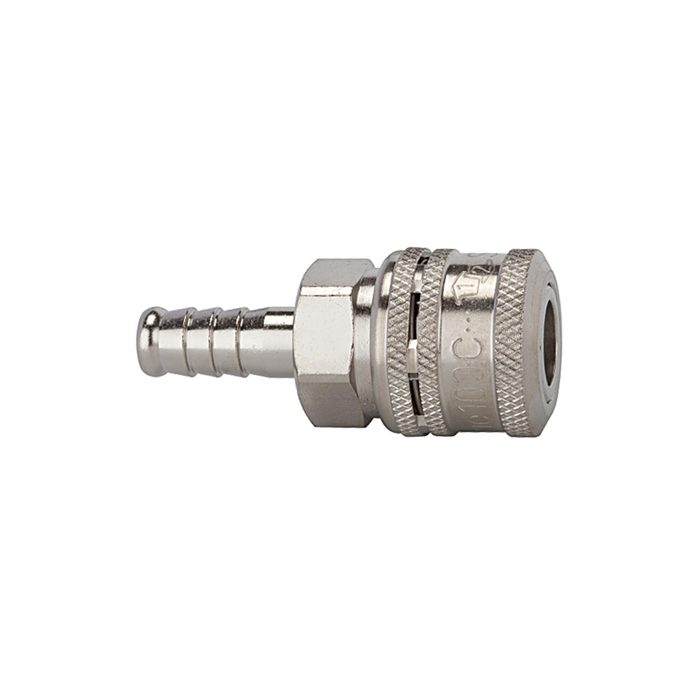

![[107539] RIEGLER Safety coupling NW 7.8, type SEK, nickel-plated brass, spout LW 10](/web/image/product.template/274655/image_128/%5B107539%5D%20RIEGLER%20Safety%20coupling%20NW%207.8%2C%20type%20SEK%2C%20nickel-plated%20brass%2C%20spout%20LW%2010?unique=cc3af48)
|
Type number: 249.104 |
15.46 € | |
![[107537] RIEGLER Safety coupling NW 7.8, type SEK, nickel-plated brass, spout LW 8](/web/image/product.template/274654/image_128/%5B107537%5D%20RIEGLER%20Safety%20coupling%20NW%207.8%2C%20type%20SEK%2C%20nickel-plated%20brass%2C%20spout%20LW%208?unique=9a50397)
|
Type number: 249.102 |
15.46 € | |
![[129972] RIEGLER Safety coupling NW 7,8, Typ SEK, nickel-plated brass, spout LW 6](/web/image/product.template/267892/image_128/%5B129972%5D%20RIEGLER%20Safety%20coupling%20NW%207%2C8%2C%20Typ%20SEK%2C%20nickel-plated%20brass%2C%20spout%20LW%206?unique=7038024)
|
Type number: SEKMSNLW6 |
15.91 € | |
![[129974] RIEGLER Safety coupling NW 7,8, Typ SEK, nickel-plated brass, spout LW 9](/web/image/product.template/267893/image_128/%5B129974%5D%20RIEGLER%20Safety%20coupling%20NW%207%2C8%2C%20Typ%20SEK%2C%20nickel-plated%20brass%2C%20spout%20LW%209?unique=0331d53)
|
Type number: SEKMSNLW9 |
15.91 € | |
