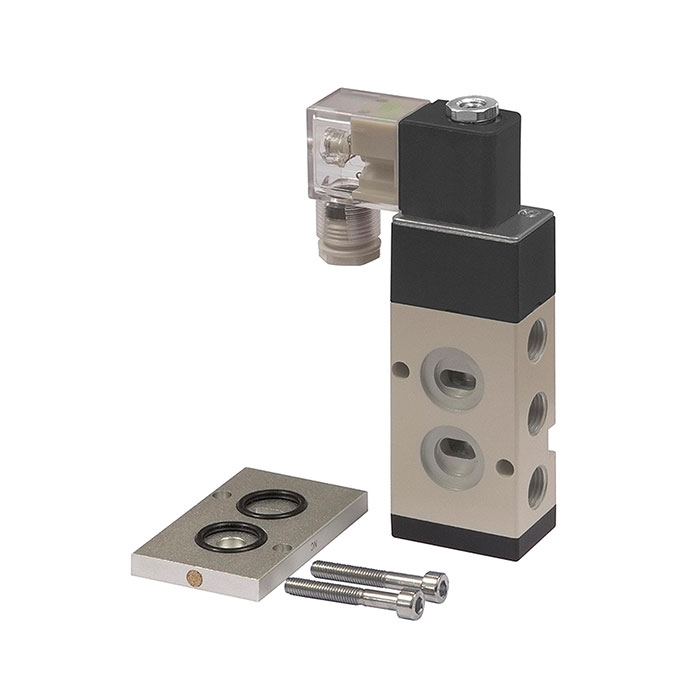

RIEGLER 3/2-5/2-way valve, NAMUR, G 1/4 (1), G 1/4 (3 + 5), 24 V DC
Type number: 552.02
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3/2-5/2-way valve made of aluminum, for pneumatic control, max. 8 bar - Type 552.02
The RIEGLER 3/2-5/2-way valve, NAMUR, G 1/4 (1), G 1/4 (3 + 5), 24 V DC controls the direction of the compressed air flow for targeted movement sequences. The housing is made of aluminum with NBR seals. The operating pressure range is 1.5 bar to 8 bar. The operating temperature is between -5 °C and 50 °C. Connection thread G 1/4 - suitable for common industry standards. Suitable for air, neutral gases (filtered). The flow rate is 1370 l/min. Operating voltage 24 V DC. Precise directional control for defined movement sequences.
Field of application
Typical areas of application: Pneumatic controls and mechanical engineering.
| Medium | Air, neutral gases (filtered) |
| Housing | Aluminum |
| Sealing material | NBR |
| Electrical connection | Device plug PG 9 with LED display |
| Working pressure min. | 1.5 bar |
| Working pressure max. | 8 bar |
| Operating temperature min. | -5 °C |
| Operating temperature max. | 50 °C |
| Manual override | latching/touching |
| Flow rate | 1370 l/min |
| DN | 8 |
| Connection | G 1/4 |
| Connection | G 1/4 |
| Connection | G 1/4 |
| Tension | 24 V DC |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[130277] RIEGLER 3/2-5/2-way valve NAMUR, G 1/4 (1), G 1/4 (3+5), 230 V, 50 Hz](/web/image/product.template/202584/image_128/%5B130277%5D%20RIEGLER%203-2-5-2-way%20valve%20NAMUR%2C%20G%201-4%20%281%29%2C%20G%201-4%20%283%2B5%29%2C%20230%20V%2C%2050%20Hz?unique=f5b7387)
|
Type number: 552.01 |
38.40 € | |

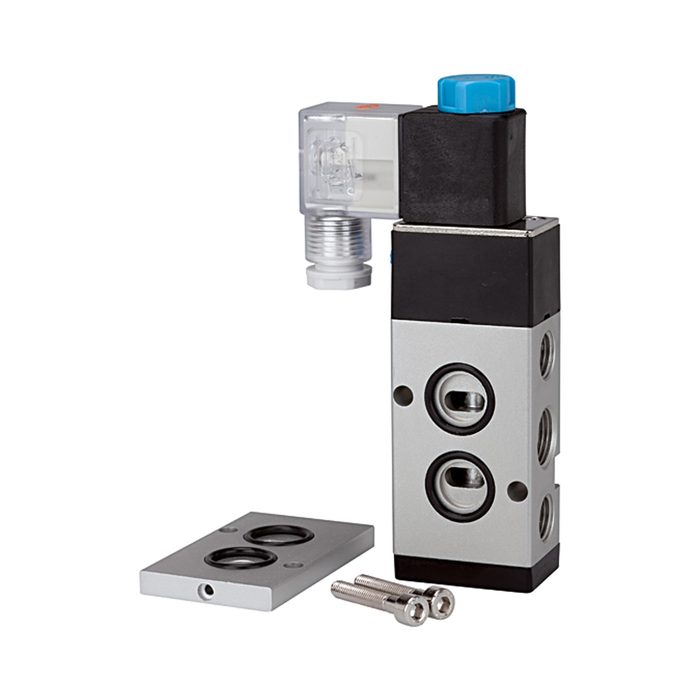

![[103651] RIEGLER 3/2-5/2-way valve NAMUR, G 3/8 (1), G 1/4 (3+5), 230 V, 50 Hz](/web/image/product.template/171613/image_128/%5B103651%5D%20RIEGLER%203-2-5-2-way%20valve%20NAMUR%2C%20G%203-8%20%281%29%2C%20G%201-4%20%283%2B5%29%2C%20230%20V%2C%2050%20Hz?unique=4cc444d)
|
Type number: 552.03 |
48.87 € | |
![[103652] RIEGLER 3/2-5/2-way valve, NAMUR, G 3/8 (1), G 1/4 (3 + 5), 24 V DC](/web/image/product.template/171614/image_128/%5B103652%5D%20RIEGLER%203-2-5-2-way%20valve%2C%20NAMUR%2C%20G%203-8%20%281%29%2C%20G%201-4%20%283%20%2B%205%29%2C%2024%20V%20DC?unique=681af5d)
|
Type number: 552.04 |
48.87 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

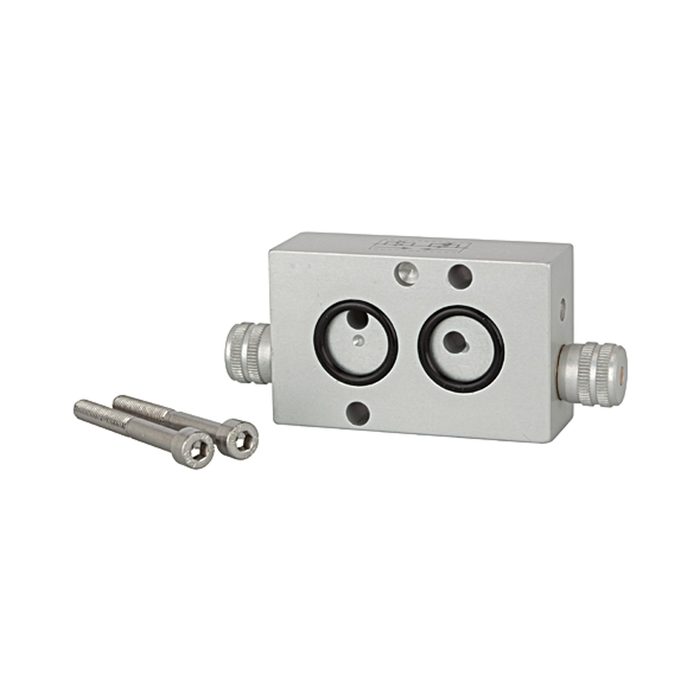

![[103663] RIEGLER Throttle plate for NAMUR valves, 3-way, Knurled screw](/web/image/product.template/171625/image_128/%5B103663%5D%20RIEGLER%20Throttle%20plate%20for%20NAMUR%20valves%2C%203-way%2C%20Knurled%20screw?unique=2c49b9b)
|
Type number: 551.41 |
101.15 € | |
![[103664] RIEGLER Throttle plate for NAMUR valves, 3-way, Screwdriver](/web/image/product.template/171626/image_128/%5B103664%5D%20RIEGLER%20Throttle%20plate%20for%20NAMUR%20valves%2C%203-way%2C%20Screwdriver?unique=1eeeafa)
|
Type number: 551.42 |
101.15 € | |

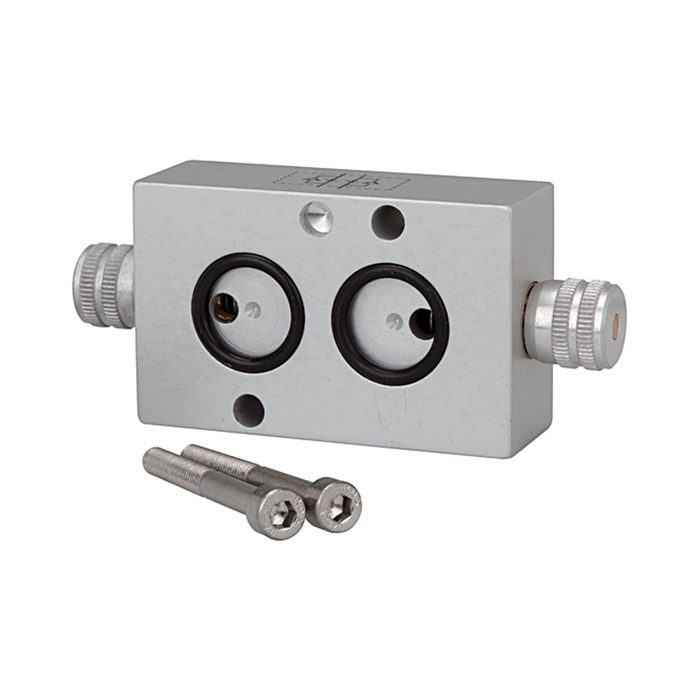

![[103665] RIEGLER Throttle plate for NAMUR valves, 5-way, Knurled screw](/web/image/product.template/171627/image_128/%5B103665%5D%20RIEGLER%20Throttle%20plate%20for%20NAMUR%20valves%2C%205-way%2C%20Knurled%20screw?unique=d6c1f93)
|
Type number: 551.51 |
93.64 € | |

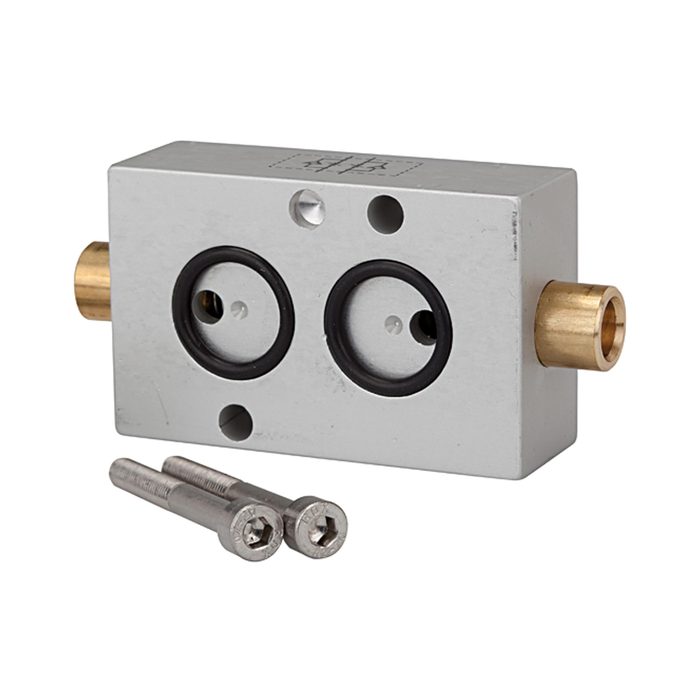

![[103666] RIEGLER Throttle plate for NAMUR valves, 5-way, Screwdriver](/web/image/product.template/171628/image_128/%5B103666%5D%20RIEGLER%20Throttle%20plate%20for%20NAMUR%20valves%2C%205-way%2C%20Screwdriver?unique=77dccbe)
|
