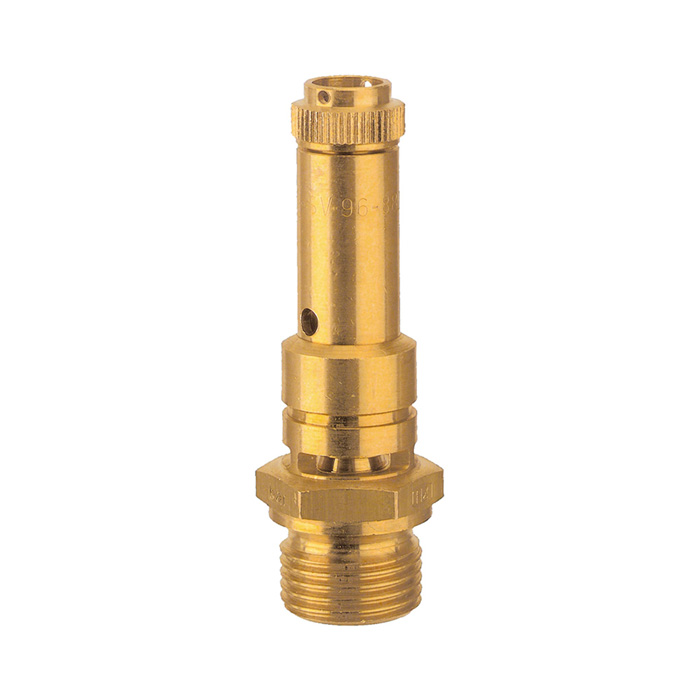

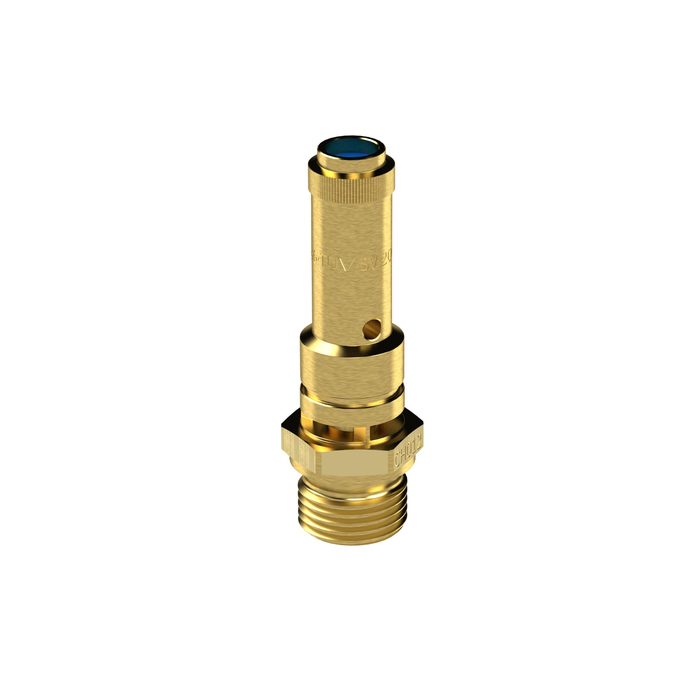

RIEGLER Safety valve DN 8, brass, G 1/2, response pressure 38 bar
Type number: 226.03-38,0
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
131247EAN :
4047322451673Category :
Safety valves & pressure relief valvesWeight :
0.14 kgSafety valve DN 8, brass, operating temperature -25 °C to 180 °C, G 1/2, SW 24, response pressure 38 bar, type-tested
| Housing | Brass |
| Sealing material | FKM |
| Operating pressure min. | 0.2 bar |
| Max. operating pressure | 50 bar |
| Operating temperature min. | -25 °C |
| Operating temperature max. | 180 °C |
| Thread | G 1/2 |
| SW | 24 mm |
| Response pressure min. | 38 bar |
| A | 24 mm |
| C | 75 mm |
| D | 14 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| Pressure spring | Stainless steel |
| REACH Info | contains SVHC substance |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
| Stand Material Compliance | 44621 |
