RIEGLER Mini ball valve "valve line", MS nickel-plated, redary handle, G 1/4
Type number: 373.01-E-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Mini ball valve "valve line" made of nickel-plated brass, for industrial systems, max. 10 bar - Type 373.01-E-1
The RIEGLER mini ball valve "valve line", MS nickel-plated, rotary handle, G 1/4 female thread opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of nickel-plated brass. Designed for a maximum operating pressure of 10 bar. The permissible medium temperature is between -20 °C and 90 °C. Connection thread G 1/4 IG - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Share of SVHC substance in % for RoHS | 0.04 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Exception | 6c |
| B | 27 mm |
| Max. operating pressure | 10 bar |
| CAS No. SVHC 1 | 7439-92-1 |
| DN | 8 |
| Rotary handle | Aluminum |
| Housing | Nickel-plated brass |
| Thread | G 1/4 FEMALE THREAD |
| Thread material | Brass bright |
| Class name | EASY |
| Ball | Nickel-plated brass |
| Ball seal | PTFE |
| L | 39.5 mm |
| Material identification | CW617N |
| Medium temperature max. | 90 °C |
| Medium temperature min. | -20 °C |
| REACH Info | contains SVHC substance |
| REACH SVHC1 Substance Name | Lead |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| Spindle seal | EPDM |
| SW | 21 mm |
| Ambient temperature max. | 90 °C |
| Ambient temperature min. | -20 °C |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

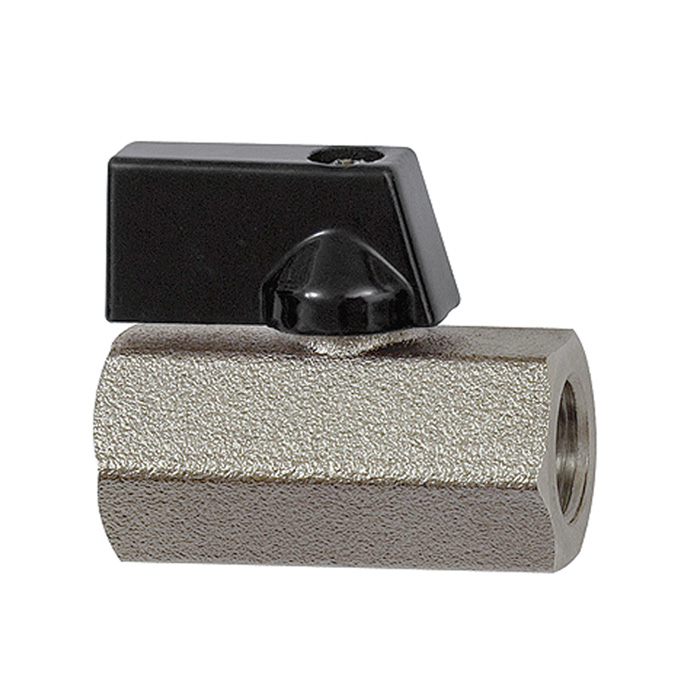

![[132412] RIEGLER Mini ball valve "valve line", MS nickel-plated, rotary handle, G 1/2 female thread](/web/image/product.template/278478/image_128/%5B132412%5D%20RIEGLER%20Mini%20ball%20valve%20%22valve%20line%22%2C%20MS%20nickel-plated%2C%20rotary%20handle%2C%20G%201-2%20female%20thread?unique=3cf417f)
|
Type number: 373.03-E-1 |
4.63 € | |
![[132456] RIEGLER Mini ball valve "valve line", MS nickel-plated, rotary handle, G 1/2 IG/AG](/web/image/product.template/278481/image_128/%5B132456%5D%20RIEGLER%20Mini%20ball%20valve%20%22valve%20line%22%2C%20MS%20nickel-plated%2C%20rotary%20handle%2C%20G%201-2%20IG-AG?unique=7ff0522)
|
Type number: 373.33-E-1 |
4.28 € | |
![[132419] RIEGLER Mini ball valve "valve line", MS nickel-plated, rotary handle, G 1/4 IG/AG](/web/image/product.template/278479/image_128/%5B132419%5D%20RIEGLER%20Mini%20ball%20valve%20%22valve%20line%22%2C%20MS%20nickel-plated%2C%20rotary%20handle%2C%20G%201-4%20IG-AG?unique=4d54a29)
|
Type number: 373.11-E-1 |
3.57 € | |
![[132381] RIEGLER Mini ball valve "valve line", MS nickel-plated, rotary handle, G 3/8 female thread](/web/image/product.template/278477/image_128/%5B132381%5D%20RIEGLER%20Mini%20ball%20valve%20%22valve%20line%22%2C%20MS%20nickel-plated%2C%20rotary%20handle%2C%20G%203-8%20female%20thread?unique=cda09d6)
|
Type number: 373.02-E-1 |
3.92 € | |

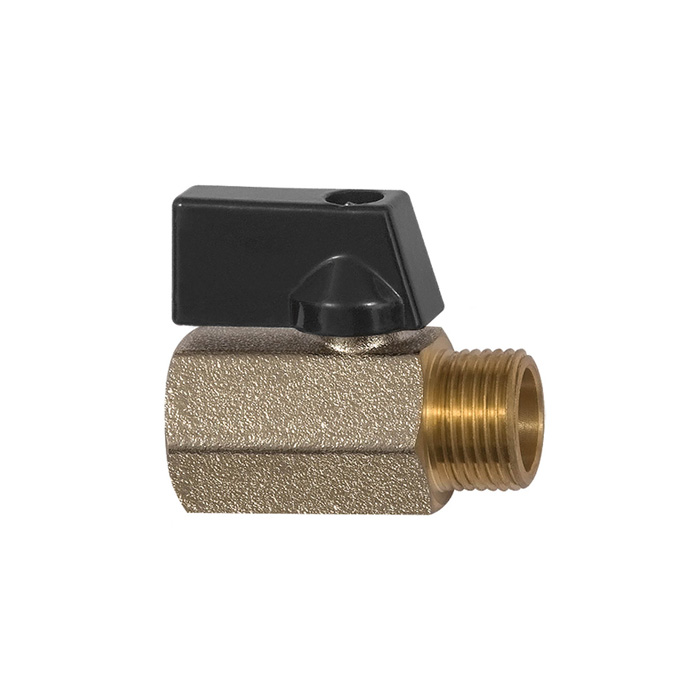

![[132445] RIEGLER Mini ball valve "valve line", MS nickel-plated, rotary handle, G 3/8 IG/AG](/web/image/product.template/278480/image_128/%5B132445%5D%20RIEGLER%20Mini%20ball%20valve%20%22valve%20line%22%2C%20MS%20nickel-plated%2C%20rotary%20handle%2C%20G%203-8%20IG-AG?unique=319ca89)
|
