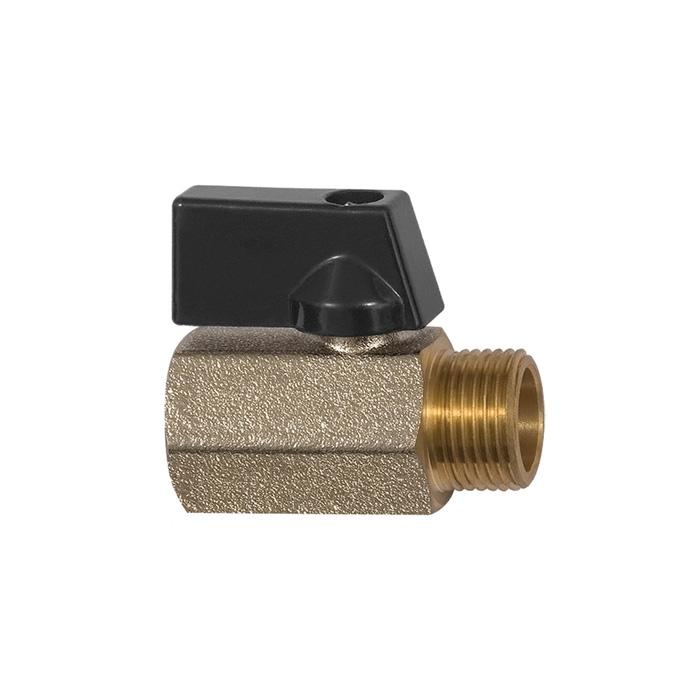

RIEGLER Mini ball valve "valve line", MS nickel-plated, rotary handle, G 1/4 IG/AG
Type number: 373.11-E-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Mini ball valve "valve line" made of nickel-plated brass, for industrial systems, max. 10 bar - Type 373.11-E-1
The RIEGLER mini ball valve "valve line", MS nickel-plated, rotary handle, G 1/4 female/male opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of nickel-plated brass. Designed for a maximum operating pressure of 10 bar. The permissible medium temperature is between -20 °C and 90 °C. Connection thread G 1/4 IG/AG - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Nickel-plated brass |
| Max. operating pressure | 10 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 90 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 90 °C |
| Ball | Nickel-plated brass |
| Ball seal | PTFE |
| Spindle seal | EPDM |
| Rotary handle | Aluminum |
| Thread | G 1/4 IG/AG |
| DN | 8 |

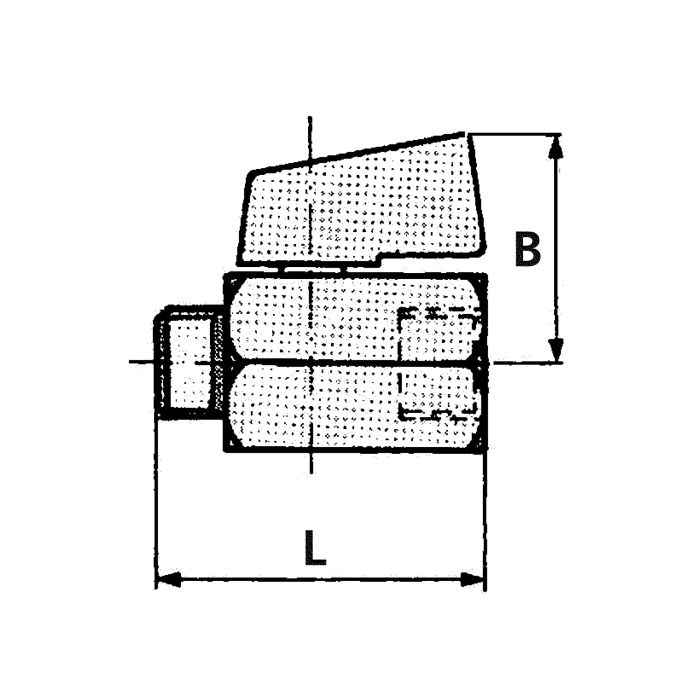

| SW | 21 mm |
| B | 27 mm |
| L | 39.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Thread material | Brass bright |
| Class name | EASY |
| Stand Material Compliance | 45098 |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

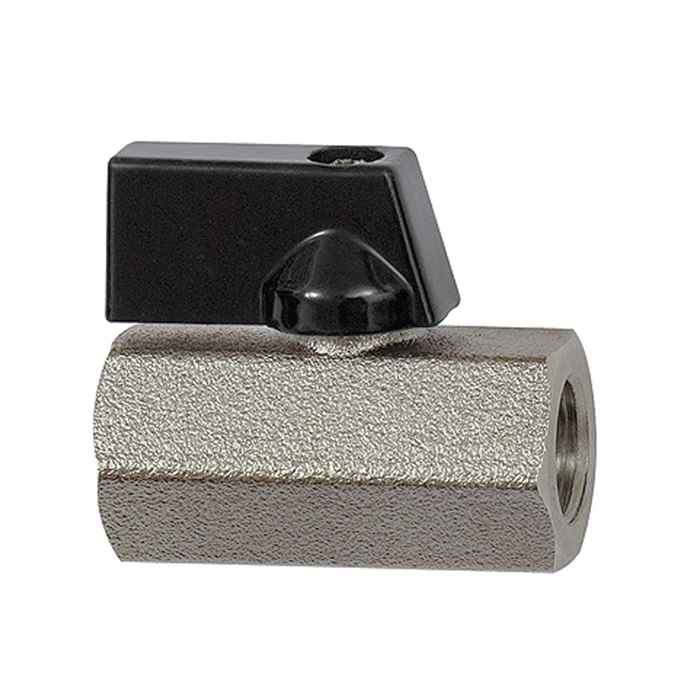

![[132377] RIEGLER Mini ball valve "valve line", MS nickel-plated, redary handle, G 1/4](/web/image/product.template/268048/image_128/%5B132377%5D%20RIEGLER%20Mini%20ball%20valve%20%22valve%20line%22%2C%20MS%20nickel-plated%2C%20redary%20handle%2C%20G%201-4?unique=6419265)
|
