RIEGLER Digital pressure gauge, Measurement range 0 - 10 bar, R 1/4 ET
Type number: DIM-10-F4
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Digital pressure gauge made of plastic, for pressure measurement, R 1/4 male - M5 female - type DIM-10-F4
The RIEGLER digital pressure gauge, measuring range 0 - 10 bar, R 1/4 AG measures pressure or temperature reliably and precisely. The housing is made of plastic. The operating temperature is between 0 °C and 50 °C. Connection thread R 1/4 male - M5 female - suitable for common industry standards. Protection class IP 40 / IP 65 (with hose). Reliable measured values for safe processes.
Field of application
Typical areas of application: Pressure monitoring and temperature control.
| Housing | Plastic |
| Protection class | IP 40 / IP 65 (with hose) |
| Display | 3-digit 7-segment LCD display |
| Medium temperature min. | 0 °C |
| Medium temperature max. | 50 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Wetted parts | MSV |
| Power supply | Battery CR2032 Lithium |
| Accuracy | ± 0.2% F.S. ± 1 digit |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 50 °C |
| Thread | R 1/4 AG - M5 IG |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 10 |
| Height | 36.8 mm |
| Width | 30 mm |
| Length | 30 mm |
| Description of the | without backlight |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

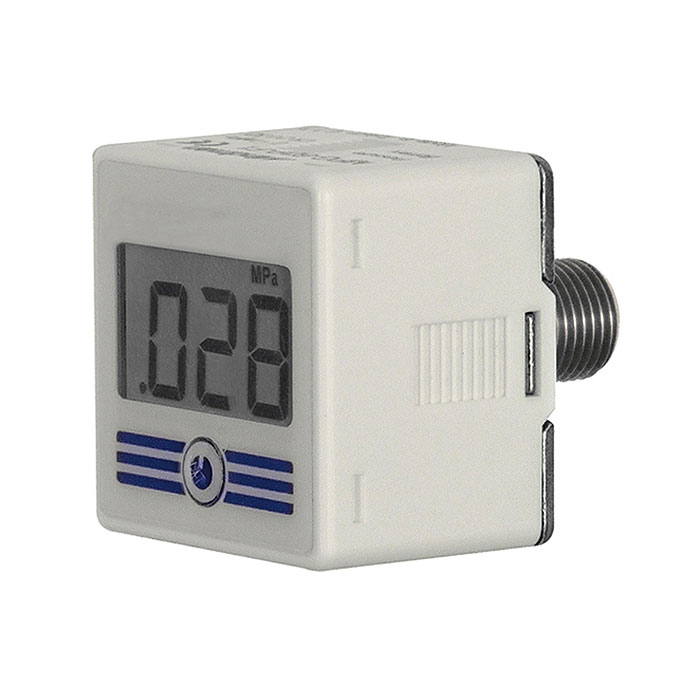

![[133383] RIEGLER Digital pressure gauge, Background lighting, 0 - 10 bar, R 1/4 ET](/web/image/product.template/202861/image_128/%5B133383%5D%20RIEGLER%20Digital%20pressure%20gauge%2C%20Background%20lighting%2C%200%20-%2010%20bar%2C%20R%201-4%20ET?unique=c685e32)
|
Type number: DIMH-10-F4 |
35.97 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[133384] RIEGLER Metal mounting bracket, horizontal](/web/image/product.template/202862/image_128/%5B133384%5D%20RIEGLER%20Metal%20mounting%20bracket%2C%20horizontal?unique=885ab8c)
|
Type number: DIM10-BFWW |
3.51 € | |
![[133385] RIEGLER Metal mounting bracket, vertical](/web/image/product.template/202863/image_128/%5B133385%5D%20RIEGLER%20Metal%20mounting%20bracket%2C%20vertical?unique=18689db)
|
Type number: DIM10-BFWS |
3.51 € | |

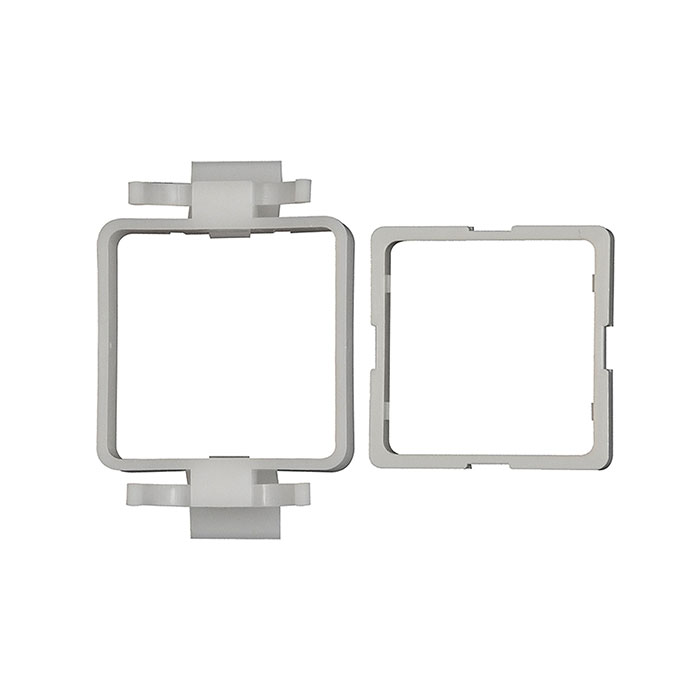

![[133386] RIEGLER Plastic installation frame](/web/image/product.template/202864/image_128/%5B133386%5D%20RIEGLER%20Plastic%20installation%20frame?unique=c2fffed)
|
Type number: DIM10-EBR |
4.62 € | |

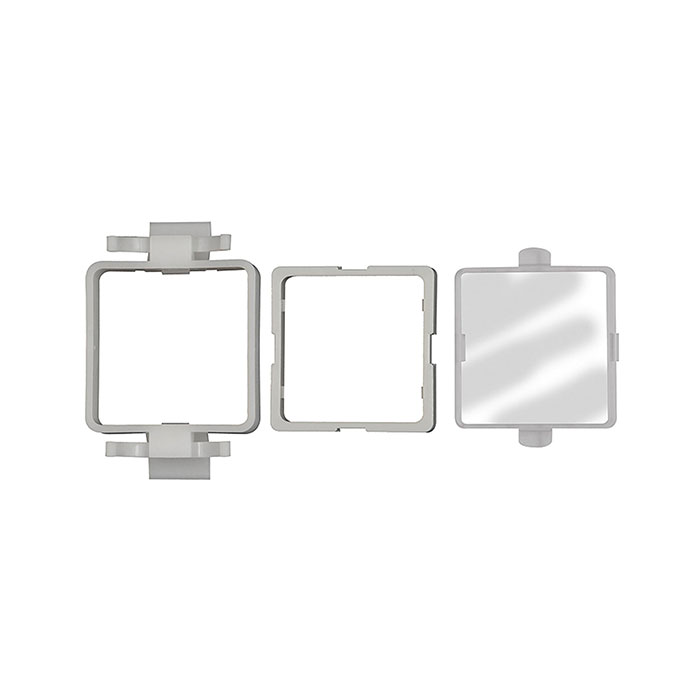

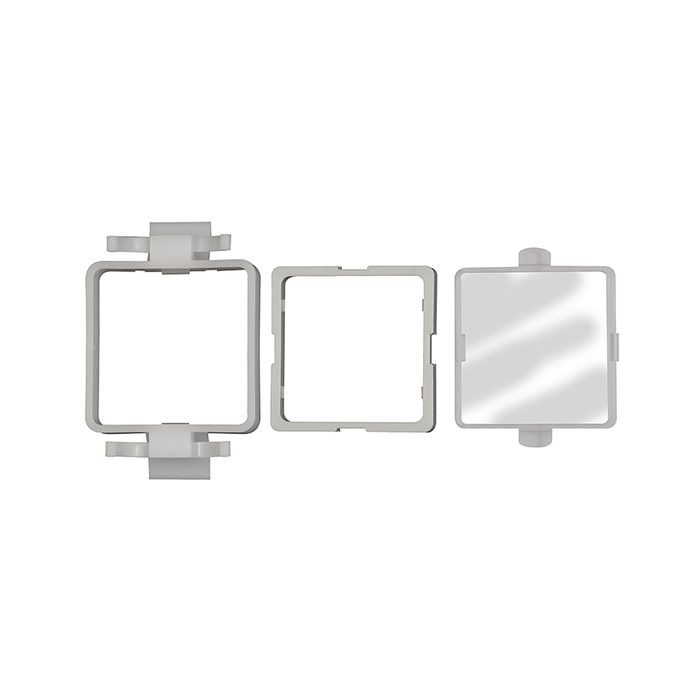

![[133387] RIEGLER Installation frame with plastic protective cover](/web/image/product.template/202865/image_128/%5B133387%5D%20RIEGLER%20Installation%20frame%20with%20plastic%20protective%20cover?unique=56d741d)
|
