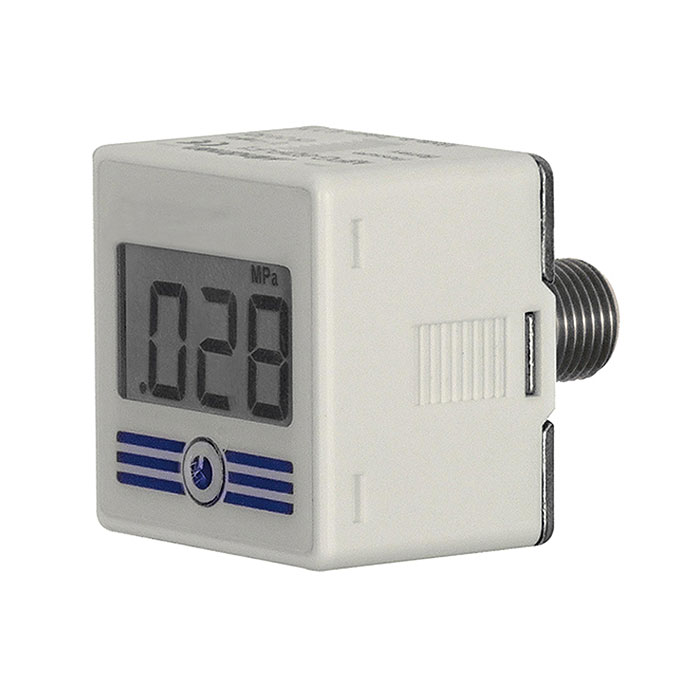

RIEGLER Digital pressure gauge, Background lighting, 0 - 10 bar, R 1/4 ET
Type number: DIMH-10-F4
EAN: 4047322477802
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Digital pressure gauge with backlight, measuring range 0 - 10 bar, R 1/4 AG - M5 IG
| Housing | Plastic |
| Protection class | IP 40 / IP 65 (with hose) |
| Display | 3-digit 7-segment LCD display |
| Medium temperature min. | 0 °C |
| Medium temperature max. | 50 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Wetted parts | MSV |
| Power supply | Battery CR2032 Lithium |
| Accuracy | ± 2% F.S. ± 1 digit |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 50 °C |
| Thread | R 1/4 AG - M5 IG |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 10 |
| Height | 36.8 mm |
| Width | 30 mm |
| Length | 30 mm |
| Description of the | with backlight |
| Class name | EASY |
