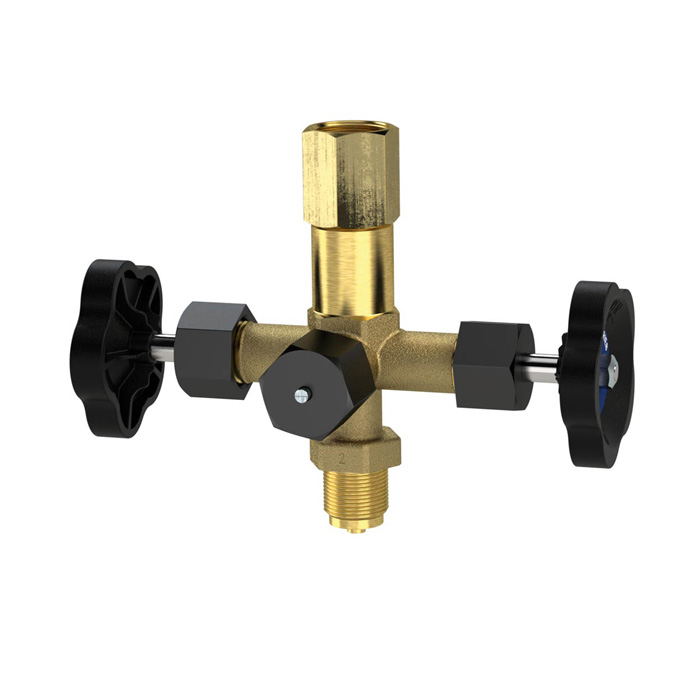

RIEGLER Mano-Dop. shut-off valve, spigot-turnable socket G 1/2, brass
Type number: MAVM12B
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
143402EAN :
4047322565516Category :
Accessories for Pressure GaugesWeight :
0.99 kgRIEGLER Mano-Dop. shut-off valves made of brass, for pressure measurement, G 1/2 - type MAVM12B
The RIEGLER Mano-Dop. shut-off valve, spigot-rotatable socket G 1/2, brass supplements pressure gauges with protection and connection functions. The housing is made of brass with PTFE seals. The operating temperature is between -10 °C and 120 °C. G 1/2 connection thread - suitable for common industry standards. Protection and functional extension for pressure gauges.
Field of application
Typical areas of application: Professional pressure gauge installation.
| Housing | Brass |
| Sealing material | PTFE |
| Handwheel | Plastic |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 120 °C |
| Thread | G 1/2 |
| SW | 27 mm |
| Material | Brass |
| PN | 250 bar |
| Execution | Spigot / rotatable socket |
| Valve cone | Stainless steel |
| Union nut | Steel |
