RIEGLER Fitting 341, conical sealing, R 1 1/4, Rp 1 1/4
Type number: TFV 341-114-S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Verschr. 341, konisch dicht., R 1 1/4, Rp 1 1/4, Temperg. schw., Betriebstemperatur -20 °C bis 300 °C, ISO 7-1
| Temperature range min. | -20 °C |
| Temperature range max. | 300 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | black |
| Thread | Rp/R 1 1/4 |
| Thread standard | according to ISO 7-1 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

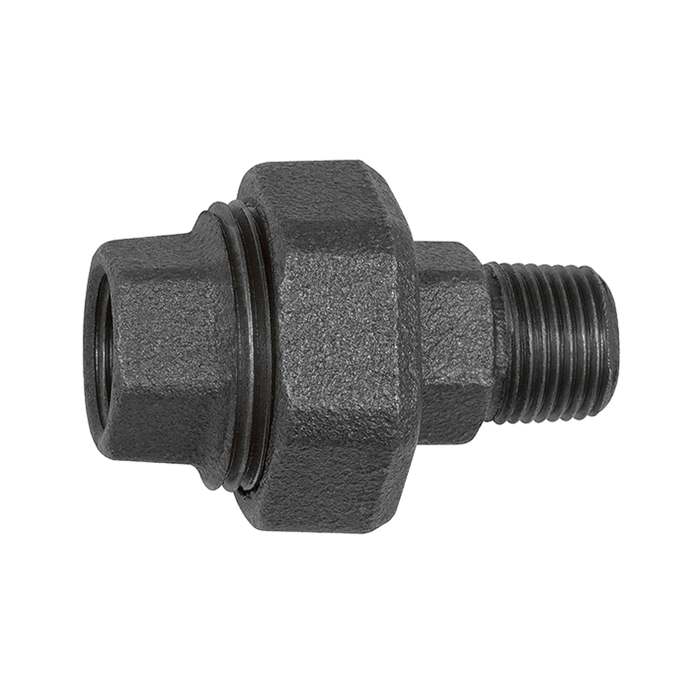

![[133834] RIEGLER Fitting 341, conical sealing, R 1 1/2, Rp 1 1/2](/web/image/product.template/203202/image_128/%5B133834%5D%20RIEGLER%20Fitting%20341%2C%20conical%20sealing%2C%20R%201%201-2%2C%20Rp%201%201-2?unique=017a80c)
|
Type number: TFV 341-112-S |
9.60 € | |
![[133830] RIEGLER Fitting 341, conical sealing, R 1/2, Rp 1/2](/web/image/product.template/203198/image_128/%5B133830%5D%20RIEGLER%20Fitting%20341%2C%20conical%20sealing%2C%20R%201-2%2C%20Rp%201-2?unique=a872431)
|
Type number: TFV 341-12-S |
3.67 € | |
![[133832] RIEGLER Fitting 341, conical sealing, R 1, Rp 1](/web/image/product.template/203200/image_128/%5B133832%5D%20RIEGLER%20Fitting%20341%2C%20conical%20sealing%2C%20R%201%2C%20Rp%201?unique=f8edf6c)
|
Type number: TFV 341-10-S |
5.41 € | |
![[133836] RIEGLER Fitting 341, conical sealing, R 2 1/2, Rp 2 1/2](/web/image/product.template/203204/image_128/%5B133836%5D%20RIEGLER%20Fitting%20341%2C%20conical%20sealing%2C%20R%202%201-2%2C%20Rp%202%201-2?unique=f88d3ac)
|
Type number: TFV 341-212-S |
31.89 € | |
![[133835] RIEGLER Fitting 341, conical sealing, R 2, Rp 2](/web/image/product.template/203203/image_128/%5B133835%5D%20RIEGLER%20Fitting%20341%2C%20conical%20sealing%2C%20R%202%2C%20Rp%202?unique=6455f84)
|
Type number: TFV 341-20-S |
15.01 € | |
![[133831] RIEGLER Fitting 341, conical sealing, R 3/4, Rp 3/4](/web/image/product.template/203199/image_128/%5B133831%5D%20RIEGLER%20Fitting%20341%2C%20conical%20sealing%2C%20R%203-4%2C%20Rp%203-4?unique=2d41840)
|
Type number: TFV 341-34-S |
4.61 € | |
![[133829] RIEGLER Fitting 341, conical sealing, R 3/8, Rp 3/8](/web/image/product.template/203197/image_128/%5B133829%5D%20RIEGLER%20Fitting%20341%2C%20conical%20sealing%2C%20R%203-8%2C%20Rp%203-8?unique=27affd7)
|
Type number: TFV 341-38-S |
3.80 € | |
![[133837] RIEGLER Fitting 341, conical sealing, R 3, Rp 3](/web/image/product.template/203205/image_128/%5B133837%5D%20RIEGLER%20Fitting%20341%2C%20conical%20sealing%2C%20R%203%2C%20Rp%203?unique=2d093ae)
|
Type number: TFV 341-30-S |
49.99 € | |
