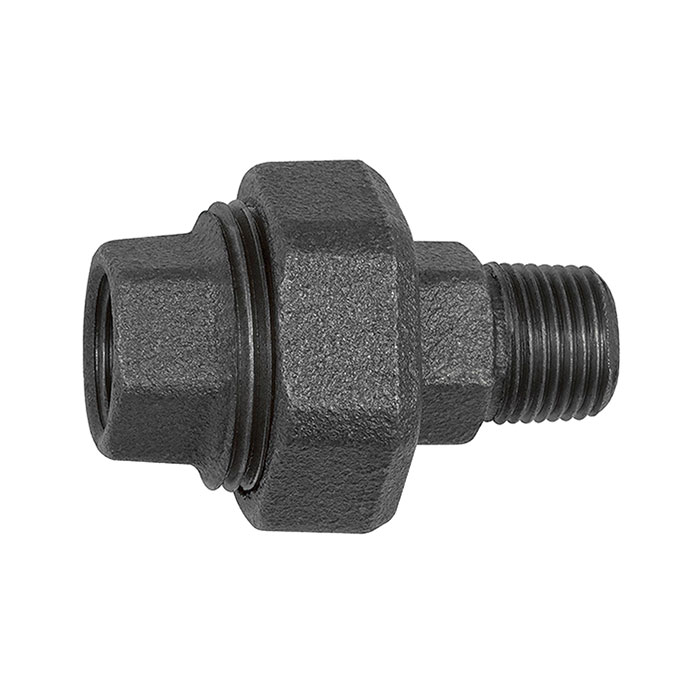

RIEGLER Fitting 341, conical sealing, R 2 1/2, Rp 2 1/2
Type number: TFV 341-212-S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Fitting 341 conical tight. R 2 1/2 made of black malleable cast iron B350-10 Design Symbol A - Type TFV 341-212-S
The RIEGLER union 341 conical tight. R 2 1/2, Rp 2 1/2 malleable iron black connects pipes permanently and resiliently - particularly robust. The housing is made of black malleable cast iron B350-10 design symbol A. The temperature range is between -20 °C and 300 °C. Connection thread Rp/R 2 1/2 (to ISO 7-1) - suitable for common industry standards. Extremely robust and durable - even at high temperatures.
Field of application
Typical areas of application: Piping systems in industry, building services and compressed air distribution.
| Temperature range min. | -20 °C |
| Temperature range max. | 300 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | black |
| Thread | Rp/R 2 1/2 |
| Thread standard | according to ISO 7-1 |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[133834] RIEGLER Fitting 341, conical sealing, R 1 1/2, Rp 1 1/2](/web/image/product.template/203202/image_128/%5B133834%5D%20RIEGLER%20Fitting%20341%2C%20conical%20sealing%2C%20R%201%201-2%2C%20Rp%201%201-2?unique=0ad859b)
|
Type number: TFV 341-112-S |
9.60 € | |
![[133833] RIEGLER Fitting 341, conical sealing, R 1 1/4, Rp 1 1/4](/web/image/product.template/203201/image_128/%5B133833%5D%20RIEGLER%20Fitting%20341%2C%20conical%20sealing%2C%20R%201%201-4%2C%20Rp%201%201-4?unique=d341b0c)
|
Type number: TFV 341-114-S |
7.44 € | |
![[133830] RIEGLER Fitting 341, conical sealing, R 1/2, Rp 1/2](/web/image/product.template/203198/image_128/%5B133830%5D%20RIEGLER%20Fitting%20341%2C%20conical%20sealing%2C%20R%201-2%2C%20Rp%201-2?unique=3bc1f3e)
|
Type number: TFV 341-12-S |
3.67 € | |
![[133832] RIEGLER Fitting 341, conical sealing, R 1, Rp 1](/web/image/product.template/203200/image_128/%5B133832%5D%20RIEGLER%20Fitting%20341%2C%20conical%20sealing%2C%20R%201%2C%20Rp%201?unique=7108631)
|
Type number: TFV 341-10-S |
5.41 € | |
![[133835] RIEGLER Fitting 341, conical sealing, R 2, Rp 2](/web/image/product.template/203203/image_128/%5B133835%5D%20RIEGLER%20Fitting%20341%2C%20conical%20sealing%2C%20R%202%2C%20Rp%202?unique=95fab0b)
|
Type number: TFV 341-20-S |
15.01 € | |
![[133831] RIEGLER Fitting 341, conical sealing, R 3/4, Rp 3/4](/web/image/product.template/203199/image_128/%5B133831%5D%20RIEGLER%20Fitting%20341%2C%20conical%20sealing%2C%20R%203-4%2C%20Rp%203-4?unique=f1ea6f9)
|
Type number: TFV 341-34-S |
4.61 € | |
![[133829] RIEGLER Fitting 341, conical sealing, R 3/8, Rp 3/8](/web/image/product.template/203197/image_128/%5B133829%5D%20RIEGLER%20Fitting%20341%2C%20conical%20sealing%2C%20R%203-8%2C%20Rp%203-8?unique=f910fae)
|
Type number: TFV 341-38-S |
3.80 € | |
![[133837] RIEGLER Fitting 341, conical sealing, R 3, Rp 3](/web/image/product.template/203205/image_128/%5B133837%5D%20RIEGLER%20Fitting%20341%2C%20conical%20sealing%2C%20R%203%2C%20Rp%203?unique=921098d)
|
Type number: TFV 341-30-S |
49.99 € | |
