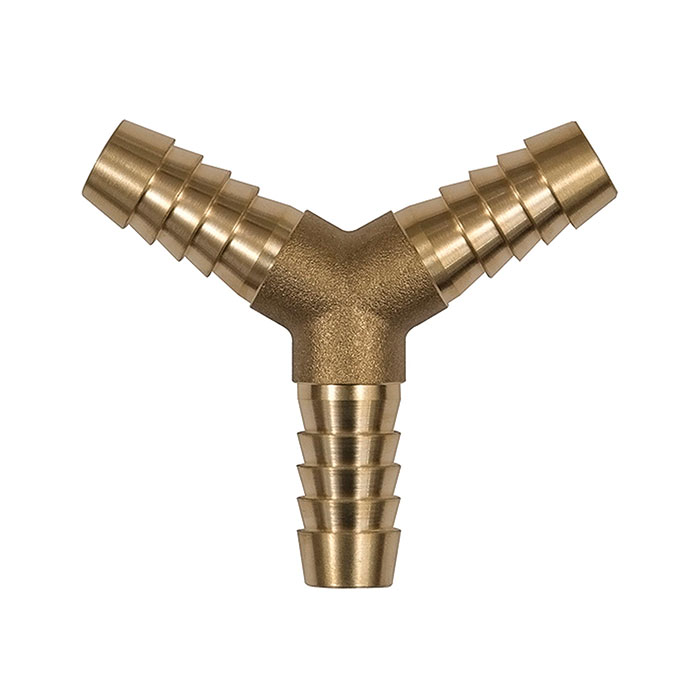

RIEGLER Y hose connection supports, for hose I.D. 5 mm, brass
Type number: 172 A
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Y-Schlauchverbindungsstutzen, für Schlauch LW 5 mm, Messing CW617N, Arbeitsdruck max. 10 bar, Mediums/Umgeb.Temp. max. 90 °C
| Medium temperature max. | 90 °C |
| Ambient temperature max. | 90 °C |
| Working pressure max. | 10 bar |
| Material | Brass CW617N |
| for hose | LW 5 mm |

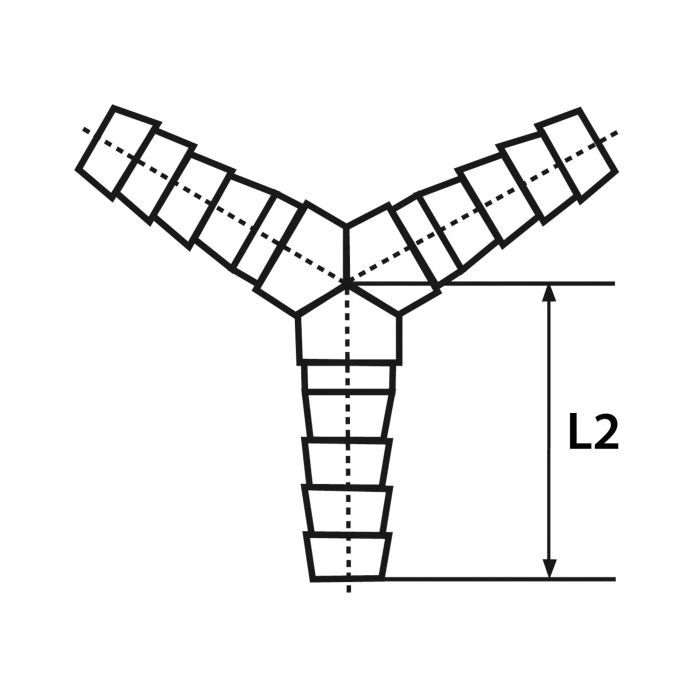

| L2 | 19 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

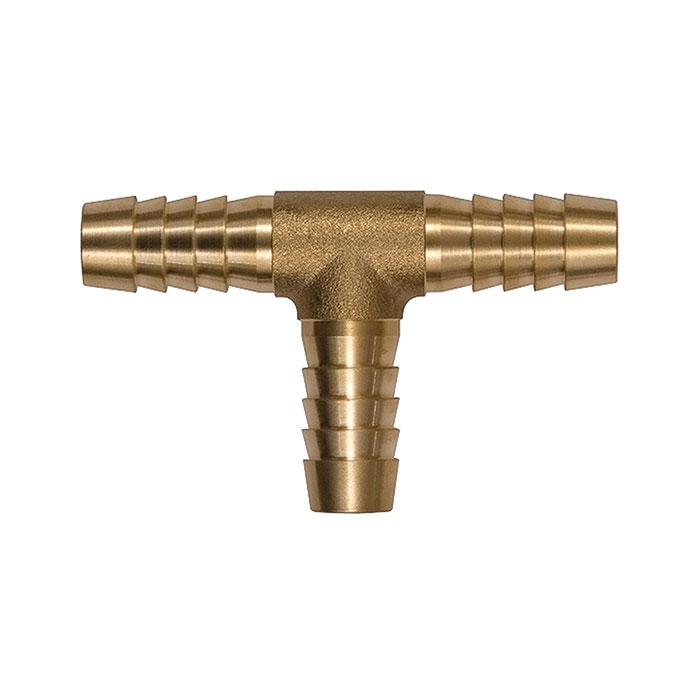

![[134506] RIEGLER T-hose fitting supports, for hose I.D. 13 mm, brass](/web/image/product.template/205458/image_128/%5B134506%5D%20RIEGLER%20T-hose%20fitting%20supports%2C%20for%20hose%20I.D.%2013%20mm%2C%20brass?unique=818a665)
|
Type number: 171 E |
5.70 € | |
![[134502] RIEGLER T-hose fitting supports, for hose I.D. 5 mm, brass](/web/image/product.template/205454/image_128/%5B134502%5D%20RIEGLER%20T-hose%20fitting%20supports%2C%20for%20hose%20I.D.%205%20mm%2C%20brass?unique=59bd0eb)
|
Type number: 171 A |
2.94 € | |
![[134503] RIEGLER T-hose fitting supports, for hose I.D. 6 mm, brass](/web/image/product.template/205455/image_128/%5B134503%5D%20RIEGLER%20T-hose%20fitting%20supports%2C%20for%20hose%20I.D.%206%20mm%2C%20brass?unique=57f1b27)
|
Type number: 171 B |
2.94 € | |
![[134504] RIEGLER T-hose fitting supports, for hose I.D. 8 mm, brass](/web/image/product.template/205456/image_128/%5B134504%5D%20RIEGLER%20T-hose%20fitting%20supports%2C%20for%20hose%20I.D.%208%20mm%2C%20brass?unique=2b918dc)
|
Type number: 171 C |
2.94 € | |
![[134505] RIEGLER T-hose fitting supports, for hose I.D. 9 mm, brass](/web/image/product.template/205457/image_128/%5B134505%5D%20RIEGLER%20T-hose%20fitting%20supports%2C%20for%20hose%20I.D.%209%20mm%2C%20brass?unique=bf34f8c)
|
Type number: 171 D |
3.05 € | |
![[134511] RIEGLER Y hose connection supports, for hose I.D. 13 mm, brass](/web/image/product.template/205463/image_128/%5B134511%5D%20RIEGLER%20Y%20hose%20connection%20supports%2C%20for%20hose%20I.D.%2013%20mm%2C%20brass?unique=15b969c)
|
Type number: 172 E |
5.70 € | |
![[140113] RIEGLER Y hose connection supports, for hose I.D. 4 mm, brass](/web/image/product.template/208048/image_128/%5B140113%5D%20RIEGLER%20Y%20hose%20connection%20supports%2C%20for%20hose%20I.D.%204%20mm%2C%20brass?unique=5813402)
|
Type number: 172 A/0 |
3.63 € | |
![[134508] RIEGLER Y hose connection supports, for hose I.D. 6 mm, brass](/web/image/product.template/205460/image_128/%5B134508%5D%20RIEGLER%20Y%20hose%20connection%20supports%2C%20for%20hose%20I.D.%206%20mm%2C%20brass?unique=d140ff6)
|
Type number: 172 B |
2.94 € | |

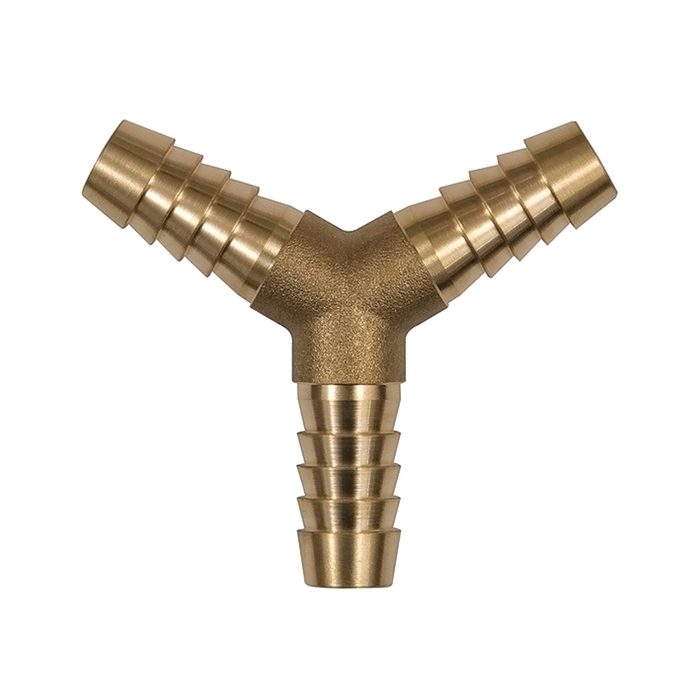

![[134509] RIEGLER Y hose connection supports, for hose I.D. 8 mm, brass](/web/image/product.template/205461/image_128/%5B134509%5D%20RIEGLER%20Y%20hose%20connection%20supports%2C%20for%20hose%20I.D.%208%20mm%2C%20brass?unique=abcc644)
|
