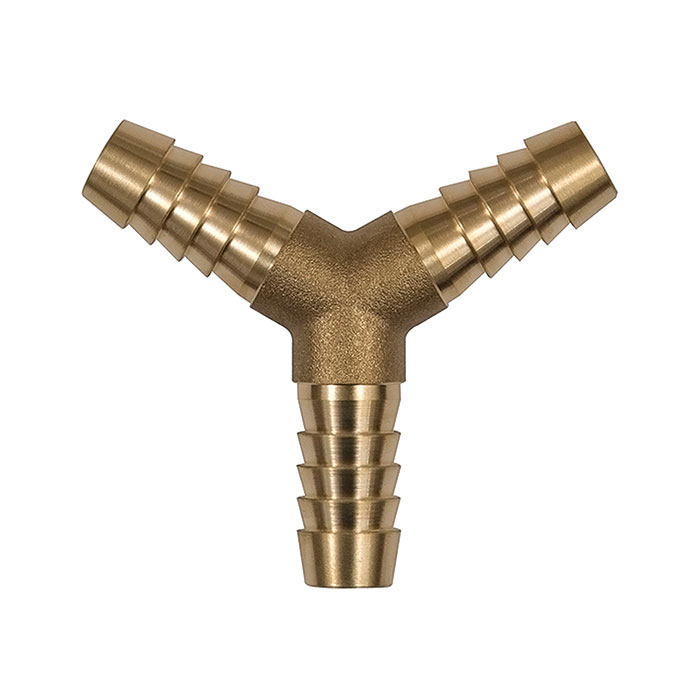

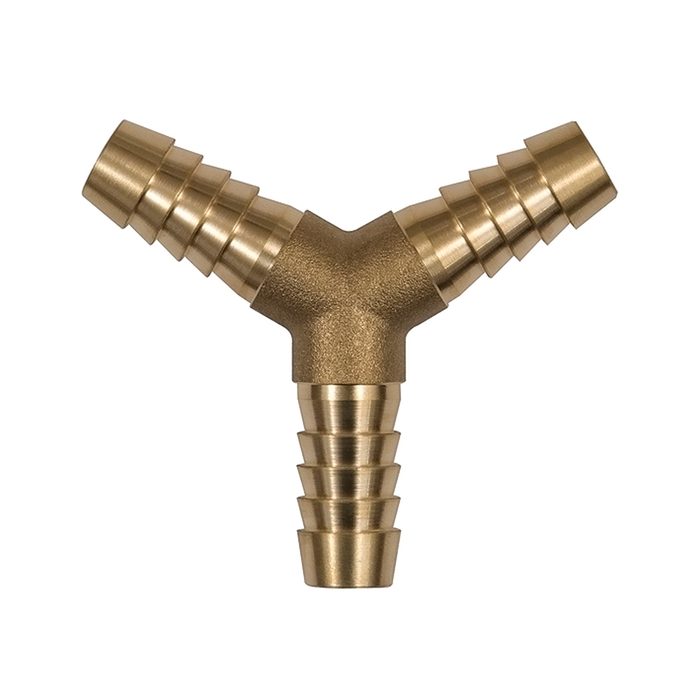

RIEGLER Y hose connection supports, for hose I.D. 13 mm, brass
Type number: 172 E
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Y-Schlauchverbindungsstutzen, für Schlauch LW 13 mm, Messing CW617N, Arbeitsdruck max. 10 bar, Mediums/Umgeb.Temp. max. 90 °C
| Medium temperature max. | 90 °C |
| Ambient temperature max. | 90 °C |
| Working pressure max. | 10 bar |
| Material | Brass CW617N |
| for hose | LW 13 mm |

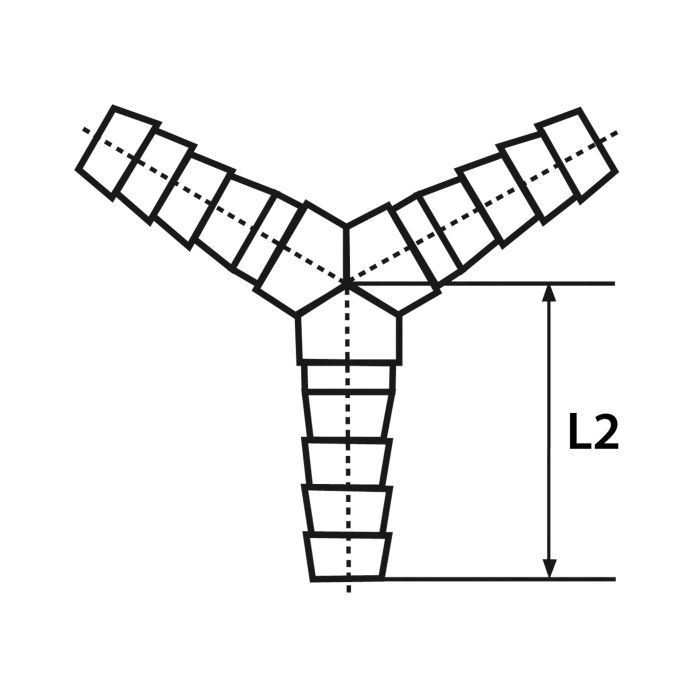

| L2 | 35 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | EASY |
