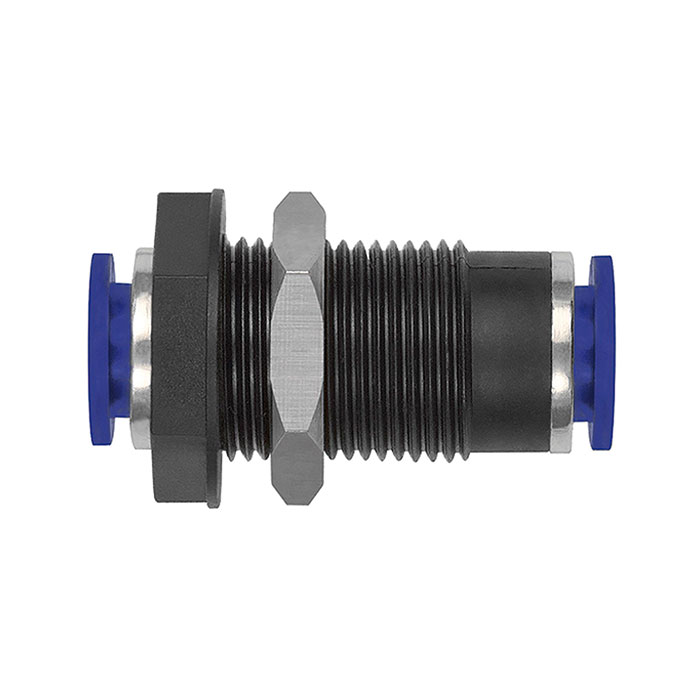

RIEGLER Straight push-in bulkhead connector »Blue Series«, M20x1.5
Type number: 149.010-K
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Straight bulkhead push-in connector "Blue series", M20x1.5, for hose outer Ø 10 mm, pmax short-term 15 bar, plastic
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Control panel thread | M20x1.5 |
| SW | 24 mm |
| for hose outer Ø | 10 mm |
| L1 | 45 mm |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
