RIEGLER Straight push-in bulkhead connector »Blue Series«, M24x2.0
Type number: 149.012-K
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Straight bulkhead connector "Blue series" made of plastic or nickel-plated brass - type 149.012-K
The RIEGLER straight bulkhead connector "Blue series", M24x2.0, Ø 12 connects compressed air and pneumatic lines securely and tightly. The housing is made of plastic or nickel-plated brass with NBR seals. The operating pressure range is -0.95 bar to 10 bar. The temperature range is between -20 °C and 80 °C. Suitable for compressed air. Secure, tight connection for reliable operation.
Field of application
Typical areas of application: Pneumatic installations and compressed air distribution.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Control panel thread | M24x2.0 |
| SW | 27 mm |
| for hose outer Ø | 12 mm |
| L1 | 47 mm |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[135757] RIEGLER Straight push-in bulkhead connector »Blue Series«, M12x1.0](/web/image/product.template/206135/image_128/%5B135757%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20connector%20%C2%BBBlue%20Series%C2%AB%2C%20M12x1.0?unique=f96bba3)
|
Type number: 149.004-K |
1.46 € | |
![[135758] RIEGLER Straight push-in bulkhead connector »Blue Series«, M14x1.25](/web/image/product.template/206136/image_128/%5B135758%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20connector%20%C2%BBBlue%20Series%C2%AB%2C%20M14x1.25?unique=160a736)
|
Type number: 149.006-K |
1.70 € | |

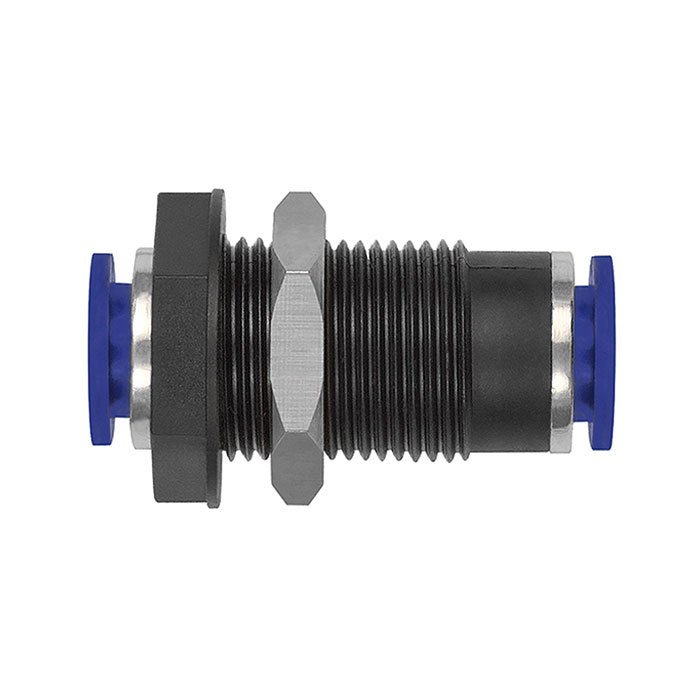

![[135759] RIEGLER Straight push-in bulkhead connector »Blue Series«, M16x1.5](/web/image/product.template/206137/image_128/%5B135759%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20connector%20%C2%BBBlue%20Series%C2%AB%2C%20M16x1.5?unique=a0f0bcf)
|
