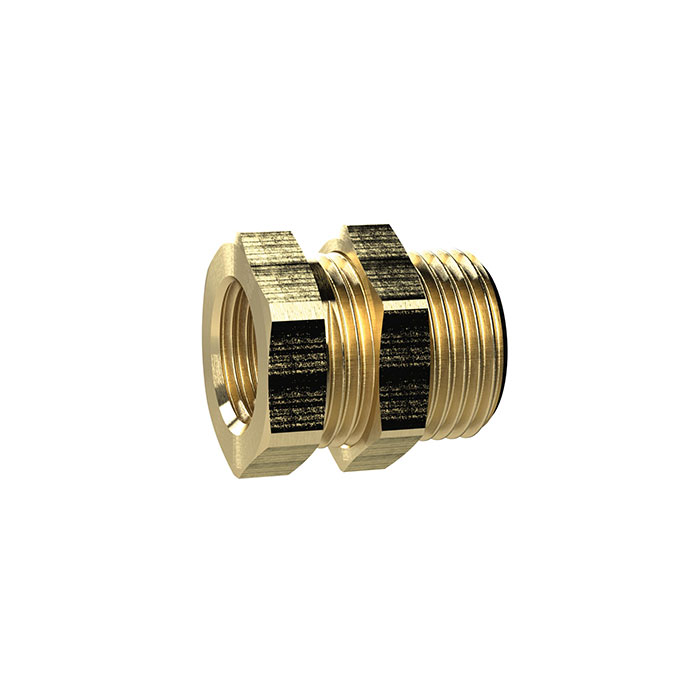

RIEGLER Bulkhead fitting, M54x2 o., G 1 1/2 i., AF1 60, AF2 65, Brass
Type number: MS232M54112
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Bulkhead fitting made of brass CW614N, for pipeline construction, max. 25 bar - Type MS232M54112
The RIEGLER bulkhead fitting, M54x2 a., G 1 1/2 i., SW1 60, SW2 65, brass connects pipes permanently via threaded connections. The housing is made of brass CW614N. Designed for a maximum operating pressure of 25 bar. Durable, pressure-resistant pipe connections.
Field of application
Typical areas of application: Pipeline construction and compressed air distribution.
| Working pressure max. | 25 bar |
| Material | Brass CW614N |
| Operating temperature max. | 150 °C |
| SW 1 | 60 mm |
| SW 2 | 65 mm |

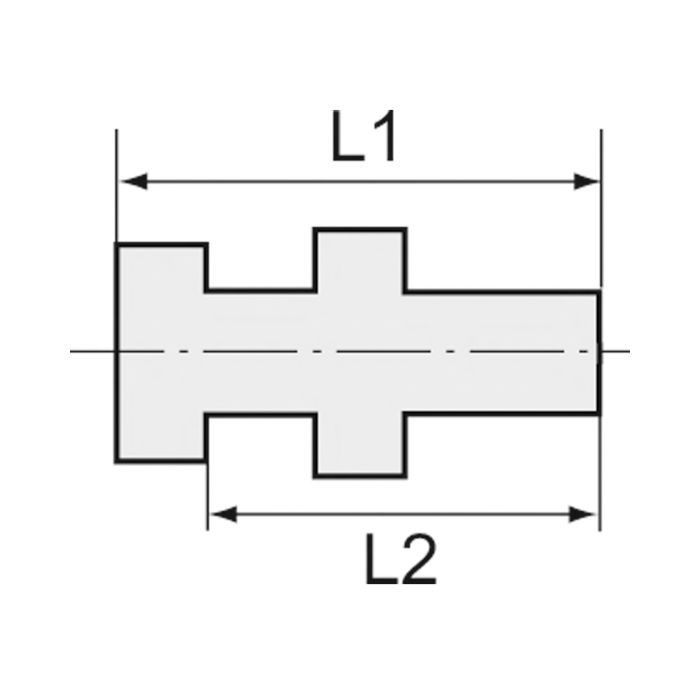

| L1 | 46 mm |
| L2 | 38 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Internal thread | G 1 1/2 |
| External thread | M54x2 |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
