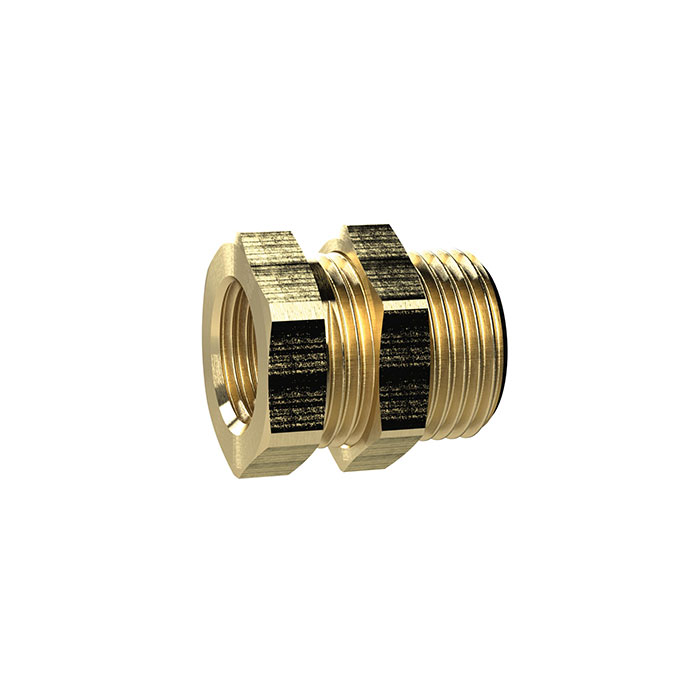

RIEGLER Bulkhead fitting, G 3/8 o., G 1/4 i., AF1 19, AF2 19, Brass
Type number: MS2323814
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Bulkhead fitting, external thread G 3/8, internal thread G 1/4, SW1 19, SW2 19, MS, max. working pressure 25 bar, max. operating temperature 150 °C
| Working pressure max. | 25 bar |
| Material | Brass CW614N |
| Operating temperature max. | 150 °C |
| SW 1 | 19 mm |
| SW 2 | 19 mm |
| L1 | 22 mm |
| L2 | 17 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Internal thread | G 1/4 |
| External thread | G 3/8 |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
