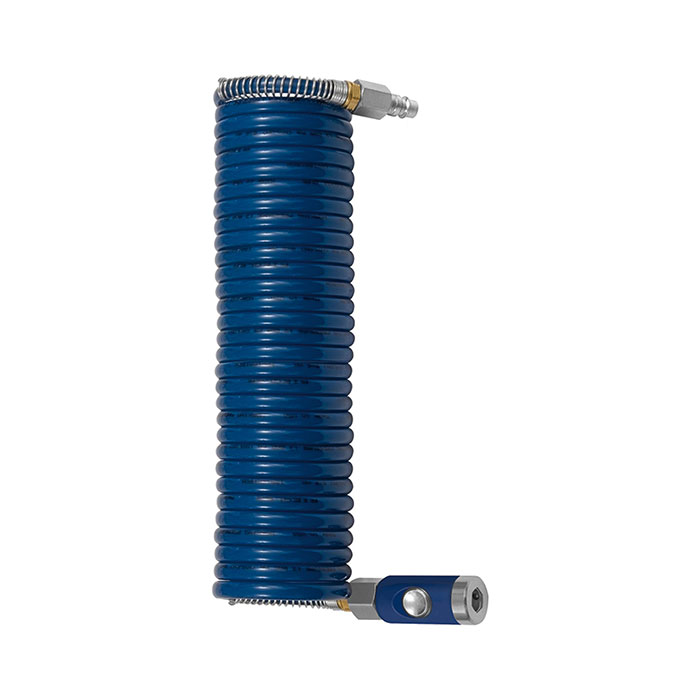

RIEGLER Spiral hose coupling set Safety, Nylon, Hose ø 9.5x7.9, 10 m
Type number: SP 10-1000DSD
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Spiral hose coupling set for compressed air distribution - type SP 10-1000DSD
The RIEGLER spiral hose coupling set, safety cpl., nylon, ø9.5x7.9, 10.0 m conducts compressed air flexibly and reliably from the compressor to the consumer. The operating temperature is between -20 °C and 70 °C. Hose Ø 9.5x7.9 mm. Flexible, pressure-resistant and suitable for various media.
Field of application
Typical areas of application: Compressed air distribution in workshops and production.
| Operating temperature min. | -20 °C |
| Operating temperature max. | 70 °C |
| Hose Ø | 9.5x7.9 mm |
| Outer spiral Ø | 115 mm |
| Windings | 40 |
| Working length max. | 10 m |
| Max. operating pressure at 23 °C | 12 bar |
| Class name | MAX |
