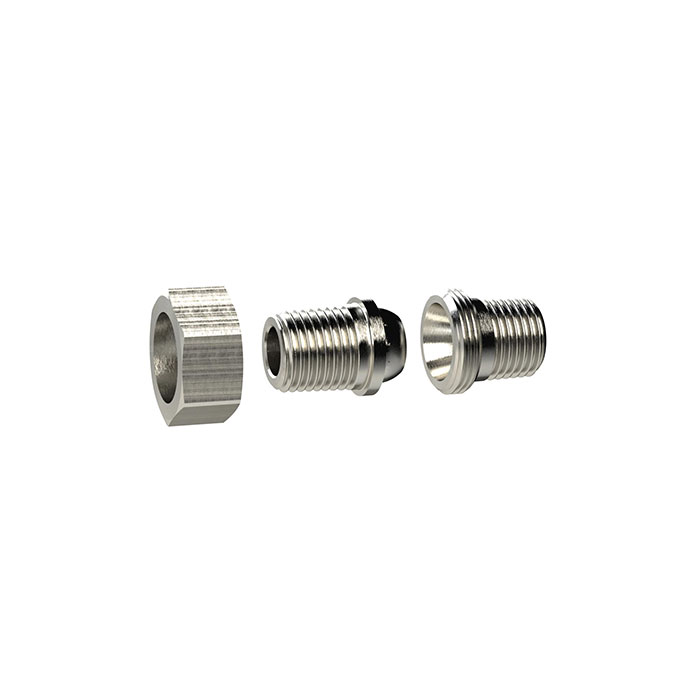

RIEGLER Removable Double threaded nipple, conical sealing, R 1 o., R 1 o.
Type number: MSN252L11
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Detachable double threaded nipple con. sealing R 1 a., R 1 a. SW 50, SW1: 19, MS nickel-plated Working pressure max. 25 bar, operating temp. max. 150°C
| Working pressure max. | 25 bar |
| Material | Nickel-plated brass CW614N (electroplated nickel-plated) |
| Operating temperature max. | 150 °C |
| SW 1 | 19 mm |
| SW | 50 mm |
| L1 | 59 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Thread 1 | R 1 |
| Thread 2 | R 1 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[136565] RIEGLER Rem. double threaded nipple, con. sealing, R 1 1/2 o., R 1 1/2 o.](/web/image/product.template/207676/image_128/%5B136565%5D%20RIEGLER%20Rem.%20double%20threaded%20nipple%2C%20con.%20sealing%2C%20R%201%201-2%20o.%2C%20R%201%201-2%20o.?unique=12affa1)
|
Type number: MSN252L112112 |
52.25 € | |
![[136564] RIEGLER Rem. double threaded nipple, con. sealing, R 1 1/4 o., R 1 1/4 o.](/web/image/product.template/207675/image_128/%5B136564%5D%20RIEGLER%20Rem.%20double%20threaded%20nipple%2C%20con.%20sealing%2C%20R%201%201-4%20o.%2C%20R%201%201-4%20o.?unique=2895240)
|
Type number: MSN252L114114 |
35.69 € | |
![[136561] RIEGLER Rem. double threaded nipple, con. sealing, R 1/2 o., R 1/2 o.](/web/image/product.template/207672/image_128/%5B136561%5D%20RIEGLER%20Rem.%20double%20threaded%20nipple%2C%20con.%20sealing%2C%20R%201-2%20o.%2C%20R%201-2%20o.?unique=0647b5e)
|
Type number: MSN252L1212 |
3.84 € | |
![[136558] RIEGLER Rem. double threaded nipple, con. sealing, R 1/4 o., R 1/4 o.](/web/image/product.template/207669/image_128/%5B136558%5D%20RIEGLER%20Rem.%20double%20threaded%20nipple%2C%20con.%20sealing%2C%20R%201-4%20o.%2C%20R%201-4%20o.?unique=c7ab83c)
|
Type number: MSN252L1414 |
1.90 € | |
![[136559] RIEGLER Rem. double threaded nipple, con. sealing, R 1/4 o., R 3/8 o.](/web/image/product.template/207670/image_128/%5B136559%5D%20RIEGLER%20Rem.%20double%20threaded%20nipple%2C%20con.%20sealing%2C%20R%201-4%20o.%2C%20R%203-8%20o.?unique=d177795)
|
Type number: MSN252L1438 |
2.61 € | |
![[136557] RIEGLER Rem. double threaded nipple, con. sealing, R 1/8 o., R 1/4 o.](/web/image/product.template/207668/image_128/%5B136557%5D%20RIEGLER%20Rem.%20double%20threaded%20nipple%2C%20con.%20sealing%2C%20R%201-8%20o.%2C%20R%201-4%20o.?unique=46aa652)
|
Type number: MSN252L1814 |
1.68 € | |

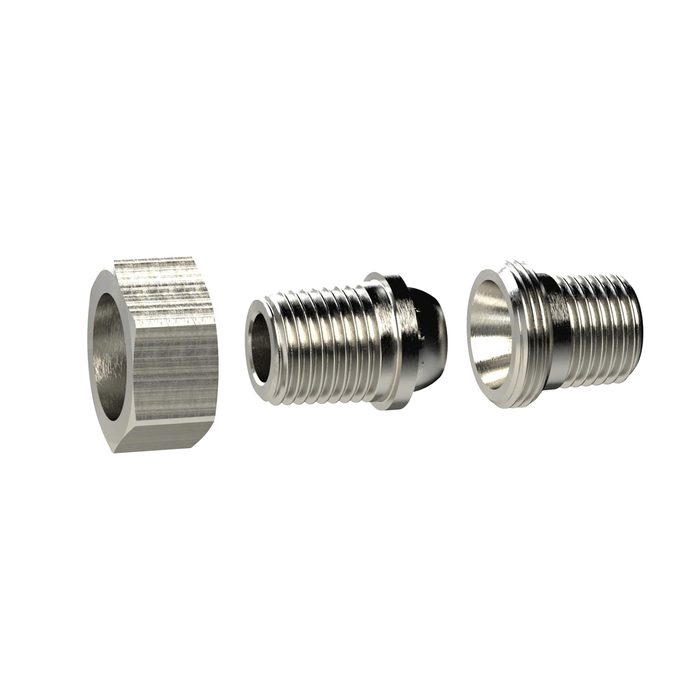

![[136556] RIEGLER Rem. double threaded nipple, con. sealing, R 1/8 o., R 1/8 o.](/web/image/product.template/207667/image_128/%5B136556%5D%20RIEGLER%20Rem.%20double%20threaded%20nipple%2C%20con.%20sealing%2C%20R%201-8%20o.%2C%20R%201-8%20o.?unique=51ba6b3)
|
Type number: MSN252L1818 |
1.48 € | |
![[136562] RIEGLER Rem. double threaded nipple, con. sealing, R 3/4 o., R 3/4 o.](/web/image/product.template/207673/image_128/%5B136562%5D%20RIEGLER%20Rem.%20double%20threaded%20nipple%2C%20con.%20sealing%2C%20R%203-4%20o.%2C%20R%203-4%20o.?unique=629e2c9)
|
Type number: MSN252L3434 |
8.58 € | |
![[136560] RIEGLER Rem. double threaded nipple, con. sealing, R 3/8 o., R 3/8 o.](/web/image/product.template/207671/image_128/%5B136560%5D%20RIEGLER%20Rem.%20double%20threaded%20nipple%2C%20con.%20sealing%2C%20R%203-8%20o.%2C%20R%203-8%20o.?unique=23fc1ba)
|
Type number: MSN252L3838 |
3.06 € | |
![[136566] RIEGLER Removable Double threaded nipple, conical sealing, R 2 o., R 2 o.](/web/image/product.template/207677/image_128/%5B136566%5D%20RIEGLER%20Removable%20Double%20threaded%20nipple%2C%20conical%20sealing%2C%20R%202%20o.%2C%20R%202%20o.?unique=fbf84c6)
|
Type number: MSN252L22 |
75.55 € | |
