RIEGLER Rem. double threaded nipple, con. sealing, R 1 1/2 o., R 1 1/2 o.
Type number: MSN252L112112
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Detachable double threaded nipple con. tight. R 1 1/2 a. R 1 made of nickel-plated brass CW614N (galvanized - type MSN252L112112
The RIEGLER loosening double threaded nipple con. tight. R 1 1/2 a. R 1 1/2 a. MS vern. connects two female threaded connections of the same or different sizes. The housing is made of nickel-plated brass CW614N (galvanized nickel-plated). Designed for a maximum operating pressure of 25 bar. Universal adapter for various thread sizes.
Field of application
Typical areas of application: Pipeline construction, compressed air distribution and sanitary installations.
| Working pressure max. | 25 bar |
| Material | Nickel-plated brass CW614N (electroplated nickel-plated) |
| Operating temperature max. | 150 °C |
| SW 1 | 24 mm |
| SW | 70 mm |
| L1 | 75 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Thread 1 | R 1 1/2 |
| Thread 2 | R 1 1/2 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[136564] RIEGLER Rem. double threaded nipple, con. sealing, R 1 1/4 o., R 1 1/4 o.](/web/image/product.template/207675/image_128/%5B136564%5D%20RIEGLER%20Rem.%20double%20threaded%20nipple%2C%20con.%20sealing%2C%20R%201%201-4%20o.%2C%20R%201%201-4%20o.?unique=e456166)
|
Type number: MSN252L114114 |
35.69 € | |
![[136561] RIEGLER Rem. double threaded nipple, con. sealing, R 1/2 o., R 1/2 o.](/web/image/product.template/207672/image_128/%5B136561%5D%20RIEGLER%20Rem.%20double%20threaded%20nipple%2C%20con.%20sealing%2C%20R%201-2%20o.%2C%20R%201-2%20o.?unique=9aa0319)
|
Type number: MSN252L1212 |
3.84 € | |
![[136558] RIEGLER Rem. double threaded nipple, con. sealing, R 1/4 o., R 1/4 o.](/web/image/product.template/207669/image_128/%5B136558%5D%20RIEGLER%20Rem.%20double%20threaded%20nipple%2C%20con.%20sealing%2C%20R%201-4%20o.%2C%20R%201-4%20o.?unique=91f4358)
|
Type number: MSN252L1414 |
1.90 € | |
![[136559] RIEGLER Rem. double threaded nipple, con. sealing, R 1/4 o., R 3/8 o.](/web/image/product.template/207670/image_128/%5B136559%5D%20RIEGLER%20Rem.%20double%20threaded%20nipple%2C%20con.%20sealing%2C%20R%201-4%20o.%2C%20R%203-8%20o.?unique=ab272e8)
|
Type number: MSN252L1438 |
2.61 € | |

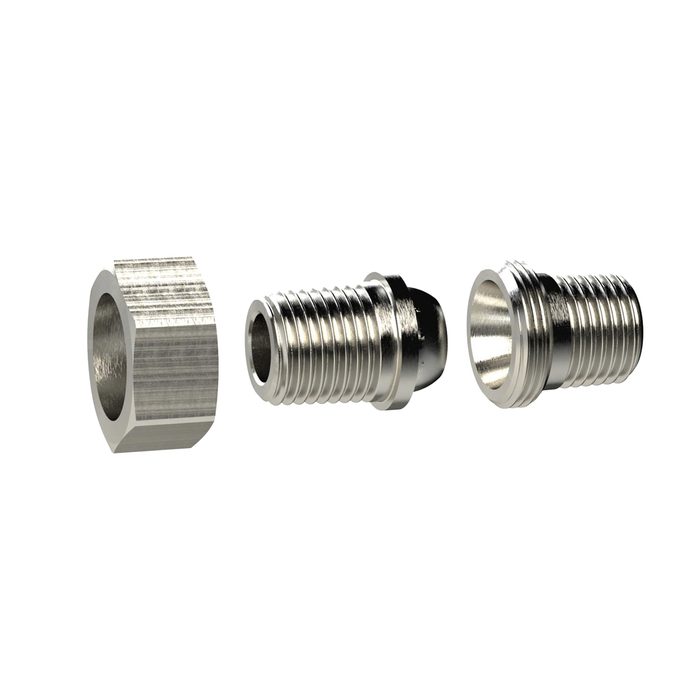

![[136557] RIEGLER Rem. double threaded nipple, con. sealing, R 1/8 o., R 1/4 o.](/web/image/product.template/207668/image_128/%5B136557%5D%20RIEGLER%20Rem.%20double%20threaded%20nipple%2C%20con.%20sealing%2C%20R%201-8%20o.%2C%20R%201-4%20o.?unique=aeba18a)
|
Type number: MSN252L1814 |
1.68 € | |
![[136556] RIEGLER Rem. double threaded nipple, con. sealing, R 1/8 o., R 1/8 o.](/web/image/product.template/207667/image_128/%5B136556%5D%20RIEGLER%20Rem.%20double%20threaded%20nipple%2C%20con.%20sealing%2C%20R%201-8%20o.%2C%20R%201-8%20o.?unique=5e7c162)
|
Type number: MSN252L1818 |
1.48 € | |
![[136562] RIEGLER Rem. double threaded nipple, con. sealing, R 3/4 o., R 3/4 o.](/web/image/product.template/207673/image_128/%5B136562%5D%20RIEGLER%20Rem.%20double%20threaded%20nipple%2C%20con.%20sealing%2C%20R%203-4%20o.%2C%20R%203-4%20o.?unique=25b6eef)
|
Type number: MSN252L3434 |
8.58 € | |
![[136560] RIEGLER Rem. double threaded nipple, con. sealing, R 3/8 o., R 3/8 o.](/web/image/product.template/207671/image_128/%5B136560%5D%20RIEGLER%20Rem.%20double%20threaded%20nipple%2C%20con.%20sealing%2C%20R%203-8%20o.%2C%20R%203-8%20o.?unique=8db330e)
|
Type number: MSN252L3838 |
3.06 € | |
![[136563] RIEGLER Removable Double threaded nipple, conical sealing, R 1 o., R 1 o.](/web/image/product.template/207674/image_128/%5B136563%5D%20RIEGLER%20Removable%20Double%20threaded%20nipple%2C%20conical%20sealing%2C%20R%201%20o.%2C%20R%201%20o.?unique=7d7908d)
|
Type number: MSN252L11 |
16.58 € | |

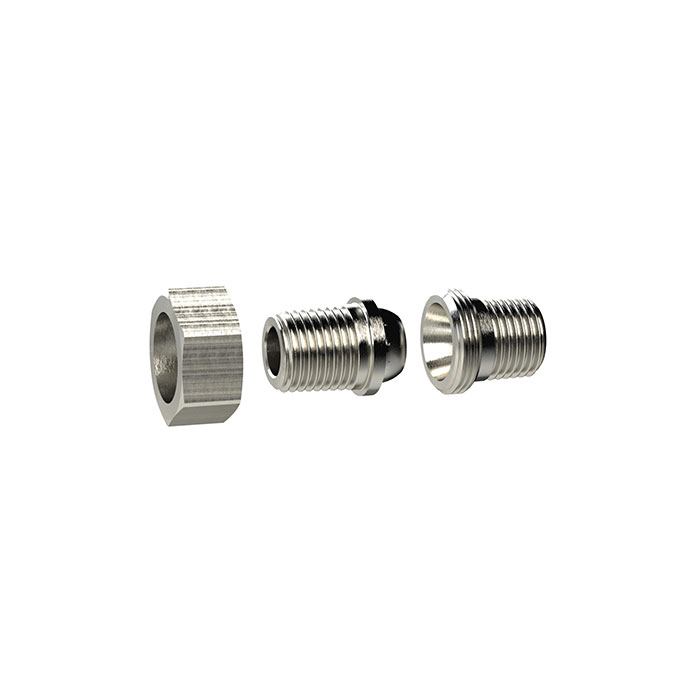

![[136566] RIEGLER Removable Double threaded nipple, conical sealing, R 2 o., R 2 o.](/web/image/product.template/207677/image_128/%5B136566%5D%20RIEGLER%20Removable%20Double%20threaded%20nipple%2C%20conical%20sealing%2C%20R%202%20o.%2C%20R%202%20o.?unique=3aff80d)
|
