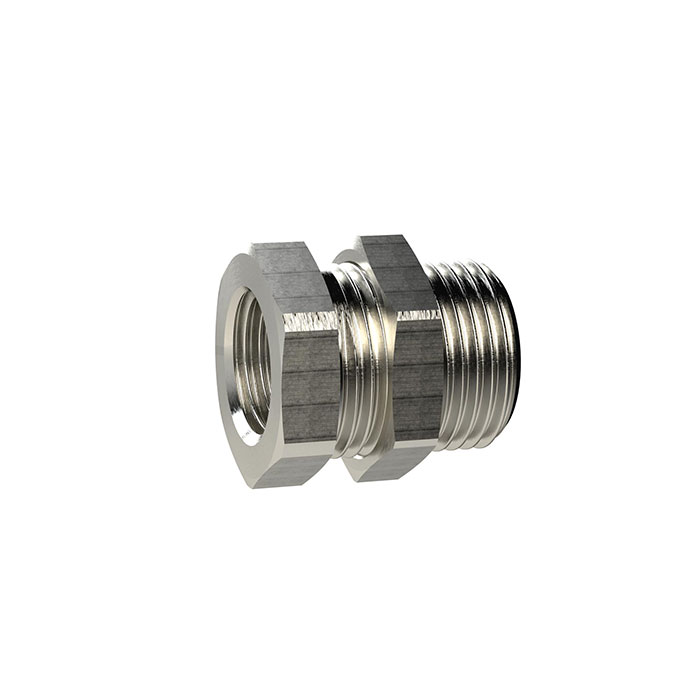

RIEGLER Bulkhead fitting, G 1/8 o., M5 i., nickel-plated brass
Type number: MSN23218M5
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Bulkhead fitting, G 1/8 a., M5 i., SW1 12, SW2 14, nickel-plated brass, max. working pressure 25 bar, max. operating temp. 150 °C
| Working pressure max. | 25 bar |
| Material | Nickel-plated brass CW614N (electroplated nickel-plated) |
| Operating temperature max. | 150 °C |
| SW 1 | 12 mm |
| SW 2 | 14 mm |

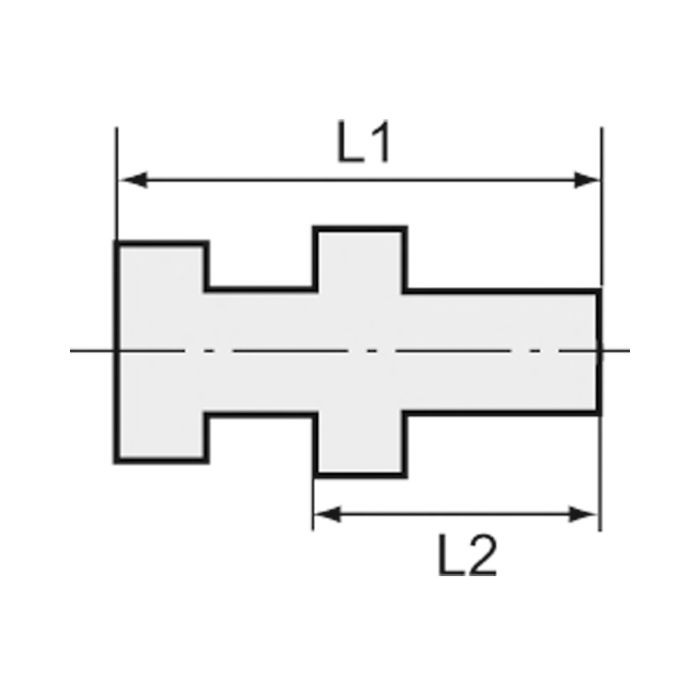

| L1 | 16 mm |
| L2 | 12 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Internal thread | M5 |
| External thread | G 1/8 |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
