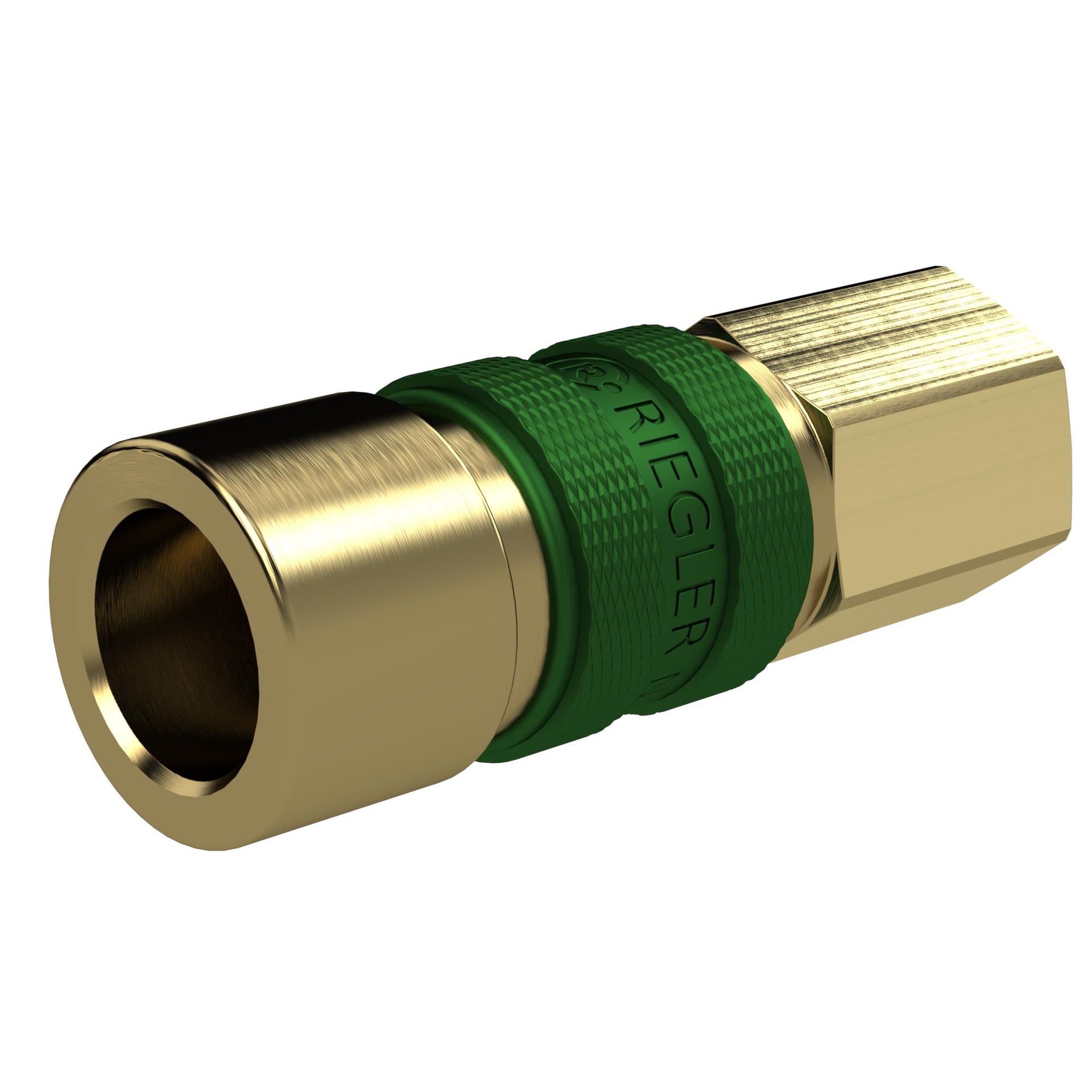

RIEGLER Unmistakable quick-release coupling NW 5, G 1/8 IG, green
Type number: SVKUNW5IG18G
EAN: 4047322752473
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
136987EAN :
4047322752473Category :
Non-Interchangeable Quick-Lock CouplingsWeight :
0.45 kgFilter element made of cellulose, plastic end caps, for microfilters, 0.01 µm, G 1 1/2
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| Valve | Brass MS58 bright |
| Ball | Stainless steel 1.3541 |
| Flow rate | 430 l/min |
| Housing | Brass MS58 bright |
| SW | 14 mm |
| Colour | green |
| NW | 5 |
| Ambient temperature min. | -20 °C |
| Medium temperature min. | -20 °C |
| Operating pressure | 0 - 35 bar, max. static operating pressure (without pulsation) |
| Ambient temperature max. | 100 °C |
| Medium temperature max. | 100 °C |
| Length | 47 mm |
| L1 | 7 mm |
| CAS No. SVHC 1 | 7439-92-1 |
| Unlocking sleeve | Anodized aluminum |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Snap ring | Stainless steel 1.4310 |
| Spring | Stainless steel 1.4310 |
| Connection | G 1/8 FEMALE THREAD |
| Sealing material | NBR |
| Class name | PLUS |
| Theme shop | SAFETY |
