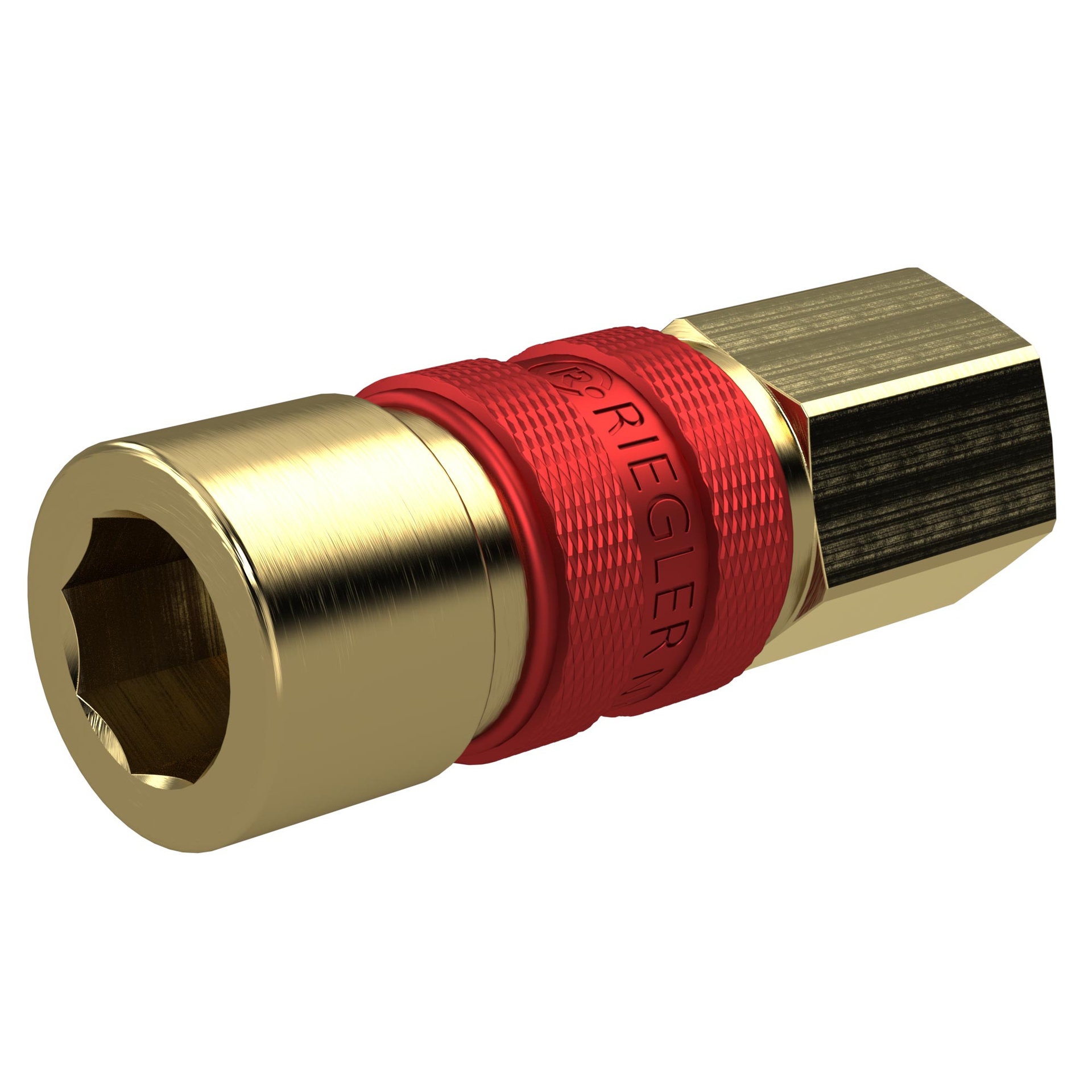

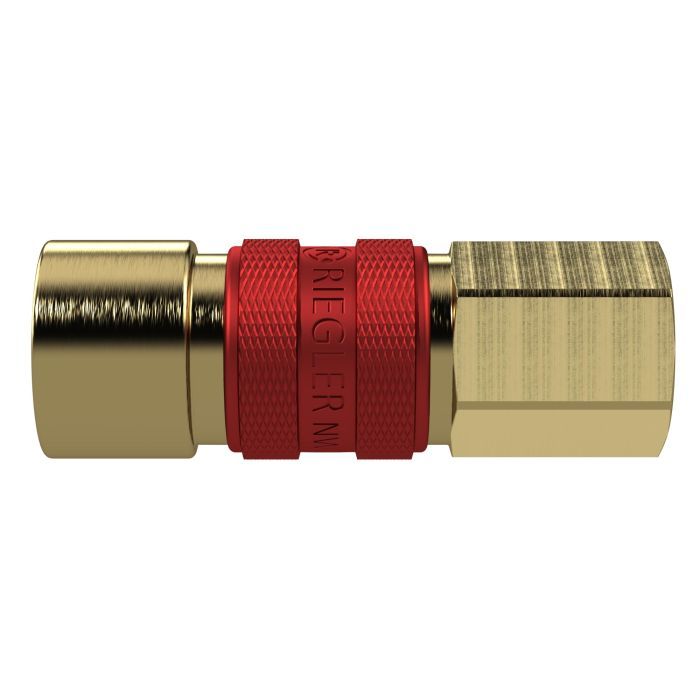

RIEGLER unmistakable quick-release coupling NW 5, G 1/8 IG, red
Type number: SVKUNW5IG18R
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
136993EAN :
4047322752534Category :
Non-Interchangeable Quick-Lock CouplingsWeight :
0.04 kgRIEGLER Unmistakable quick-release coupling made of brass MS58 bright - type SVKUNW5IG18R
The RIEGLER unmistakable quick-release coupling NW 5, G 1/8 female thread, red prevents confusion thanks to color-coded coupling systems. The housing is made of brass MS58 bright with NBR seals. The permissible medium temperature is between -20 °C and 100 °C. Connection thread G 1/8 IG - suitable for common industry standards. The flow rate is 430 l/min (at 6 bar and Δp = 0.5 bar). Color coding prevents confusion.
Field of application
Typical areas of application: Multi-conductor systems in production and laboratories.
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| Valve | Brass MS58 bright |
| Ball | Stainless steel 1.3541 |
| Flow rate | 430 l/min |
| Housing | Brass MS58 bright |
| SW | 14 mm |
| Colour | red |
| NW | 5 |
| Ambient temperature min. | -20 °C |
| Medium temperature min. | -20 °C |
| Operating pressure | 0 - 35 bar, max. static operating pressure (without pulsation) |
| Ambient temperature max. | 100 °C |
| Medium temperature max. | 100 °C |
| Length | 47 mm |
| L1 | 7 mm |
| CAS No. SVHC 1 | 7439-92-1 |
| Unlocking sleeve | Anodized aluminum |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Snap ring | Stainless steel 1.4310 |
| Spring | Stainless steel 1.4310 |
| Connection | G 1/8 FEMALE THREAD |
| Sealing material | NBR |
| Class name | PLUS |
| Theme shop | SAFETY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[136992] RIEGLER Unmistakable quick-release coupling NW 5, G 1/4 IG, blue](/web/image/product.template/267872/image_128/%5B136992%5D%20RIEGLER%20Unmistakable%20quick-release%20coupling%20NW%205%2C%20G%201-4%20IG%2C%20blue?unique=b8ca99a)
|
Type number: SVKUNW5IG14BL |
18.08 € | |
![[136990] RIEGLER Unmistakable quick-release coupling NW 5, G 1/4 IG, brown](/web/image/product.template/267870/image_128/%5B136990%5D%20RIEGLER%20Unmistakable%20quick-release%20coupling%20NW%205%2C%20G%201-4%20IG%2C%20brown?unique=a3e4958)
|
Type number: SVKUNW5IG14BR |
18.08 € | |
![[136988] RIEGLER Unmistakable quick-release coupling NW 5, G 1/4 IG, green](/web/image/product.template/267869/image_128/%5B136988%5D%20RIEGLER%20Unmistakable%20quick-release%20coupling%20NW%205%2C%20G%201-4%20IG%2C%20green?unique=d0b6d7e)
|
Type number: SVKUNW5IG14G |
18.08 € | |

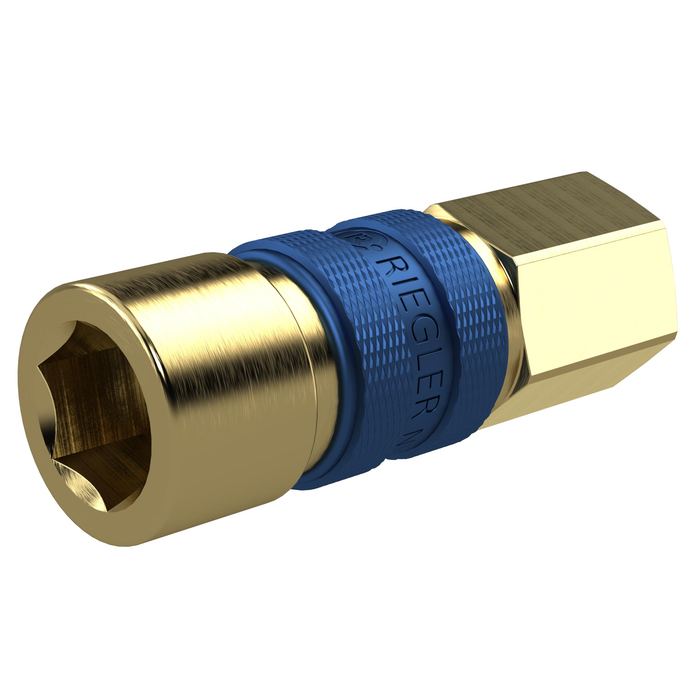

![[136991] RIEGLER Unmistakable quick-release coupling NW 5, G 1/8 IG, blue](/web/image/product.template/267871/image_128/%5B136991%5D%20RIEGLER%20Unmistakable%20quick-release%20coupling%20NW%205%2C%20G%201-8%20IG%2C%20blue?unique=684a89d)
|
Type number: SVKUNW5IG18BL |
18.08 € | |

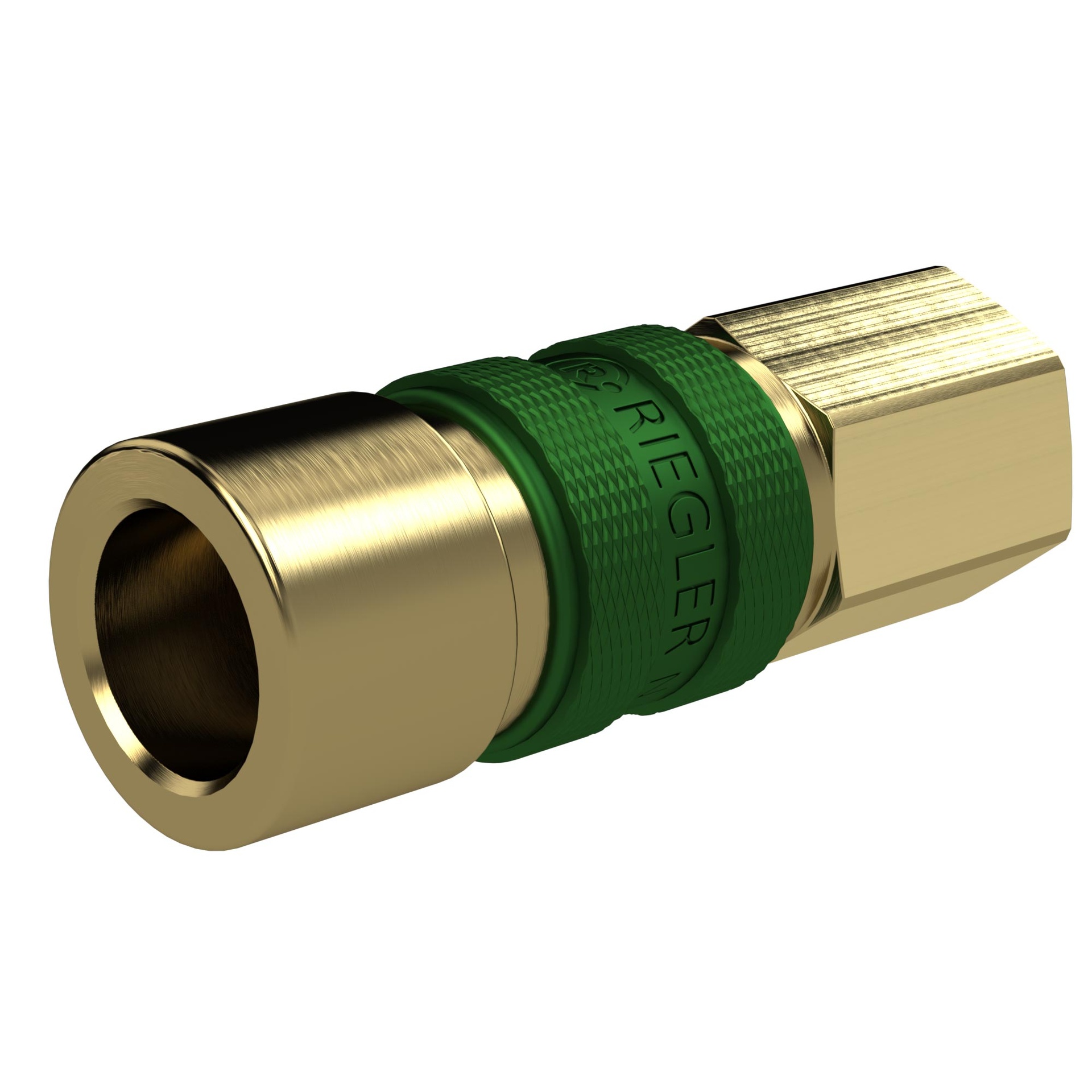

![[136987] RIEGLER Unmistakable quick-release coupling NW 5, G 1/8 IG, green](/web/image/product.template/283926/image_128/%5B136987%5D%20RIEGLER%20Unmistakable%20quick-release%20coupling%20NW%205%2C%20G%201-8%20IG%2C%20green?unique=b5870bb)
|
