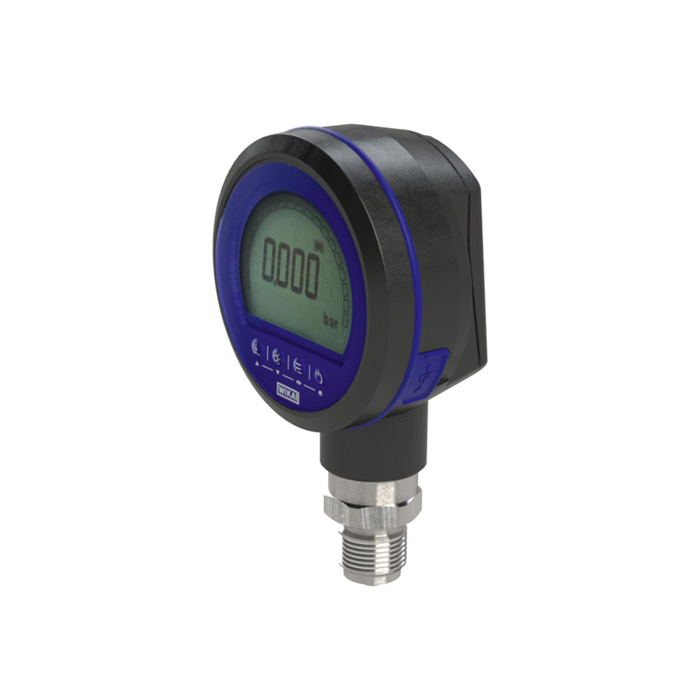

RIEGLER Digital pressure gauge, CPG1200, G 1/2, 0 - 10 bar, 0.5% FS, IP 65, PBT
Type number: CPG12.12.10.5
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Digital pressure gauge, type CPG1200, G 1/2, 0 - 10 bar, accuracy 0.5% FS, IP 65, housing PBT, operating temp. -10 to +50 °C
| Housing | PBT with 30% glass fiber content |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 50 °C |
| Wetted parts | CrNi steel 316L |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 50 °C |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 10 |
| Connection position | Vertical installation position, process connection at the bottom |
| Class name | PLUS |
| Process connection material | CrNi steel 316L |
| Housing protection cap | without |
| Memory | Min. / max. memory |
| Data transmission | Micro-USB type B |
| Backlight | can be activated via button |
| Pressure units | adjustable via menu |
| Battery life | approx. 4,000 h |
| Protection class | IP65 |
| Display | 4 1/2-digit 15-segment display |
| Ambient temperature min. | 15 °C |
| Ambient temperature max. | 25 °C |
| Type | CPG1200 |
| Accuracy | 0.5% FS |
| Process connection | G 1/2 |
| Power supply | 3x 1.5 V AA alkaline batteries |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[137900] RIEGLER Digital pressure gauge, CPG1200, G 1/2, 0 - 100 bar, 0.5% FS, IP 65,PBT](/web/image/product.template/278541/image_128/%5B137900%5D%20RIEGLER%20Digital%20pressure%20gauge%2C%20CPG1200%2C%20G%201-2%2C%200%20-%20100%20bar%2C%200.5%25%20FS%2C%20IP%2065%2CPBT?unique=b5f1489)
|
Type number: CPG12.12.100.5 |
319.07 € | |
![[137904] RIEGLER Digital pressure gauge, CPG1200, G 1/2, 0 - 400 bar, 0.5% FS, IP 65,PBT](/web/image/product.template/278542/image_128/%5B137904%5D%20RIEGLER%20Digital%20pressure%20gauge%2C%20CPG1200%2C%20G%201-2%2C%200%20-%20400%20bar%2C%200.5%25%20FS%2C%20IP%2065%2CPBT?unique=4fedba7)
|
Type number: CPG12.12.400.5 |
319.07 € | |
![[137791] RIEGLER Digital pressure gauge, CPG1200, G 1/4, 0 - 100 bar, 0.5% FS, IP 65,PBT](/web/image/product.template/278534/image_128/%5B137791%5D%20RIEGLER%20Digital%20pressure%20gauge%2C%20CPG1200%2C%20G%201-4%2C%200%20-%20100%20bar%2C%200.5%25%20FS%2C%20IP%2065%2CPBT?unique=ddde63f)
|
Type number: CPG12.14.100.5 |
319.07 € | |
![[137719] RIEGLER Digital pressure gauge, CPG1200, G 1/4, 0 - 10 bar, 0.5% FS, IP 65,PBT](/web/image/product.template/278532/image_128/%5B137719%5D%20RIEGLER%20Digital%20pressure%20gauge%2C%20CPG1200%2C%20G%201-4%2C%200%20-%2010%20bar%2C%200.5%25%20FS%2C%20IP%2065%2CPBT?unique=c4db125)
|
Type number: CPG12.14.10.5 |
319.07 € | |
![[137781] RIEGLER Digital pressure gauge, CPG1200, G 1/4, 0 - 20 bar, 0.5% FS, IP 65,PBT](/web/image/product.template/278533/image_128/%5B137781%5D%20RIEGLER%20Digital%20pressure%20gauge%2C%20CPG1200%2C%20G%201-4%2C%200%20-%2020%20bar%2C%200.5%25%20FS%2C%20IP%2065%2CPBT?unique=3a49df2)
|
Type number: CPG12.14.20.5 |
319.07 € | |
![[137815] RIEGLER Digital pressure gauge, CPG1200, G 1/4, 0 - 250 bar, 0.5% FS, IP 65,PBT](/web/image/product.template/278535/image_128/%5B137815%5D%20RIEGLER%20Digital%20pressure%20gauge%2C%20CPG1200%2C%20G%201-4%2C%200%20-%20250%20bar%2C%200.5%25%20FS%2C%20IP%2065%2CPBT?unique=44ec6e3)
|
Type number: CPG12.14.250.5 |
319.07 € | |
![[137820] RIEGLER Digital pressure gauge, CPG1200, G 1/4, 0 - 400 bar, 0.5% FS, IP 65,PBT](/web/image/product.template/278536/image_128/%5B137820%5D%20RIEGLER%20Digital%20pressure%20gauge%2C%20CPG1200%2C%20G%201-4%2C%200%20-%20400%20bar%2C%200.5%25%20FS%2C%20IP%2065%2CPBT?unique=552220d)
|
Type number: CPG12.14.400.5 |
319.07 € | |
![[137822] RIEGLER Digital pressure gauge, CPG1200, G 1/4, 0 - 600 bar, 0.5% FS, IP 65,PBT](/web/image/product.template/278537/image_128/%5B137822%5D%20RIEGLER%20Digital%20pressure%20gauge%2C%20CPG1200%2C%20G%201-4%2C%200%20-%20600%20bar%2C%200.5%25%20FS%2C%20IP%2065%2CPBT?unique=b83db83)
|
Type number: CPG12.14.600.5 |
319.07 € | |
![[137824] RIEGLER Digital pressure gauge, CPG1200, G 1/4, -1 / 16 bar, 0.5% FS, IP 65,PBT](/web/image/product.template/278538/image_128/%5B137824%5D%20RIEGLER%20Digital%20pressure%20gauge%2C%20CPG1200%2C%20G%201-4%2C%20-1%20-%2016%20bar%2C%200.5%25%20FS%2C%20IP%2065%2CPBT?unique=a4936b6)
|
Type number: CPG12.14.-116.5 |
319.07 € | |
![[137827] RIEGLER Digital pressure gauge, CPG1200, G 1/4, -1 / 40 bar, 0.5% FS, IP 65,PBT](/web/image/product.template/278539/image_128/%5B137827%5D%20RIEGLER%20Digital%20pressure%20gauge%2C%20CPG1200%2C%20G%201-4%2C%20-1%20-%2040%20bar%2C%200.5%25%20FS%2C%20IP%2065%2CPBT?unique=c19c138)
|
Type number: CPG12.14.-140.5 |
319.07 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[102643] RIEGLER Block valve pressure gauge, Bushing-Bushing, bright brass, G 1/2](/web/image/product.template/170615/image_128/%5B102643%5D%20RIEGLER%20Block%20valve%20pressure%20gauge%2C%20Bushing-Bushing%2C%20bright%20brass%2C%20G%201-2?unique=8a9fe01)
|
Type number: 9004/M |
15.51 € | |
![[102644] RIEGLER Block valve pressure gauge, Bushing - Bushing, 1.4571, G 1/2](/web/image/product.template/170616/image_128/%5B102644%5D%20RIEGLER%20Block%20valve%20pressure%20gauge%2C%20Bushing%20-%20Bushing%2C%201.4571%2C%20G%201-2?unique=cec7d29)
|
Type number: 9004/ES |
82.42 € | |
![[102645] RIEGLER Block valve pressure gauge, Bushing-Bushing, bright brass, G 1/2](/web/image/product.template/170617/image_128/%5B102645%5D%20RIEGLER%20Block%20valve%20pressure%20gauge%2C%20Bushing-Bushing%2C%20bright%20brass%2C%20G%201-2?unique=98c1b90)
|
Type number: 9005/60 |
25.22 € | |
![[102646] RIEGLER Block valve pressure gauge, Bushing-Bushing, bright brass, G 1/2](/web/image/product.template/170618/image_128/%5B102646%5D%20RIEGLER%20Block%20valve%20pressure%20gauge%2C%20Bushing-Bushing%2C%20bright%20brass%2C%20G%201-2?unique=e113604)
|
Type number: 9005/40 |
26.17 € | |
![[102649] RIEGLER Block valve pressure gauge, Bushing - taps, bright brass, G 1/2](/web/image/product.template/170621/image_128/%5B102649%5D%20RIEGLER%20Block%20valve%20pressure%20gauge%2C%20Bushing%20-%20taps%2C%20bright%20brass%2C%20G%201-2?unique=262005c)
|
Type number: 9009/M |
14.98 € | |
![[102650] RIEGLER Block valve pressure gauge, Bushing-taps, stainless steel, G 1/2](/web/image/product.template/170622/image_128/%5B102650%5D%20RIEGLER%20Block%20valve%20pressure%20gauge%2C%20Bushing-taps%2C%20stainless%20steel%2C%20G%201-2?unique=d8ce4c8)
|
Type number: 9009/ES |
81.25 € | |
![[102651] RIEGLER Block valve pressure gauge, Bushing - taps, bright brass, G 1/2](/web/image/product.template/170623/image_128/%5B102651%5D%20RIEGLER%20Block%20valve%20pressure%20gauge%2C%20Bushing%20-%20taps%2C%20bright%20brass%2C%20G%201-2?unique=d0bc141)
|
Type number: 9010/60 |
26.61 € | |
![[102652] RIEGLER Block valve pressure gauge, Bushing - rotating bushing, G 1/2](/web/image/product.template/170624/image_128/%5B102652%5D%20RIEGLER%20Block%20valve%20pressure%20gauge%2C%20Bushing%20-%20rotating%20bushing%2C%20G%201-2?unique=9474198)
|
Type number: 9012 |
23.06 € | |
![[102653] RIEGLER Block valve pressure gauge, Bushing - rotating bushing, G 1/2](/web/image/product.template/170625/image_128/%5B102653%5D%20RIEGLER%20Block%20valve%20pressure%20gauge%2C%20Bushing%20-%20rotating%20bushing%2C%20G%201-2?unique=d60e707)
|
Type number: 9013 |
29.54 € | |

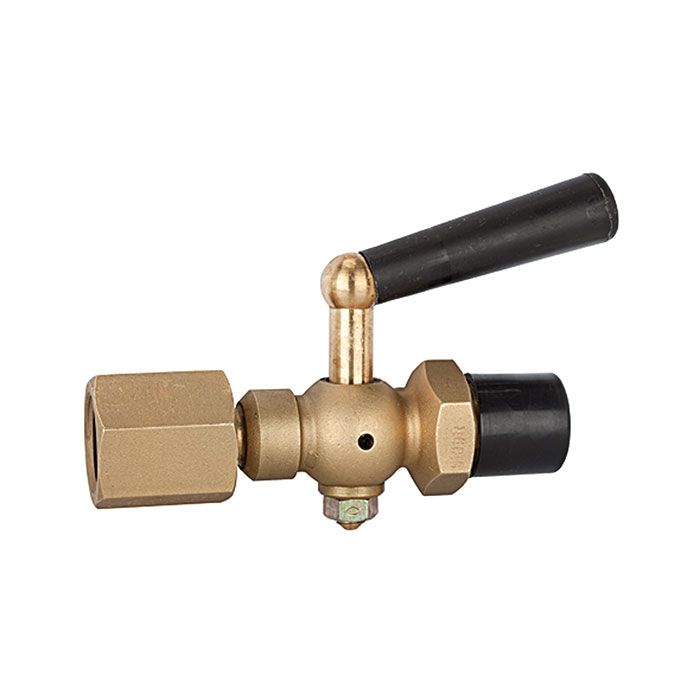

![[102654] RIEGLER Block valve pressure gauge, taps - rotating bushing, G 1/2](/web/image/product.template/170626/image_128/%5B102654%5D%20RIEGLER%20Block%20valve%20pressure%20gauge%2C%20taps%20-%20rotating%20bushing%2C%20G%201-2?unique=b09d518)
|
Type number: 9014 |
22.69 € | |
![[102657] RIEGLER Block valve pressure gauge, taps - tension sleeve, G 1/2](/web/image/product.template/170629/image_128/%5B102657%5D%20RIEGLER%20Block%20valve%20pressure%20gauge%2C%20taps%20-%20tension%20sleeve%2C%20G%201-2?unique=6be9c73)
|
Type number: 9021/M |
17.96 € | |

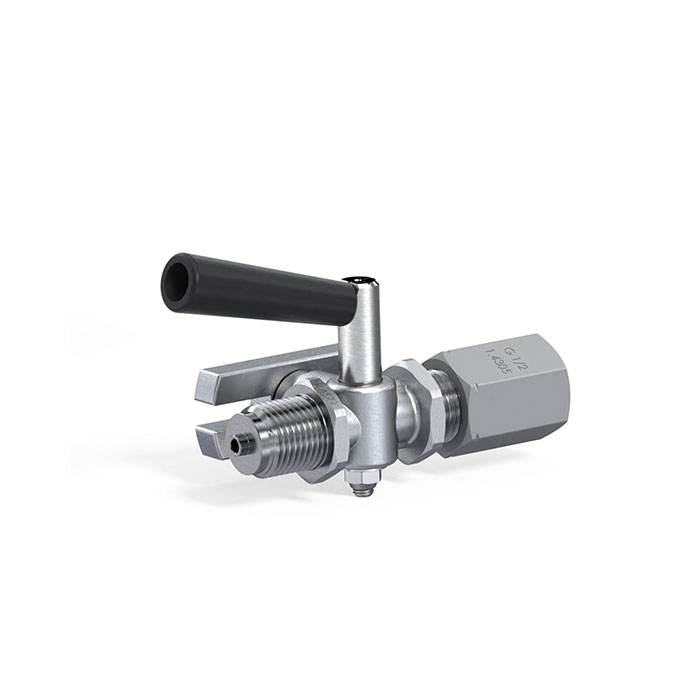

![[102658] RIEGLER Block valve pressure gauge, taps - tension sleeve, G 1/2](/web/image/product.template/170630/image_128/%5B102658%5D%20RIEGLER%20Block%20valve%20pressure%20gauge%2C%20taps%20-%20tension%20sleeve%2C%20G%201-2?unique=c28ac61)
|
Type number: 9021/ES |
82.42 € | |
![[102659] RIEGLER Block valve pressure gauge, taps - tension sleeve, G 1/2](/web/image/product.template/170631/image_128/%5B102659%5D%20RIEGLER%20Block%20valve%20pressure%20gauge%2C%20taps%20-%20tension%20sleeve%2C%20G%201-2?unique=a69958d)
|
Type number: 9022/M |
26.81 € | |
![[102660] RIEGLER Block valve pressure gauge, taps - tension sleeve, G 1/2](/web/image/product.template/170632/image_128/%5B102660%5D%20RIEGLER%20Block%20valve%20pressure%20gauge%2C%20taps%20-%20tension%20sleeve%2C%20G%201-2?unique=34661e8)
|
Type number: 9022/ES |
118.61 € | |

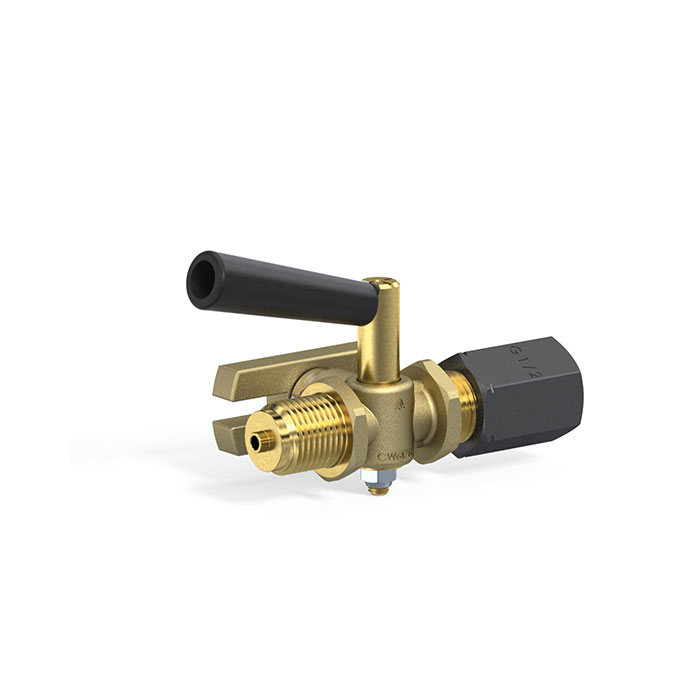

![[102661] RIEGLER Block valve pressure gauge, taps - tension sleeve, G 1/2](/web/image/product.template/170633/image_128/%5B102661%5D%20RIEGLER%20Block%20valve%20pressure%20gauge%2C%20taps%20-%20tension%20sleeve%2C%20G%201-2?unique=ce090aa)
|
Type number: 9023/M |
29.45 € | |

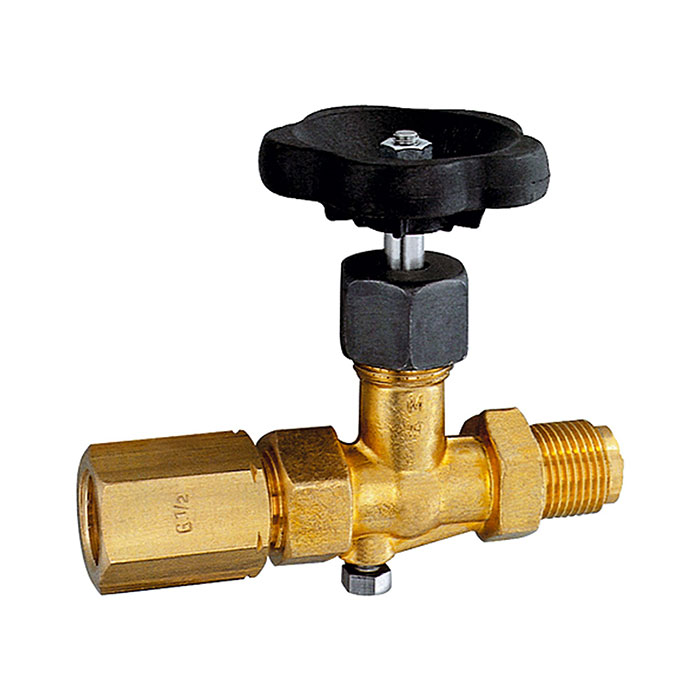

![[102664] RIEGLER Blocking valve pressure gauge, taps - tension sleeve, G 1/2](/web/image/product.template/170636/image_128/%5B102664%5D%20RIEGLER%20Blocking%20valve%20pressure%20gauge%2C%20taps%20-%20tension%20sleeve%2C%20G%201-2?unique=4ed5faf)
|
Type number: 9016/ES |
77.85 € | |

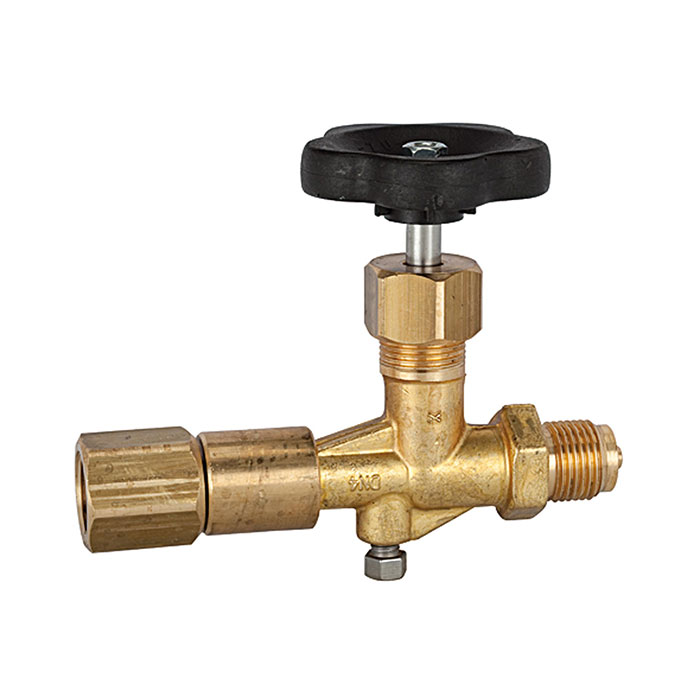

![[102666] RIEGLER Blocking valve pressure gauge, taps - rotating bushing, G 1/2](/web/image/product.template/170638/image_128/%5B102666%5D%20RIEGLER%20Blocking%20valve%20pressure%20gauge%2C%20taps%20-%20rotating%20bushing%2C%20G%201-2?unique=272399e)
|
Type number: 9080/ES |
98.51 € | |

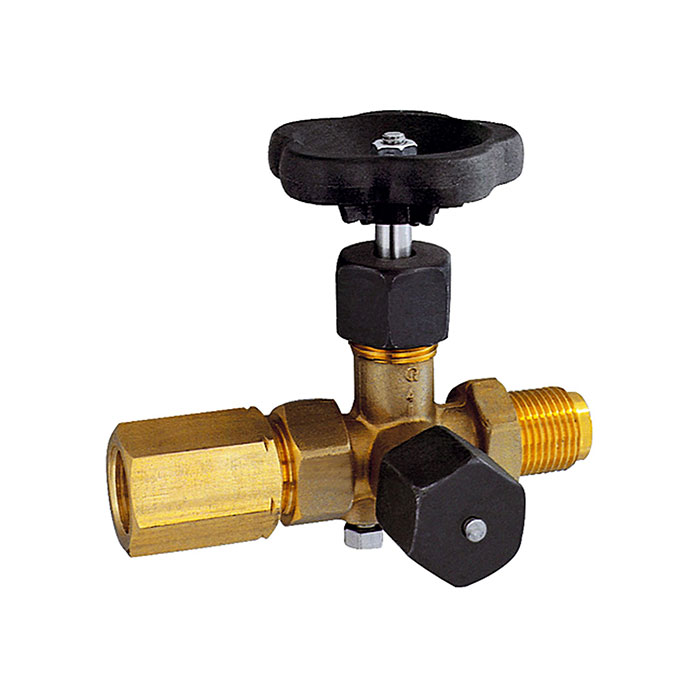

![[102669] RIEGLER Blocking valve pressure gauge, taps - tension sleeve, G 1/2](/web/image/product.template/170641/image_128/%5B102669%5D%20RIEGLER%20Blocking%20valve%20pressure%20gauge%2C%20taps%20-%20tension%20sleeve%2C%20G%201-2?unique=607fe1d)
|
Type number: 9115/ES |
98.51 € | |

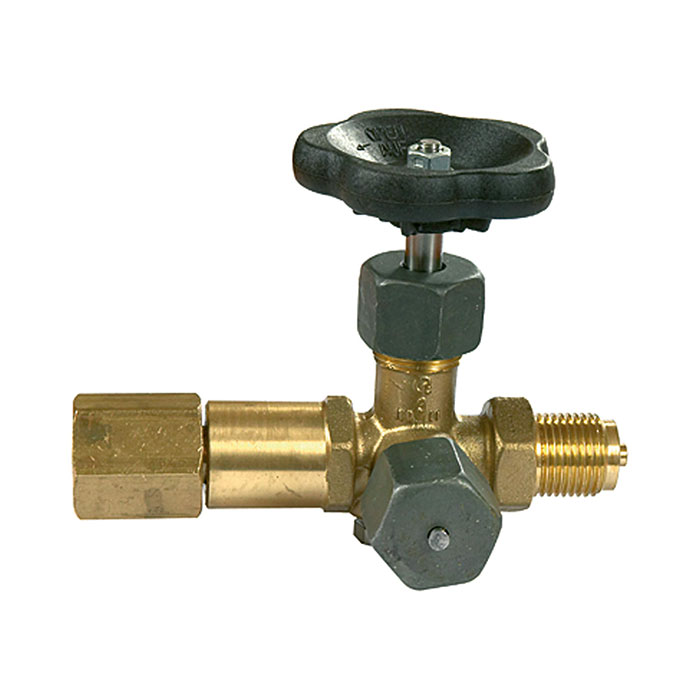

![[102671] RIEGLER Blocking valve pressure gauge, taps - rotating bushing, G 1/2](/web/image/product.template/170643/image_128/%5B102671%5D%20RIEGLER%20Blocking%20valve%20pressure%20gauge%2C%20taps%20-%20rotating%20bushing%2C%20G%201-2?unique=75d6052)
|
Type number: 9180/ES |
105.07 € | |

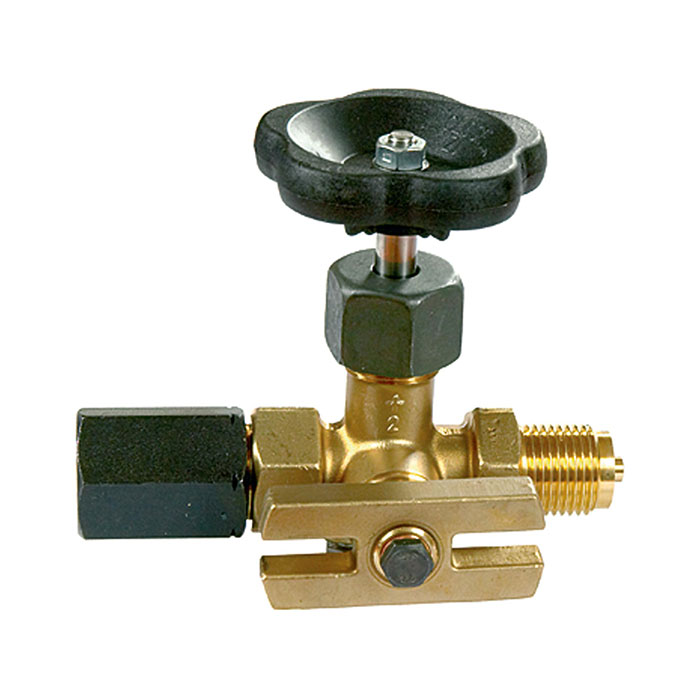

![[102673] RIEGLER Blocking valve pressure gauge, taps - tension sleeve, G 1/2](/web/image/product.template/170645/image_128/%5B102673%5D%20RIEGLER%20Blocking%20valve%20pressure%20gauge%2C%20taps%20-%20tension%20sleeve%2C%20G%201-2?unique=49d1c03)
|
Type number: 9185/ES |
253.14 € | |

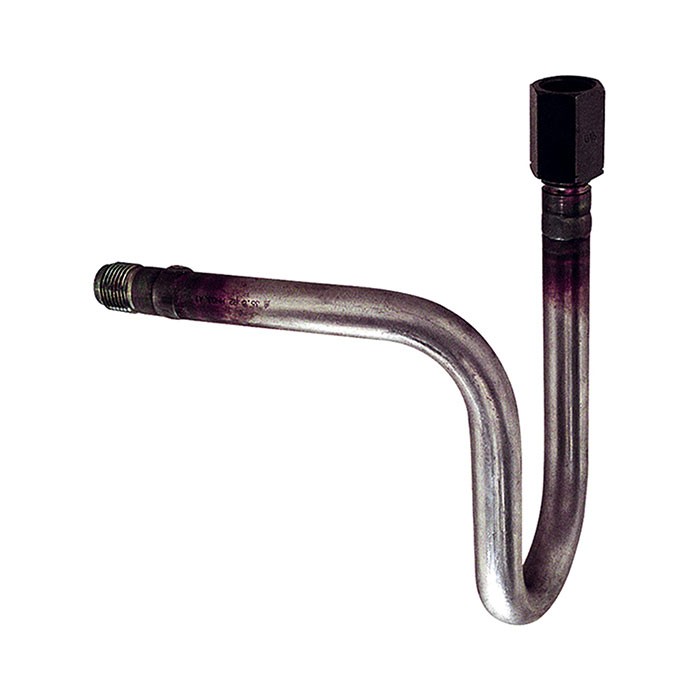

![[102675] RIEGLER Syphon in U shape, connection taps, G 1/2, CrNi steel 1.4571](/web/image/product.template/170647/image_128/%5B102675%5D%20RIEGLER%20Syphon%20in%20U%20shape%2C%20connection%20taps%2C%20G%201-2%2C%20CrNi%20steel%201.4571?unique=3f4de4c)
|
Type number: 9073 |
75.21 € | |

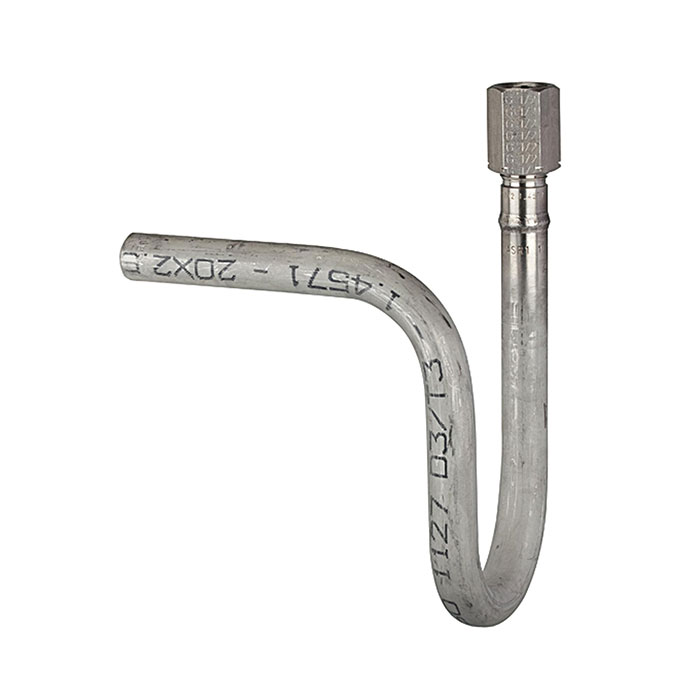

![[102677] RIEGLER Syphon in U shape, welded connection, G 1/2, CrNi steel 1.4571](/web/image/product.template/170649/image_128/%5B102677%5D%20RIEGLER%20Syphon%20in%20U%20shape%2C%20welded%20connection%2C%20G%201-2%2C%20CrNi%20steel%201.4571?unique=b714dd0)
|
Type number: 9075 |
66.81 € | |

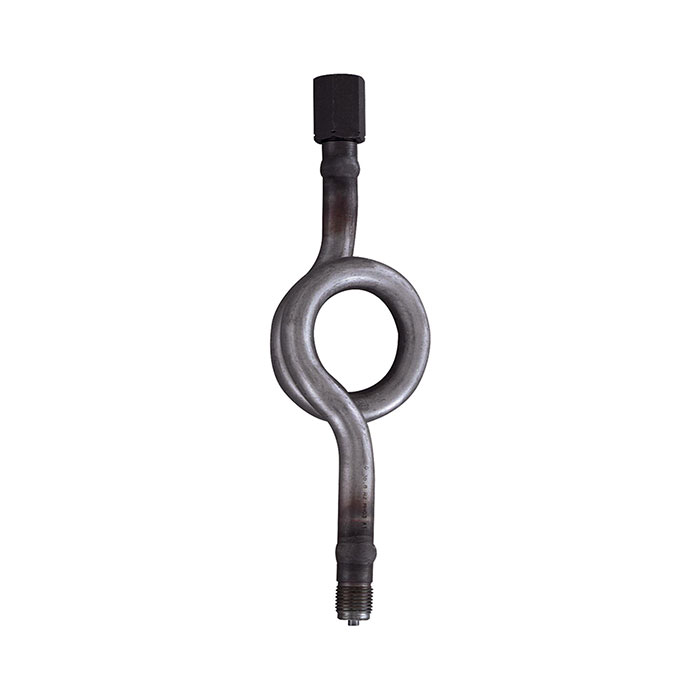

![[102679] RIEGLER Syphon in circular shape, connection tapss, G 1/2, CrNi steel](/web/image/product.template/170651/image_128/%5B102679%5D%20RIEGLER%20Syphon%20in%20circular%20shape%2C%20connection%20tapss%2C%20G%201-2%2C%20CrNi%20steel?unique=59cc50e)
|
Type number: 9083 |
75.21 € | |

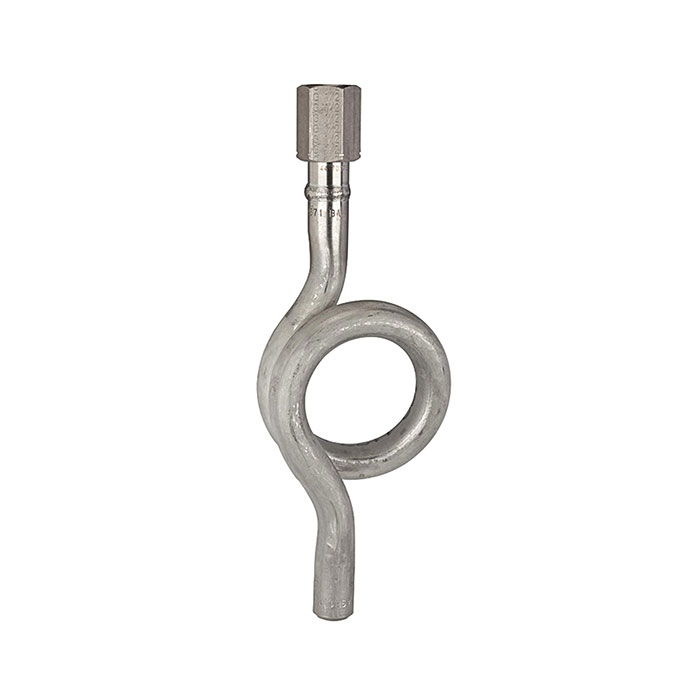

![[102681] RIEGLER Syphon in circular shape, welded connection, G 1/2, CrNi steel](/web/image/product.template/170653/image_128/%5B102681%5D%20RIEGLER%20Syphon%20in%20circular%20shape%2C%20welded%20connection%2C%20G%201-2%2C%20CrNi%20steel?unique=58033cc)
|
Type number: 9085 |
88.07 € | |

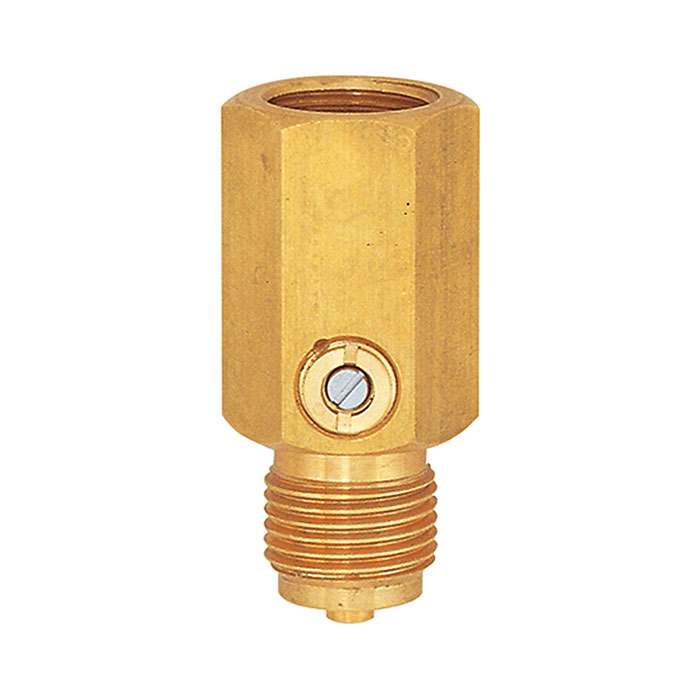

![[102684] RIEGLER Impact reducer for pressure gauge, G 1/2, stainless steel 1.4571](/web/image/product.template/170656/image_128/%5B102684%5D%20RIEGLER%20Impact%20reducer%20for%20pressure%20gauge%2C%20G%201-2%2C%20stainless%20steel%201.4571?unique=b5ca22f)
|
Type number: 9018/ES |
28.31 € | |
![[102686] RIEGLER Measurement device holder, Extension 60, black painted aluminium](/web/image/product.template/170658/image_128/%5B102686%5D%20RIEGLER%20Measurement%20device%20holder%2C%20Extension%2060%2C%20black%20painted%20aluminium?unique=0cf5a0a)
|
Type number: 9094 |
19.39 € | |
![[102688] RIEGLER Measurement device holder, Extension 160, black painted aluminium](/web/image/product.template/170660/image_128/%5B102688%5D%20RIEGLER%20Measurement%20device%20holder%2C%20Extension%20160%2C%20black%20painted%20aluminium?unique=b39b7b0)
|
Type number: 9096 |
27.77 € | |

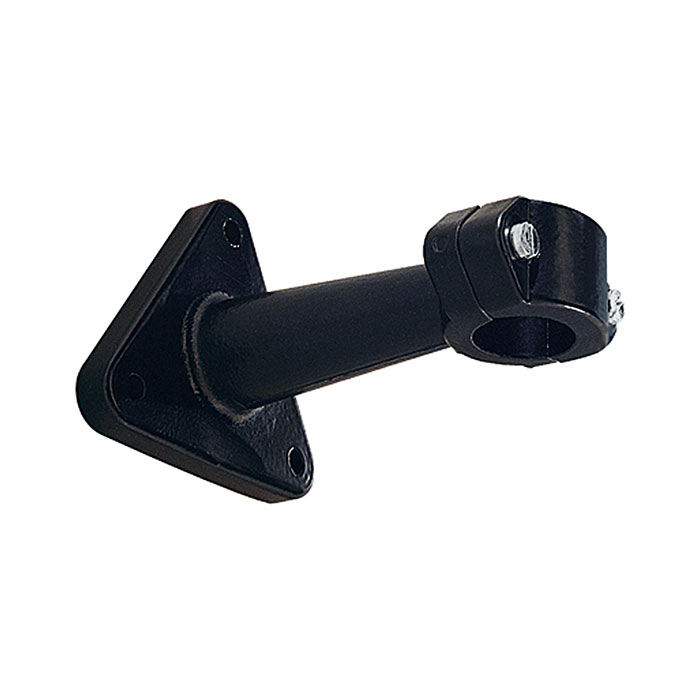

![[102689] RIEGLER Measurement device holder, Extension 100, CrNi steel 1.4571](/web/image/product.template/170661/image_128/%5B102689%5D%20RIEGLER%20Measurement%20device%20holder%2C%20Extension%20100%2C%20CrNi%20steel%201.4571?unique=131700c)
|
Type number: 9098 |
40.75 € | |

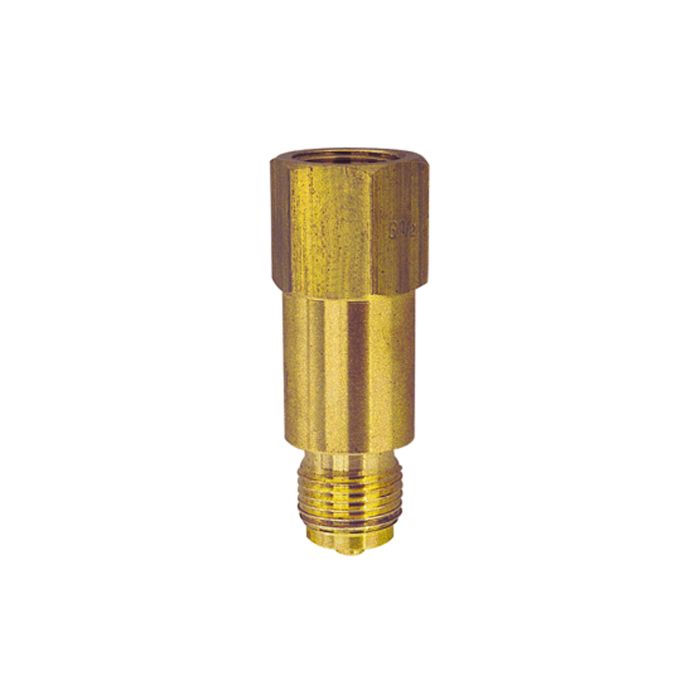

![[102692] RIEGLER Intermediate piece for measurement device holder, G 1/2](/web/image/product.template/170664/image_128/%5B102692%5D%20RIEGLER%20Intermediate%20piece%20for%20measurement%20device%20holder%2C%20G%201-2?unique=09cefb3)
|
Type number: 9099 |
27.77 € | |
![[112461] RIEGLER Pressure gauge- screw connection, G 1/2 i., Pipe exterior Ø 6 mm](/web/image/product.template/185366/image_128/%5B112461%5D%20RIEGLER%20Pressure%20gauge-%20screw%20connection%2C%20G%201-2%20i.%2C%20Pipe%20exterior%20%C3%98%206%20mm?unique=5cbcedf)
|
Type number: ES 205 |
24.13 € | |

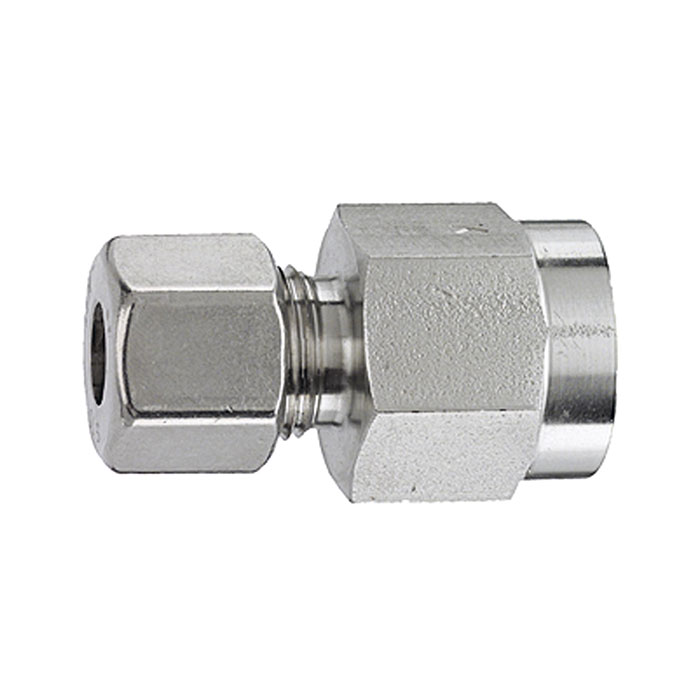

![[112462] RIEGLER Pressure gauge- screw connection, G 1/2 i., Pipe exterior Ø 8 mm](/web/image/product.template/185367/image_128/%5B112462%5D%20RIEGLER%20Pressure%20gauge-%20screw%20connection%2C%20G%201-2%20i.%2C%20Pipe%20exterior%20%C3%98%208%20mm?unique=b28aa01)
|
Type number: ES 206 |
23.15 € | |
![[112464] RIEGLER Pressure gauge- screw connection, G 1/2 i., Pipe exterior Ø 12 mm](/web/image/product.template/185369/image_128/%5B112464%5D%20RIEGLER%20Pressure%20gauge-%20screw%20connection%2C%20G%201-2%20i.%2C%20Pipe%20exterior%20%C3%98%2012%20mm?unique=a7f74cc)
|
Type number: ES 208 |
26.12 € | |

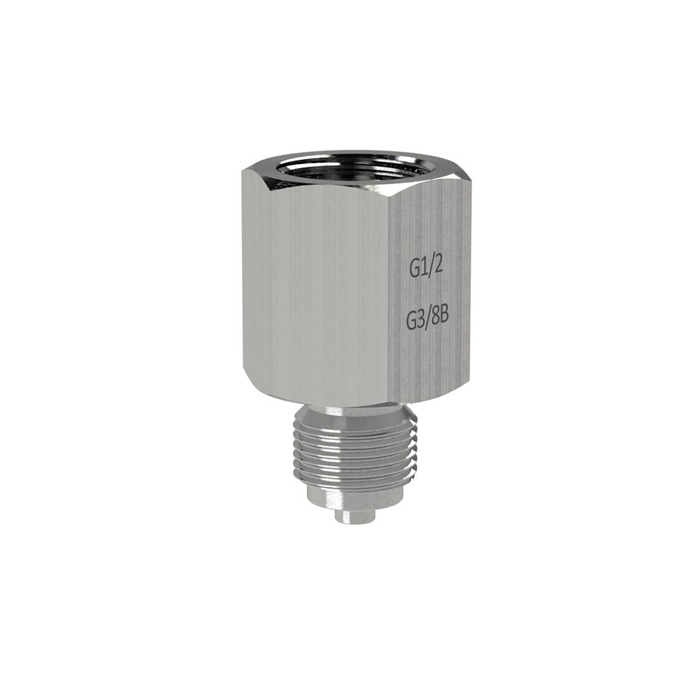

![[117285] RIEGLER Pressure gauge connection nipple, ES, G 1/2 socket, G 3/8 spigot](/web/image/product.template/274830/image_128/%5B117285%5D%20RIEGLER%20Pressure%20gauge%20connection%20nipple%2C%20ES%2C%20G%201-2%20socket%2C%20G%203-8%20spigot?unique=86b51dd)
|
Type number: 257.27-ES |
64.07 € | |
![[123289] RIEGLER Pressure gauge connection nipple, ES, G 1/2 socket, G 1/4 spigot](/web/image/product.template/281004/image_128/%5B123289%5D%20RIEGLER%20Pressure%20gauge%20connection%20nipple%2C%20ES%2C%20G%201-2%20socket%2C%20G%201-4%20spigot?unique=ac59de8)
|
Type number: 257.26-ES |
71.19 € | |

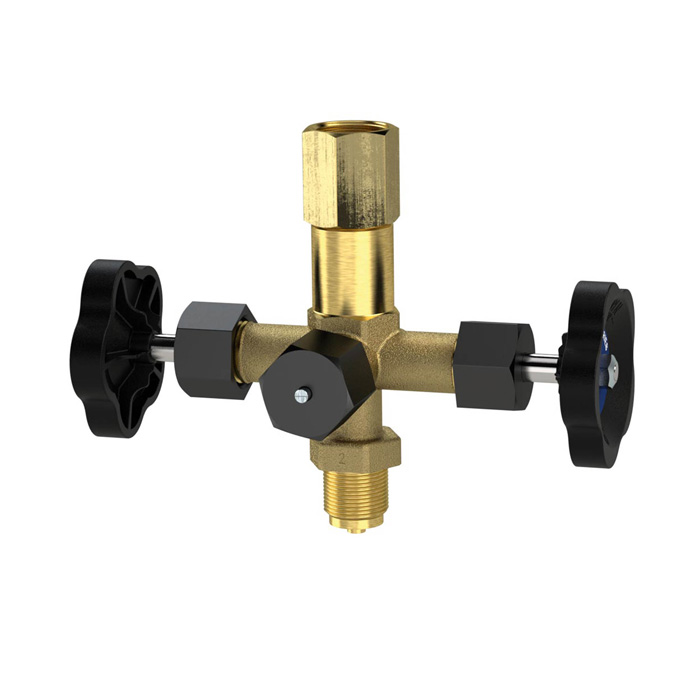

![[133464] RIEGLER Mano-Dop. shut-off valve, spigot-turnable socket G 1/2, ES 1.4571](/web/image/product.template/278484/image_128/%5B133464%5D%20RIEGLER%20Mano-Dop.%20shut-off%20valve%2C%20spigot-turnable%20socket%20G%201-2%2C%20ES%201.4571?unique=5ed991f)
|
Type number: MAVES12B |
320.10 € | |
![[135444] RIEGLER Pressure gauge connection nipple, ES, G 1/2 socket, M20x1.5 spigot](/web/image/product.template/278492/image_128/%5B135444%5D%20RIEGLER%20Pressure%20gauge%20connection%20nipple%2C%20ES%2C%20G%201-2%20socket%2C%20M20x1.5%20spigot?unique=c6637bf)
|
Type number: 257.30-ES |
71.19 € | |
![[137905] RIEGLER Silicone housing protection cap for digital pressure gauge type CPG1200](/web/image/product.template/278543/image_128/%5B137905%5D%20RIEGLER%20Silicone%20housing%20protection%20cap%20for%20digital%20pressure%20gauge%20type%20CPG1200?unique=20debeb)
|
Type number: SK.CPG1200.EX |
34.68 € | |
![[137908] RIEGLER Micro USB type B to USB cable for digital pressure gauge type CPG1200](/web/image/product.template/278544/image_128/%5B137908%5D%20RIEGLER%20Micro%20USB%20type%20B%20to%20USB%20cable%20for%20digital%20pressure%20gauge%20type%20CPG1200?unique=b01830e)
|
Type number: MUSBK.CPG1200 |
48.56 € | |
![[138438] RIEGLER USB power supply unit DC 5 V with micro USB type B plug, for type CPG1200](/web/image/product.template/278545/image_128/%5B138438%5D%20RIEGLER%20USB%20power%20supply%20unit%20DC%205%20V%20with%20micro%20USB%20type%20B%20plug%2C%20for%20type%20CPG1200?unique=5002d15)
|
Type number: USBN.CPG1200 |
63.77 € | |
![[138459] RIEGLER Bluetooth® USB stick for digital pressure gauge type CPG1200](/web/image/product.template/278546/image_128/%5B138459%5D%20RIEGLER%20Bluetooth%C2%AE%20USB%20stick%20for%20digital%20pressure%20gauge%20type%20CPG1200?unique=36b1b92)
|
Type number: USBS.CPG1200 |
69.39 € | |
![[138520] RIEGLER Plastic case for digital pressure gauge type CPG1200 or CPG1500](/web/image/product.template/278547/image_128/%5B138520%5D%20RIEGLER%20Plastic%20case%20for%20digital%20pressure%20gauge%20type%20CPG1200%20or%20CPG1500?unique=b2fdace)
|
Type number: K.CPG |
75.14 € | |

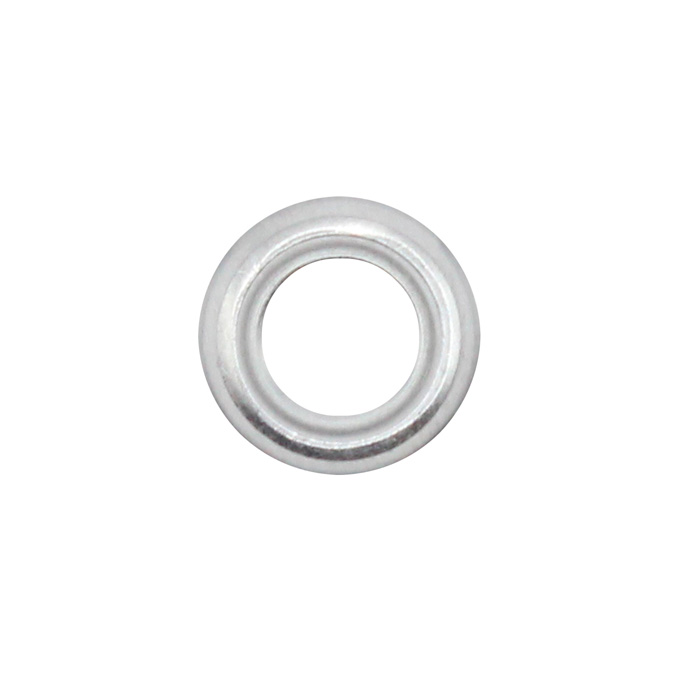

![[139319] RIEGLER Mano profile seal, for thread G 3/8, G 1/2, M20x1.5,ES 1.4571](/web/image/product.template/278580/image_128/%5B139319%5D%20RIEGLER%20Mano%20profile%20seal%2C%20for%20thread%20G%203-8%2C%20G%201-2%2C%20M20x1.5%2CES%201.4571?unique=1af6b75)
|
Type number: 257.03-ES |
7.22 € | |

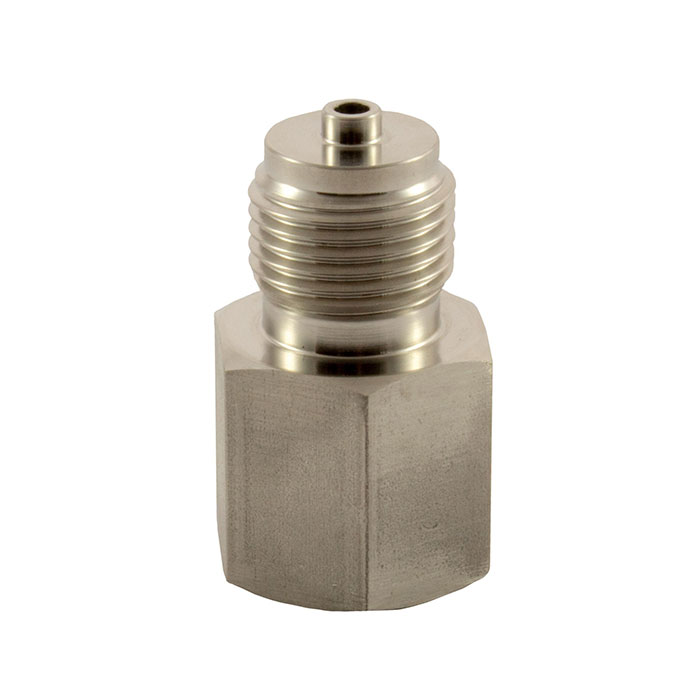

![[143860] RIEGLER Pressure gauge in-line filter, G 1/2 IT, G 1/2 ET, 200 µm](/web/image/product.template/210867/image_128/%5B143860%5D%20RIEGLER%20Pressure%20gauge%20in-line%20filter%2C%20G%201-2%20IT%2C%20G%201-2%20ET%2C%20200%20%C2%B5m?unique=ddeb9e2)
|
