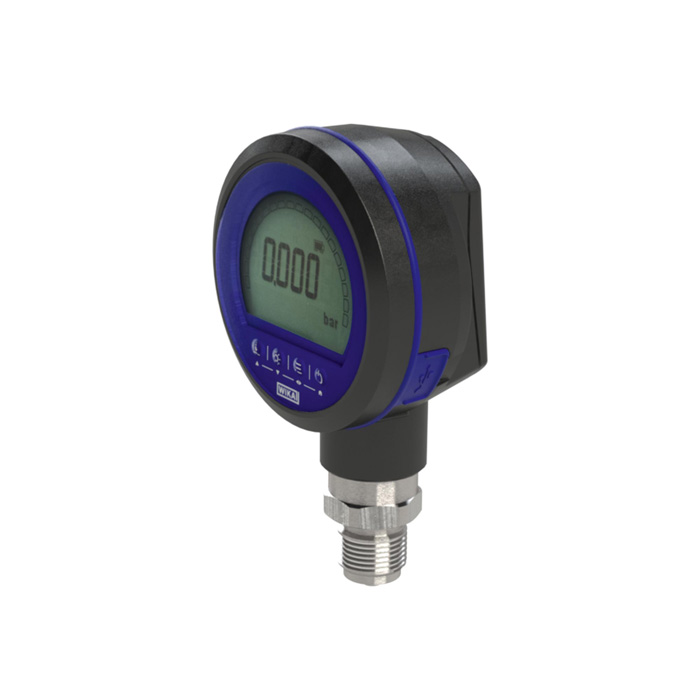

RIEGLER Digital pressure gauge, CPG1200, G 1/2, 0 - 100 bar, 0.5% FS, IP 65,PBT
Type number: CPG12.12.100.5
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Digital pressure gauge, type CPG1200, G 1/2, 0 - 100 bar, accuracy 0.5% FS, IP 65, housing PBT, operating temp. -10 to +50 °C
| Housing | PBT with 30% glass fiber content |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 50 °C |
| Wetted parts | CrNi steel 316L |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 50 °C |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 100 |
| Connection position | Vertical installation position, process connection at the bottom |
| Class name | PLUS |
| Process connection material | CrNi steel 316L |
| Housing protection cap | without |
| Memory | Min. / max. memory |
| Data transmission | Micro-USB type B |
| Backlight | can be activated via button |
| Pressure units | adjustable via menu |
| Battery life | approx. 4,000 h |
| Protection class | IP65 |
| Display | 4 1/2-digit 15-segment display |
| Ambient temperature min. | 15 °C |
| Ambient temperature max. | 25 °C |
| Type | CPG1200 |
| Accuracy | 0.5% FS |
| Process connection | G 1/2 |
| Power supply | 3x 1.5 V AA alkaline batteries |
