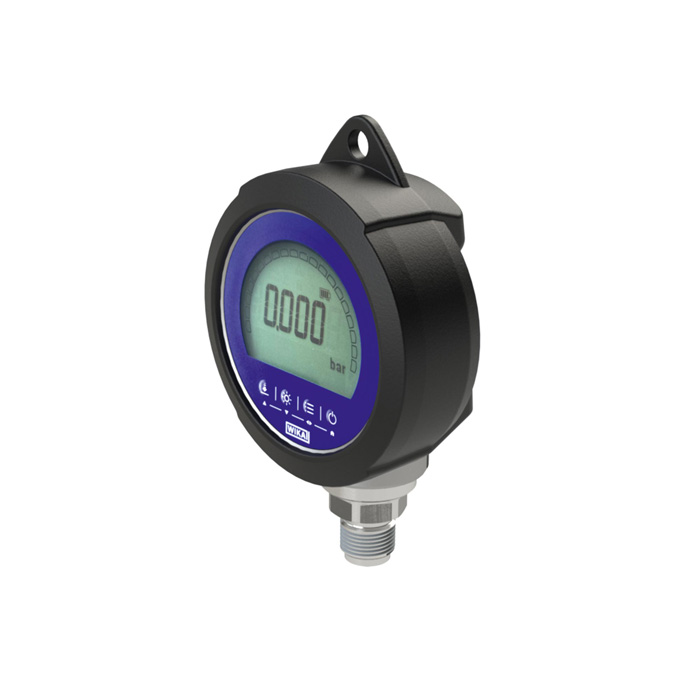

RIEGLER Digital pressure gauge, CPG1500, G 1/2, 0-100 bar, integrated data logger
Type number: CPG15.12.100.1.DL
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Digital pressure gauge made of die-cast aluminum, nickel-plated, for pressure measurement - type CPG15.12.100.1.DL
The RIEGLER digital pressure gauge, CPG1500, G 1/2, 0-100 bar, integrated data logger measures pressure or temperature reliably and precisely. The housing is made of die-cast aluminum, nickel-plated. The operating temperature is between -10 °C and 50 °C. Protection class IP65. Reliable measured values for safe processes.
Field of application
Typical areas of application: Pressure monitoring and temperature control.
| Housing | Die-cast aluminum, nickel-plated |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 50 °C |
| Wetted parts | CrNi steel 316L |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 50 °C |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 100 |
| Connection position | Vertical installation position, process connection at the bottom |
| Class name | MAX |
| Process connection material | CrNi steel 316L |
| Housing protection cap | enclosed |
| Memory | Integrated data logger |
| Data transmission | Bluetooth® |
| Backlight | adjustable via button |
| Pressure units | adjustable via menu |
| Battery life | approx. 2,000 - 2,500 h |
| Rotatability of housing | 330 ° |
| Calibration | 3.1 acceptance test certificate in accordance with EN 10204 (factory calibration) |
| Protection class | IP65 |
| Display | 5 1/2-digit 7-segment display |
| Ambient temperature min. | 15 °C |
| Ambient temperature max. | 25 °C |
| Type | CPG1500 |
| Accuracy | 0.1% FS |
| Process connection | G 1/2 |
| Power supply | 3x 1.5 V AA alkaline batteries |
