RIEGLER Digital pressure gauge, CPG1500, G 1/2, 0-400 bar, integrated data logger
Type number: CPG15.12.400.1.DL
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Digital pressure gauge, type CPG1500, G1/2, 0-400 bar, 0.1% FS, IP65, nickel-plated die-cast aluminum housing, incl. housing protection cap + data logger
| Housing | Die-cast aluminum, nickel-plated |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 50 °C |
| Wetted parts | CrNi steel 316L |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 50 °C |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 400 |
| Connection position | Vertical installation position, process connection at the bottom |
| Class name | MAX |
| Process connection material | CrNi steel 316L |
| Housing protection cap | enclosed |
| Memory | Integrated data logger |
| Data transmission | Bluetooth® |
| Backlight | adjustable via button |
| Pressure units | adjustable via menu |
| Battery life | approx. 2,000 - 2,500 h |
| Rotatability of housing | 330 ° |
| Calibration | 3.1 acceptance test certificate in accordance with EN 10204 (factory calibration) |
| Protection class | IP65 |
| Display | 5 1/2-digit 7-segment display |
| Ambient temperature min. | 15 °C |
| Ambient temperature max. | 25 °C |
| Type | CPG1500 |
| Accuracy | 0.1% FS |
| Process connection | G 1/2 |
| Power supply | 3x 1.5 V AA alkaline batteries |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[139121] RIEGLER Digital pressure gauge, CPG1500, G 1/2, 0-1000 bar, integrated data logger](/web/image/product.template/278567/image_128/%5B139121%5D%20RIEGLER%20Digital%20pressure%20gauge%2C%20CPG1500%2C%20G%201-2%2C%200-1000%20bar%2C%20integrated%20data%20logger?unique=6bcbb76)
|
Typennummer: CPG15.12.1000.1.DL |
1,162.05 € | |
![[139066] RIEGLER Digital pressure gauge, CPG1500, G 1/2, 0-100 bar, integrated data logger](/web/image/product.template/278563/image_128/%5B139066%5D%20RIEGLER%20Digital%20pressure%20gauge%2C%20CPG1500%2C%20G%201-2%2C%200-100%20bar%2C%20integrated%20data%20logger?unique=022c2f7)
|
Type number: CPG15.12.100.1.DL |
1,162.05 € | |
![[138928] RIEGLER Digital pressure gauge, CPG1500, G 1/2, 0 - 10 bar, integrated data logger](/web/image/product.template/278558/image_128/%5B138928%5D%20RIEGLER%20Digital%20pressure%20gauge%2C%20CPG1500%2C%20G%201-2%2C%200%20-%2010%20bar%2C%20integrated%20data%20logger?unique=49bff99)
|
Type number: CPG15.12.10.1.DL |
1,162.05 € | |
![[138929] RIEGLER Digital pressure gauge, CPG1500, G 1/2, 0 - 16 bar, integrated data logger](/web/image/product.template/278559/image_128/%5B138929%5D%20RIEGLER%20Digital%20pressure%20gauge%2C%20CPG1500%2C%20G%201-2%2C%200%20-%2016%20bar%2C%20integrated%20data%20logger?unique=c034928)
|
Type number: CPG15.12.16.1.DL |
1,162.05 € | |
![[139093] RIEGLER Digital pressure gauge, CPG1500, G 1/2, 0-250 bar, integrated data logger](/web/image/product.template/278564/image_128/%5B139093%5D%20RIEGLER%20Digital%20pressure%20gauge%2C%20CPG1500%2C%20G%201-2%2C%200-250%20bar%2C%20integrated%20data%20logger?unique=78c3445)
|
Type number: CPG15.12.250.1.DL |
1,162.05 € | |

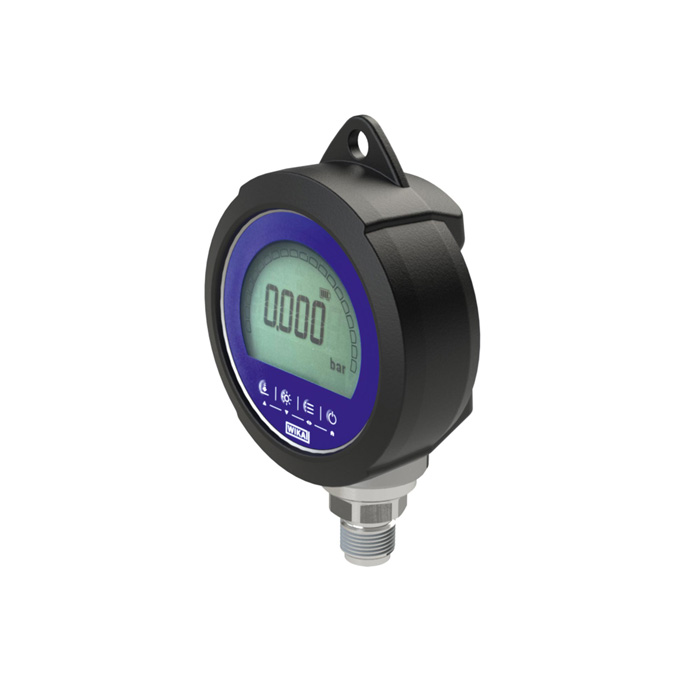

![[139041] RIEGLER Digital pressure gauge, CPG1500, G 1/2, 0 - 25 bar, integrated data logger](/web/image/product.template/278560/image_128/%5B139041%5D%20RIEGLER%20Digital%20pressure%20gauge%2C%20CPG1500%2C%20G%201-2%2C%200%20-%2025%20bar%2C%20integrated%20data%20logger?unique=b2e15d2)
|
Type number: CPG15.12.25.1.DL |
1,162.05 € | |
![[139120] RIEGLER Digital pressure gauge, CPG1500, G 1/2, 0-600 bar, integrated data logger](/web/image/product.template/278566/image_128/%5B139120%5D%20RIEGLER%20Digital%20pressure%20gauge%2C%20CPG1500%2C%20G%201-2%2C%200-600%20bar%2C%20integrated%20data%20logger?unique=c7ce0eb)
|
Type number: CPG15.12.600.1.DL |
1,162.05 € | |
![[139052] RIEGLER Digital pressure gauge, CPG1500, G 1/2, 0 - 60 bar, integrated data logger](/web/image/product.template/278562/image_128/%5B139052%5D%20RIEGLER%20Digital%20pressure%20gauge%2C%20CPG1500%2C%20G%201-2%2C%200%20-%2060%20bar%2C%20integrated%20data%20logger?unique=4520887)
|
Type number: CPG15.12.60.1.DL |
1,162.05 € | |
![[139042] RIEGLER Digital pressure gauge, CPG1500, G 1/2, -1/40 bar, integrated data logger](/web/image/product.template/278561/image_128/%5B139042%5D%20RIEGLER%20Digital%20pressure%20gauge%2C%20CPG1500%2C%20G%201-2%2C%20-1-40%20bar%2C%20integrated%20data%20logger?unique=900a9eb)
|
Typennummer: CPG15.12.-140.1.DL |
1,162.05 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[139137] RIEGLER Silicone housing protection cap for digital pressure gauge type CPG1500](/web/image/product.template/278569/image_128/%5B139137%5D%20RIEGLER%20Silicone%20housing%20protection%20cap%20for%20digital%20pressure%20gauge%20type%20CPG1500?unique=5243e07)
|
Type number: SK.CPG1500.EX |
66.09 € | |
