RIEGLER Hose rupture valve »Hose Guard« G 1/2 IT/IT
Type number: 2223.12
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Hose rupture protection "Hose Guard" made of aluminum, for compressed air distribution, G 1/2 IG/IG - Type 2223.12
The RIEGLER Hose Guard, aluminum/polyacetate, G 1/2 IG/IG, flexibly and reliably conducts compressed air from the compressor to the consumer. The housing is made of aluminum with NBR seals. The maximum inlet pressure is 18 bar. The operating temperature is between -20 °C and 80 °C. Connection thread G 1/2 IG/IG - suitable for common industry standards. Flexible, pressure-resistant and suitable for various media.
Field of application
Typical areas of application: Compressed air distribution in workshops and production.
| Inlet pressure max. | 18 bar |
| Housing | Aluminum |
| Sealing material | NBR |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 80 °C |
| Thread | G 1/2 IG/IG |
| SW | 30 mm |
| Length | 65 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Piston | Polyacetate |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Theme shop | SAFETY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

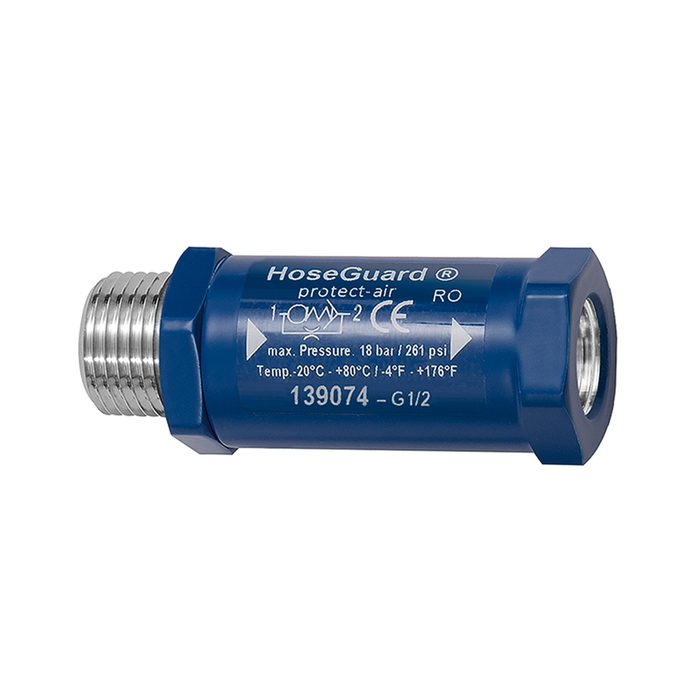

![[139074] RIEGLER Hose rupture valve »Hose Guard« G 1/2 ET/IT](/web/image/product.template/207960/image_128/%5B139074%5D%20RIEGLER%20Hose%20rupture%20valve%20%C2%BBHose%20Guard%C2%AB%20G%201-2%20ET-IT?unique=303c313)
|
