RIEGLER Hose rupture valve »Hose Guard« G 3/4 IT/IT
Type number: 2223.34
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Hose rupture protection "Hose Guard", aluminum, aluminum piston, operating temp. -20 °C to 120 °C, G 3/4 IG/IG, PE max. 18 bar
| Inlet pressure max. | 18 bar |
| Housing | Aluminum |
| Sealing material | NBR |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 120 °C |
| Thread | G 3/4 IG/IG |
| SW | 30 mm |
| Length | 76 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Piston | Aluminum |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Theme shop | SAFETY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[139074] RIEGLER Hose rupture valve »Hose Guard« G 1/2 ET/IT](/web/image/product.template/207960/image_128/%5B139074%5D%20RIEGLER%20Hose%20rupture%20valve%20%C2%BBHose%20Guard%C2%AB%20G%201-2%20ET-IT?unique=038048c)
|
Type number: 2222.12 |
46.30 € | |
![[139077] RIEGLER Hose rupture valve »Hose Guard« G 1/2 IT/IT](/web/image/product.template/207963/image_128/%5B139077%5D%20RIEGLER%20Hose%20rupture%20valve%20%C2%BBHose%20Guard%C2%AB%20G%201-2%20IT-IT?unique=46020dc)
|
Type number: 2223.12 |
46.36 € | |

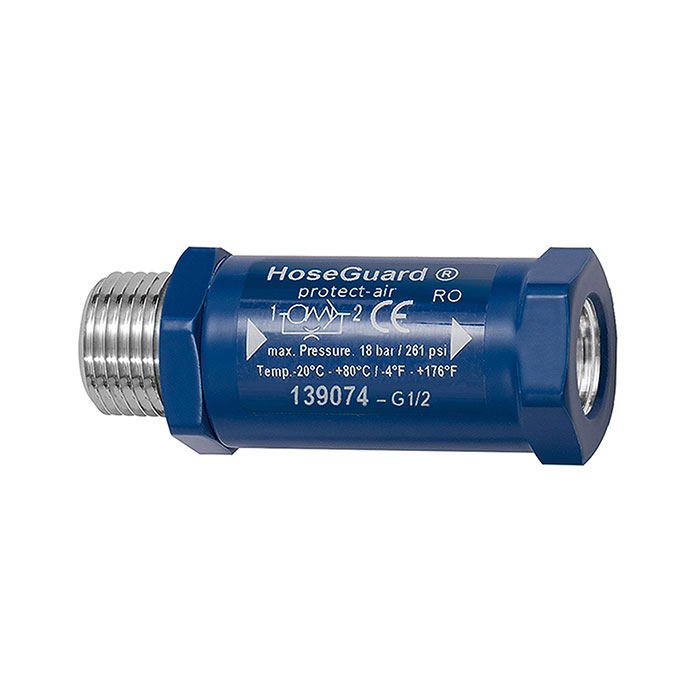

![[139072] RIEGLER Hose rupture valve »Hose Guard« G 1/4 ET/IT](/web/image/product.template/207958/image_128/%5B139072%5D%20RIEGLER%20Hose%20rupture%20valve%20%C2%BBHose%20Guard%C2%AB%20G%201-4%20ET-IT?unique=6c83f59)
|
Type number: 2222.14 |
29.62 € | |
![[139075] RIEGLER Hose rupture valve »Hose Guard« G 1/4 IT/IT](/web/image/product.template/207961/image_128/%5B139075%5D%20RIEGLER%20Hose%20rupture%20valve%20%C2%BBHose%20Guard%C2%AB%20G%201-4%20IT-IT?unique=6563959)
|
Type number: 2223.14 |
29.86 € | |

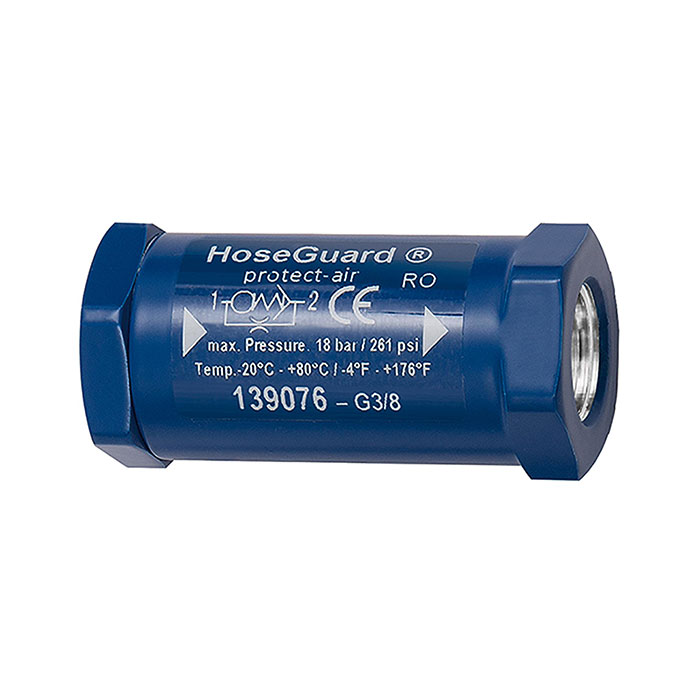

![[139079] RIEGLER Hose rupture valve »Hose Guard« G 1 IT/IT](/web/image/product.template/207965/image_128/%5B139079%5D%20RIEGLER%20Hose%20rupture%20valve%20%C2%BBHose%20Guard%C2%AB%20G%201%20IT-IT?unique=0d0be06)
|
Type number: 2222.10 |
185.25 € | |
![[139080] RIEGLER Hose rupture valve »Hose Guard« G 2 IT/IT](/web/image/product.template/207966/image_128/%5B139080%5D%20RIEGLER%20Hose%20rupture%20valve%20%C2%BBHose%20Guard%C2%AB%20G%202%20IT-IT?unique=e7e9176)
|
Type number: 2222.20 |
1,080.63 € | |
![[139073] RIEGLER Hose rupture valve »Hose Guard« G 3/8 ET/IT](/web/image/product.template/207959/image_128/%5B139073%5D%20RIEGLER%20Hose%20rupture%20valve%20%C2%BBHose%20Guard%C2%AB%20G%203-8%20ET-IT?unique=70cd535)
|
Type number: 2222.38 |
39.75 € | |
![[139076] RIEGLER Hose rupture valve »Hose Guard« G 3/8 IT/IT](/web/image/product.template/207962/image_128/%5B139076%5D%20RIEGLER%20Hose%20rupture%20valve%20%C2%BBHose%20Guard%C2%AB%20G%203-8%20IT-IT?unique=347e7ec)
|
Type number: 2223.38 |
39.35 € | |
