RIEGLER Distributor »FUTURA«, Size 2, G 3/8, Pressure switch 0.5 - 10 bar
Type number: FU 943-DS10
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER FUTURA" manifold made of PA66 GF60, for compressed air preparation, G 3/8 - type FU 943-DS10
The RIEGLER "FUTURA" manifold, BG 2, G 3/8, with pressure switch 0.5 - 10 bar adds additional modular functions to maintenance systems. The housing is made of PA66 GF60. The maximum inlet pressure is 16 bar. The temperature range is between -10 °C and 50 °C. Connection thread G 3/8 - suitable for common industry standards. Suitable for compressed air, neutral gases. The flow rate is 7250 l/min (at P1 = 6 bar and pressure drop Δp = 1 bar). Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Thread | G 3/8 |
| Flow rate | 7250 l/min |
| Departure | 2 x G 3/8, 1 x G 1/2 |
| Setting range min. | 0.5 bar |
| BG | 2 |
| A | 63 mm |
| B | 150.5 mm |
| C | 113 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6b-I, 6c |
| REACH Info | contains SVHC substance |
| Setting range max. | 10 bar |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | MAX |
| REACH SVHC2 Substance Name | 6,6'-Di-tert-butyl-2,2'-methylenedi-p-cresol |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

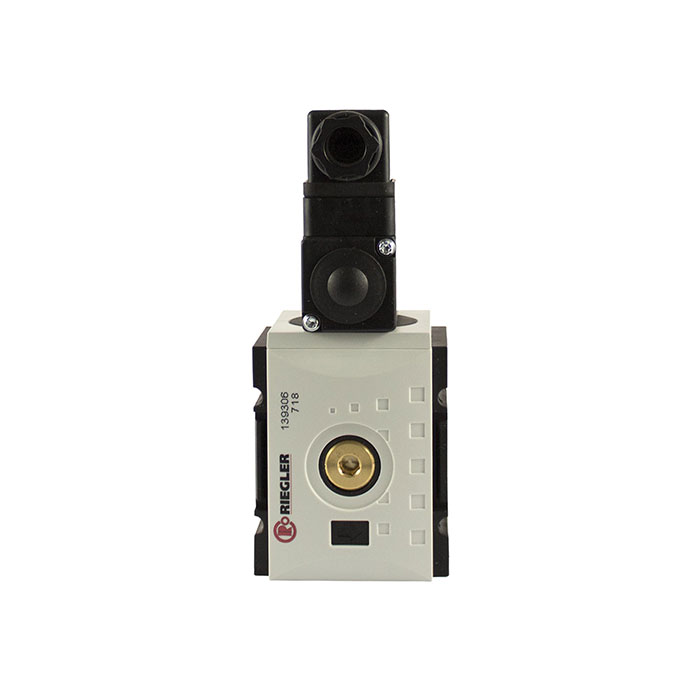

![[139306] RIEGLER Distributor »FUTURA«, Size 2, G 1/2, Pressure switch 0.5 - 10 bar](/web/image/product.template/207969/image_128/%5B139306%5D%20RIEGLER%20Distributor%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%201-2%2C%20Pressure%20switch%200.5%20-%2010%20bar?unique=c105744)
|
Type number: FU 944-DS10 |
104.05 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

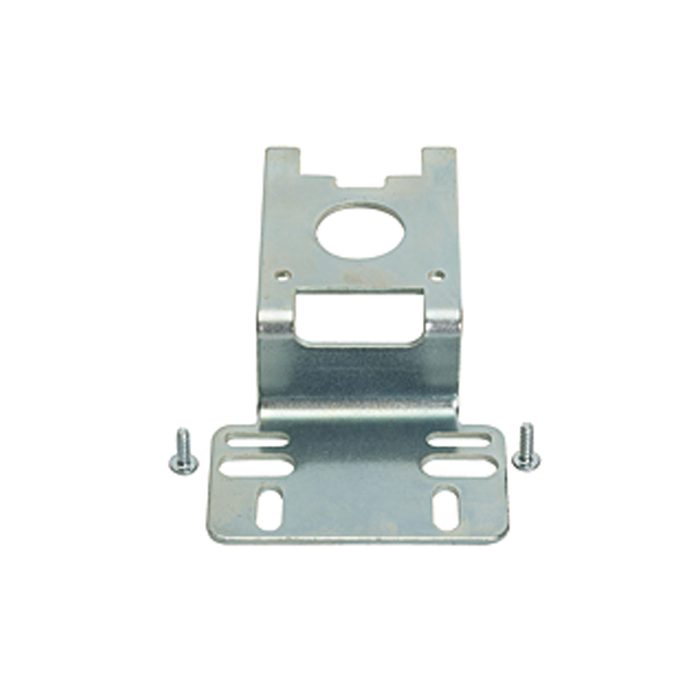

![[100043] Riegler Mounting bracket incl. 2 screws, for »FUTURA«, Size 2](/web/image/product.template/118205/image_128/%5B100043%5D%20Riegler%20Mounting%20bracket%20incl.%202%20screws%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=7054369)
|
Type number: H 852 |
10.22 € | |

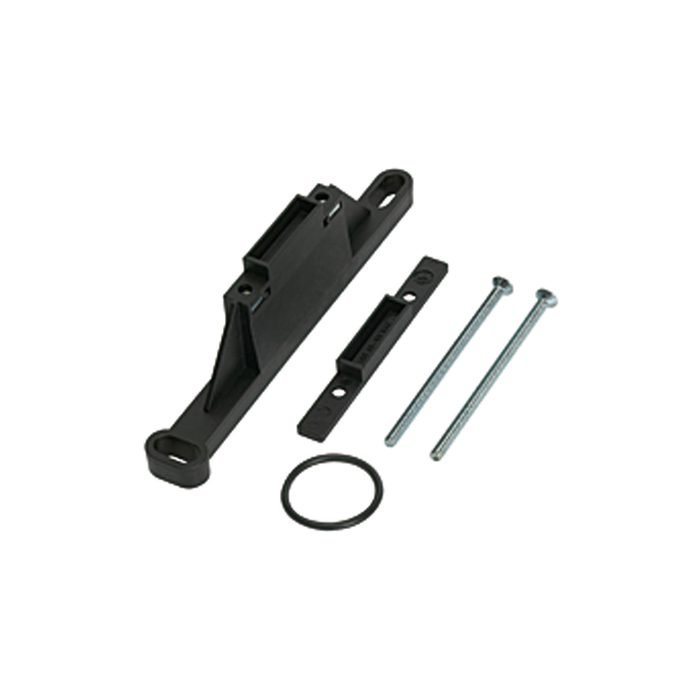

![[100044] Riegler Wall console incl. 2 screws and O-ring, for »FUTURA«, Size 2](/web/image/product.template/118206/image_128/%5B100044%5D%20Riegler%20Wall%20console%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=4456e19)
|
Type number: WK 102 |
5.13 € | |
![[100045] Riegler Blocking set incl. 2 screws and O-ring, for »FUTURA«, Size 2](/web/image/product.template/118207/image_128/%5B100045%5D%20Riegler%20Blocking%20set%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=f763e9e)
|
Type number: KP 200 |
2.58 € | |
![[100331] RIEGLER Wall console with connection thread G 3/8, for »FUTURA«, Size 2](/web/image/product.template/139765/image_128/%5B100331%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%203-8%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=9b5316d)
|
Type number: WK 102-38 |
42.36 € | |
![[100332] RIEGLER Wall console with connection thread G 1/2, for »FUTURA«, Size 2](/web/image/product.template/139766/image_128/%5B100332%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%201-2%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=fa5d595)
|
Type number: WK 102-12 |
42.36 € | |
![[100333] RIEGLER Wall console with connection thread G 3/4, for »FUTURA«, Size 2](/web/image/product.template/139767/image_128/%5B100333%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%203-4%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=8015906)
|
Type number: WK 102-34 |
42.36 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

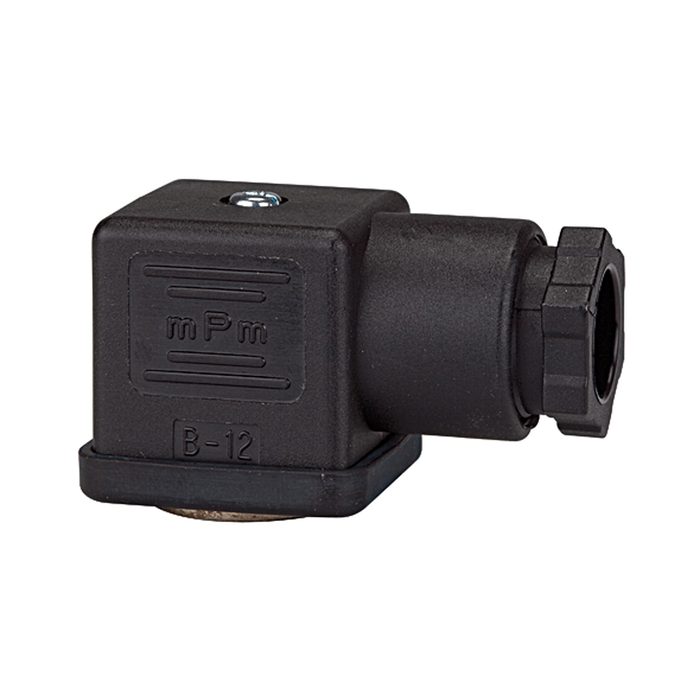

![[100282] RIEGLER Equipment plug for pressure switch, acc. to DIN EN 175301-803 A](/web/image/product.template/139717/image_128/%5B100282%5D%20RIEGLER%20Equipment%20plug%20for%20pressure%20switch%2C%20acc.%20to%20DIN%20EN%20175301-803%20A?unique=3f9107c)
|
