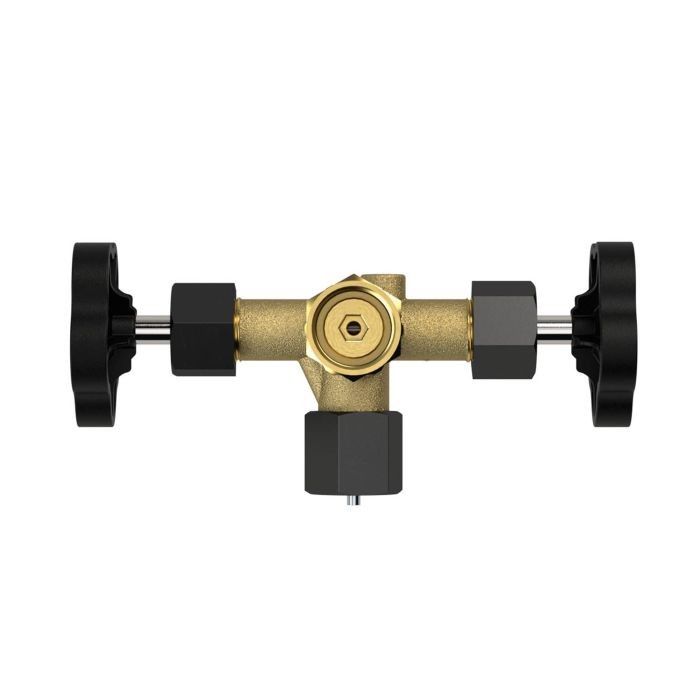

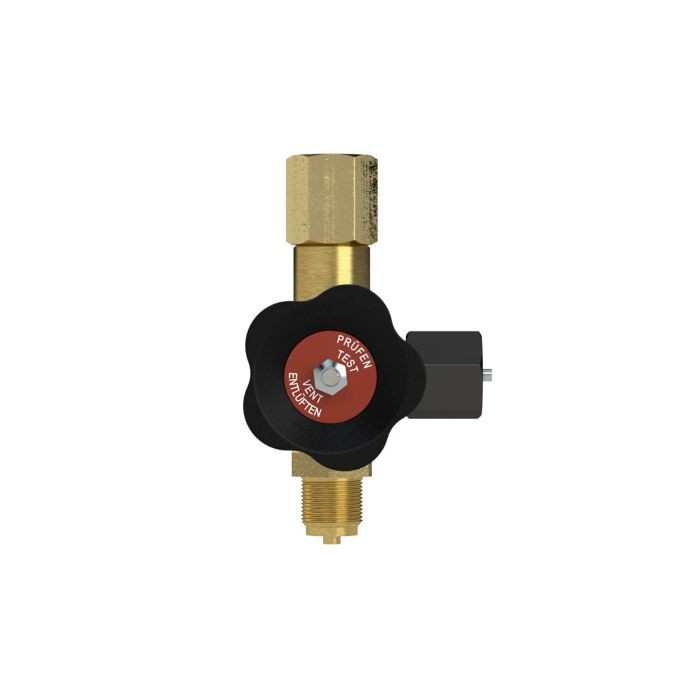

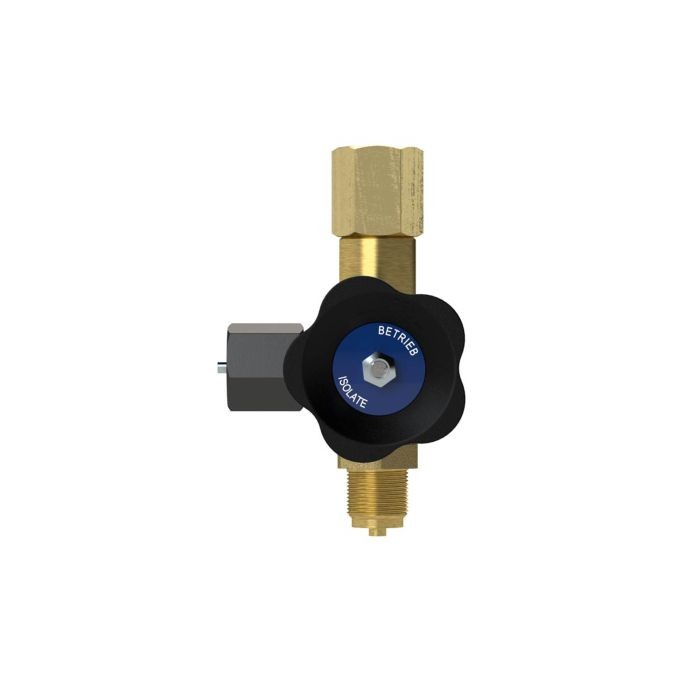

RIEGLER Mano-Dop. shut-off valve, spigot clamping sleeve G 1/2, brass
Type number: MAVM12A
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
140261EAN :
4047322153423Category :
Accessories for Pressure GaugesWeight :
0.99 kgRIEGLER Mano-Dop. shut-off valves made of brass, for pressure measurement, G 1/2 - type MAVM12A
The RIEGLER Mano-Dop. shut-off valve, spigot clamping sleeve G 1/2, brass adds protection and connection functions to pressure gauges. The housing is made of brass with PTFE seals. The operating temperature is between -10 °C and 120 °C. Connection thread G 1/2 - suitable for common industry standards. Protection and functional extension for pressure gauges.
Field of application
Typical areas of application: Professional pressure gauge installation.
| Housing | Brass |
| Sealing material | PTFE |
| Handwheel | Plastic |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 120 °C |
| Thread | G 1/2 |
| SW | 27 mm |
| Material | Brass |
| PN | 250 bar |
| Execution | Spigot / clamping sleeve |
| Valve cone | Stainless steel |
| Union nut | Steel |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

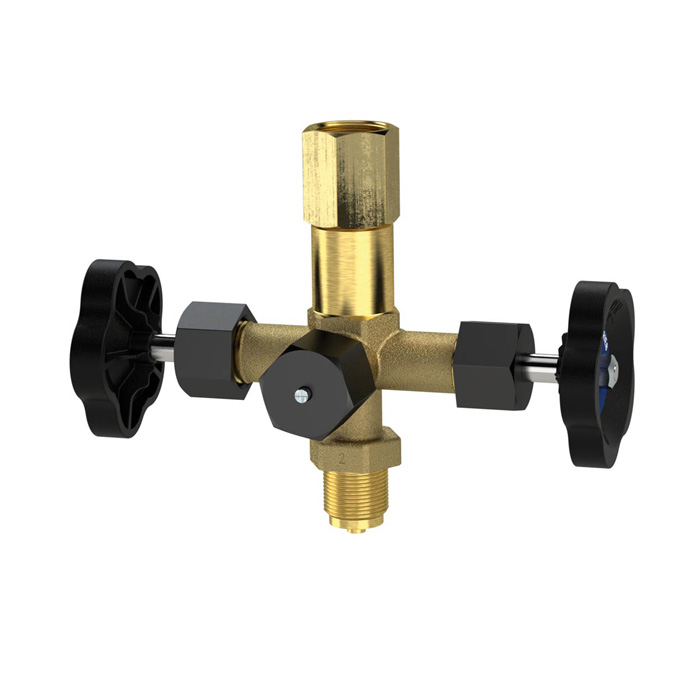

![[169712] RIEGLER Mano-Dop. shut-off valve, spigot clamping sleeve G 1/2, ES 1.4571](/web/image/product.template/276010/image_128/%5B169712%5D%20RIEGLER%20Mano-Dop.%20shut-off%20valve%2C%20spigot%20clamping%20sleeve%20G%201-2%2C%20ES%201.4571?unique=f19716d)
|
