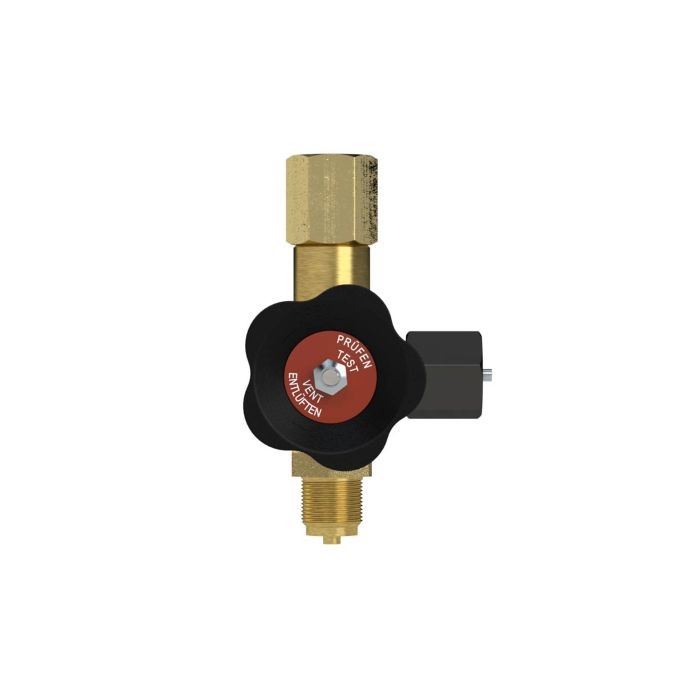

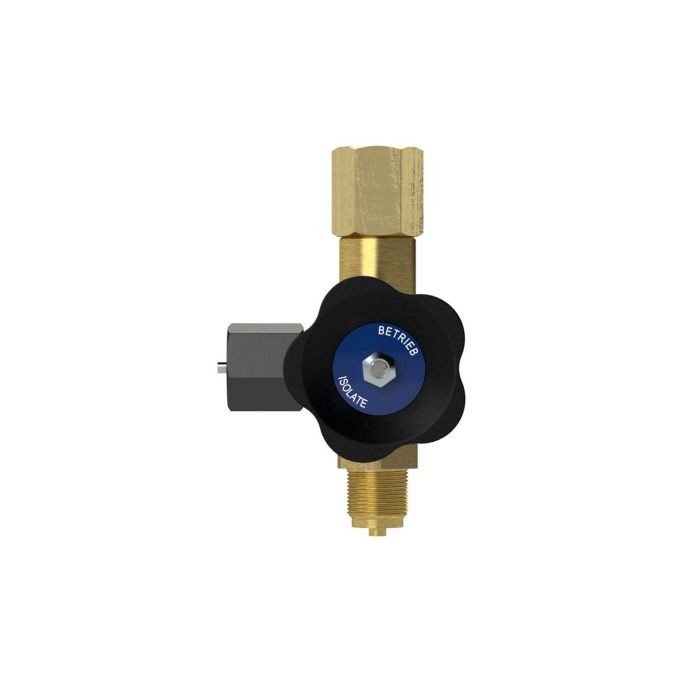

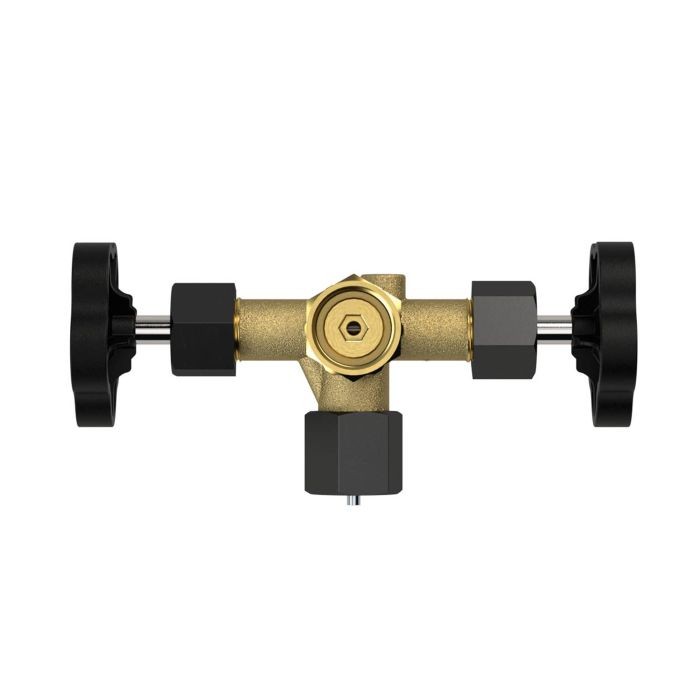

RIEGLER Mano-Dop. shut-off valve, spigot clamping sleeve G 1/2, steel
Typennummer: MAVS12A
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
201996EAN :
4047322693424Category :
Accessories for Pressure GaugesWeight :
0.92 kgRIEGLER Mano-Dop. shut-off valves made of steel, for pressure measurement, G 1/2 - type MAVS12A
The RIEGLER Mano-Dop. shut-off valve, spigot clamping sleeve G 1/2, steel adds protection and connection functions to pressure gauges. The housing is made of steel with PTFE seals. The operating temperature is between -10 °C and 120 °C. G 1/2 connection thread - suitable for common industry standards. Protection and functional extension for pressure gauges.
Field of application
Typical areas of application: Professional pressure gauge installation.
| Housing | Steel |
| Sealing material | PTFE |
| Handwheel | Plastic |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 120 °C |
| Thread | G 1/2 |
| SW | 27 mm |
| Material | Steel |
| PN | 400 bar |
| Execution | Spigot / clamping sleeve |
| Valve cone | Stainless steel |
| Union nut | Steel |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[140261] RIEGLER Mano-Dop. shut-off valve, spigot clamping sleeve G 1/2, brass](/web/image/product.template/277654/image_128/%5B140261%5D%20RIEGLER%20Mano-Dop.%20shut-off%20valve%2C%20spigot%20clamping%20sleeve%20G%201-2%2C%20brass?unique=ad78536)
|
Type number: MAVM12A |
139.43 € | |

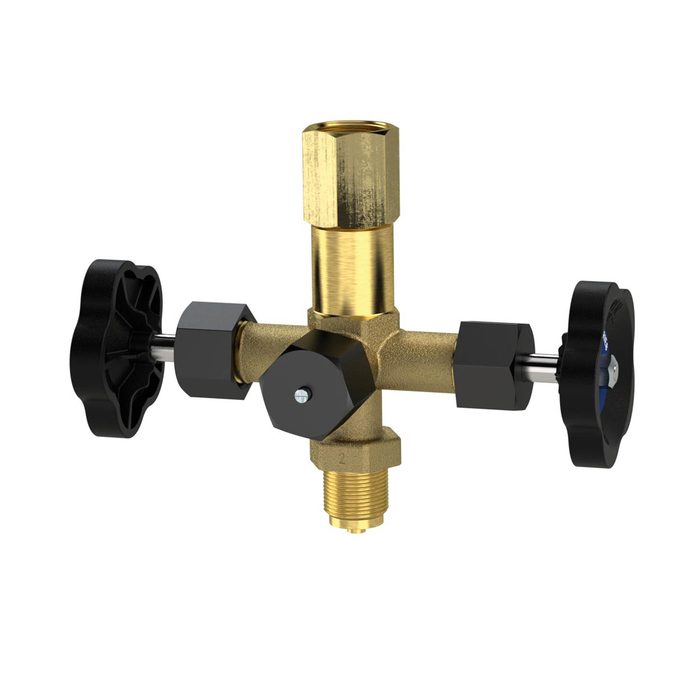

![[169712] RIEGLER Mano-Dop. shut-off valve, spigot clamping sleeve G 1/2, ES 1.4571](/web/image/product.template/276010/image_128/%5B169712%5D%20RIEGLER%20Mano-Dop.%20shut-off%20valve%2C%20spigot%20clamping%20sleeve%20G%201-2%2C%20ES%201.4571?unique=f19716d)
|
