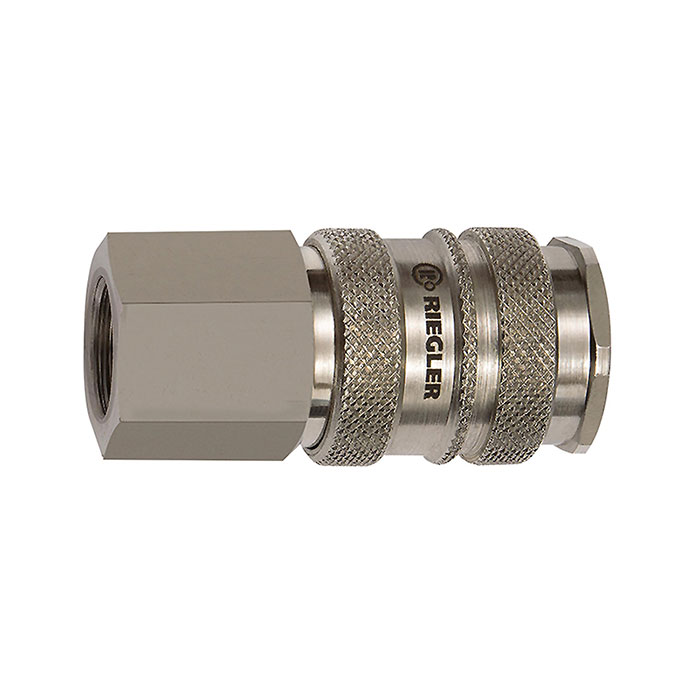

RIEGLER Quick-connect coupl. I.D. 10, Steel/nickel-plated brass, G 1/2 IT
Type number: 241.53-E
EAN: 4047322568289
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
141557EAN :
4047322568289Weight :
0.10 kgQuick-release coupling NW 10, nickel-plated steel/brass, G 1/2 female thread, operating pressure 0-35 bar, medium/ambient temp. -20 °C to 100 °C
| Housing | Nickel-plated brass |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 100 °C |
| Flow rate | 3500 l/min (air) |
| Spring | Stainless steel |
| Sleeve | Galvanized steel |
| Threaded piece | Nickel-plated brass |
| Valve | Nickel-plated brass |
| Operating pressure | 0 - 35 bar |
| SW | 24 mm |
| NW | 10 |
| Length | 62 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/2 IG |
| RoHS material information | RoHS compliant |
| Exception | 6a, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | 1.0% w/w and < 10.0% |
| Class name | PLUS |
