RIEGLER Quick-connect coupl. I.D. 10, Steel/nickel-plated brass, G 3/4 IT
Type number: 241.54-E
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
141558EAN :
4047322568296Weight :
0.19 kgRIEGLER Quick-release coupling made of nickel-plated brass, for compressed air supply, G 3/4 female thread - Type 241.54-E
The RIEGLER quick-release coupling NW 10, steel / nickel-plated brass, G 3/4 female thread connects and disconnects compressed air lines with a single movement - automatic sealing when disconnecting. The housing is made of nickel-plated brass with NBR seals. The permissible medium temperature is between -20 °C and 100 °C. Connection thread G 3/4 IG - suitable for common industry standards. The flow rate is 3500 l/min (air) (at 6 bar and Δp = 0.5 bar). Connects and disconnects in seconds without tools.
Field of application
Typical areas of application: Workshop, production and mobile compressed air supply.
| Housing | Nickel-plated brass |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 100 °C |
| Flow rate | 3500 l/min (air) |
| Spring | Stainless steel |
| Sleeve | Galvanized steel |
| Threaded piece | Nickel-plated brass |
| Valve | Nickel-plated brass |
| Operating pressure | 0 - 35 bar |
| SW | 30 mm |
| NW | 10 |
| Length | 66 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 3/4 IG |
| RoHS material information | RoHS compliant |
| Exception | 6a, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | 1.0% w/w and < 10.0% |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[141557] RIEGLER Quick-connect coupl. I.D. 10, Steel/nickel-plated brass, G 1/2 IT](/web/image/product.template/208189/image_128/%5B141557%5D%20RIEGLER%20Quick-connect%20coupl.%20I.D.%2010%2C%20Steel-nickel-plated%20brass%2C%20G%201-2%20IT?unique=7165bc5)
|
Type number: 241.53-E |
15.14 € | |

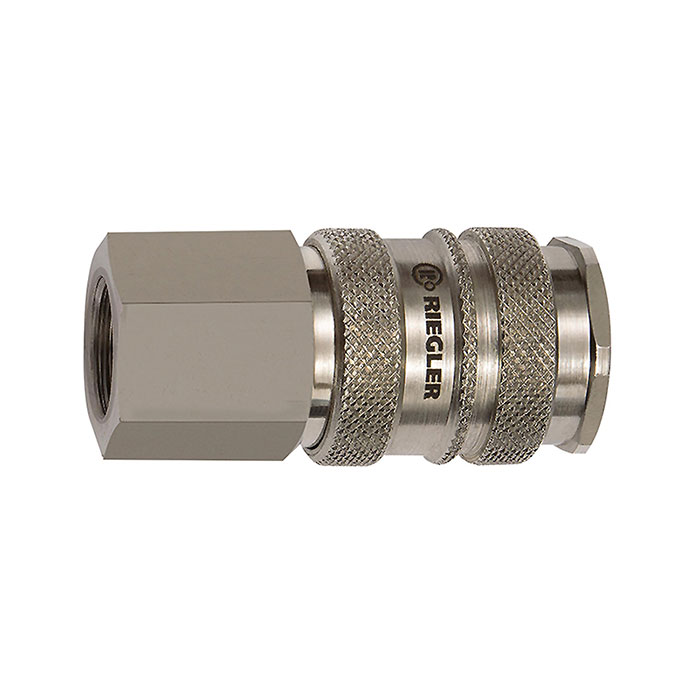

![[141556] RIEGLER Quick-connect coupl. I.D. 10, Steel/nickel-plated brass, G 3/8 IT](/web/image/product.template/208188/image_128/%5B141556%5D%20RIEGLER%20Quick-connect%20coupl.%20I.D.%2010%2C%20Steel-nickel-plated%20brass%2C%20G%203-8%20IT?unique=8297a69)
|
