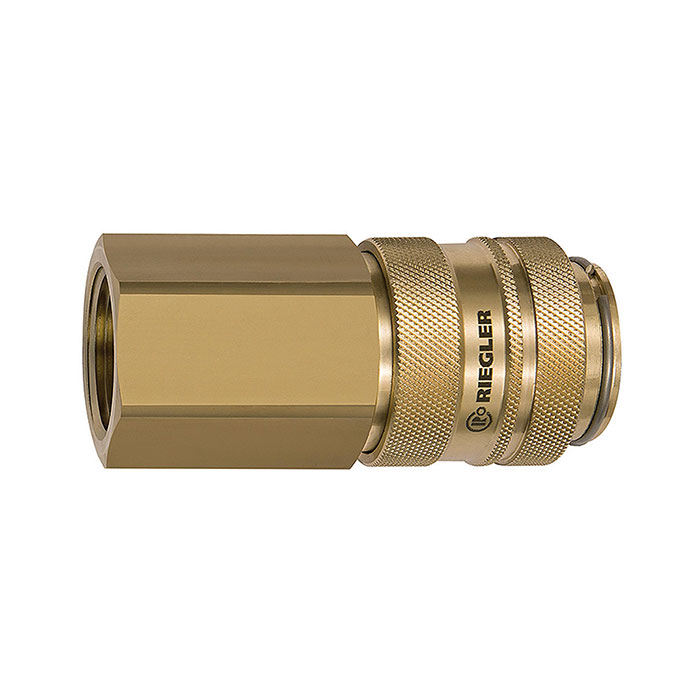

RIEGLER Quick-connect coupling I.D. 19, Bright brass, G 1 IT
Type number: 419.05
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
141565EAN :
4047322568371Weight :
0.62 kgRIEGLER Quick-release coupling made of bare brass, for compressed air supply, G 1 female thread - type 419.05
The RIEGLER quick-release coupling NW 19, blank brass, G 1 female thread connects and disconnects compressed air lines with a single movement - automatic sealing during disconnection. The housing is made of bright brass with NBR seals. The permissible medium temperature is between -20 °C and 100 °C. Connection thread G 1 IG - suitable for common industry standards. The flow rate is 8700 l/min (air) (at 6 bar and Δp = 0.5 bar). Connects and disconnects in seconds without tools.
Field of application
Typical areas of application: Workshop, production and mobile compressed air supply.
| Housing | Brass bright |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 100 °C |
| Flow rate | 8700 l/min (air) |
| Spring | Stainless steel |
| Sleeve | Brass bright |
| Threaded piece | Brass bright |
| Valve | Brass bright |
| Operating pressure | 0 - 35 bar |
| SW | 41 mm |
| NW | 19 |
| Length | 100 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1 IG |
| RoHS material information | RoHS compliant |
| Exception | 6a, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | 1.0% w/w and < 10.0% |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

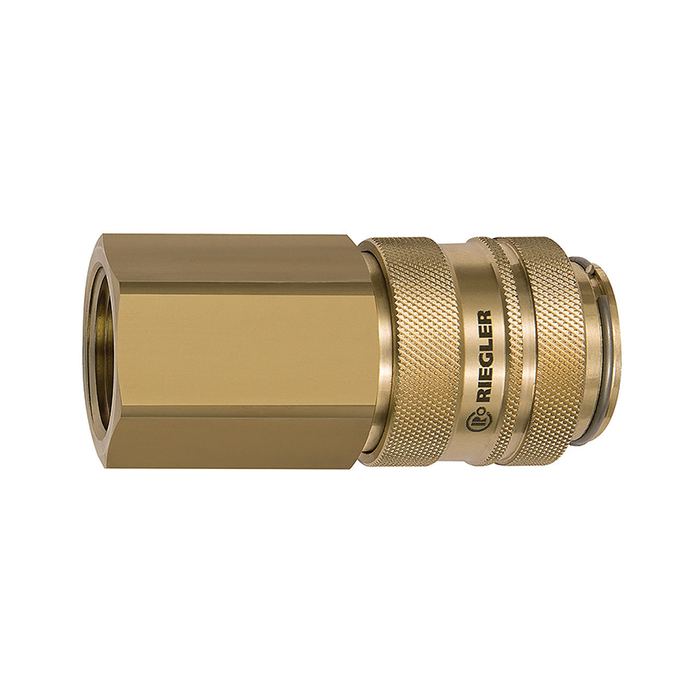

![[141566] RIEGLER Quick-connect coupling I.D. 19, Bright brass, G 1 1/4 IT](/web/image/product.template/208198/image_128/%5B141566%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%2019%2C%20Bright%20brass%2C%20G%201%201-4%20IT?unique=d0a2c31)
|
