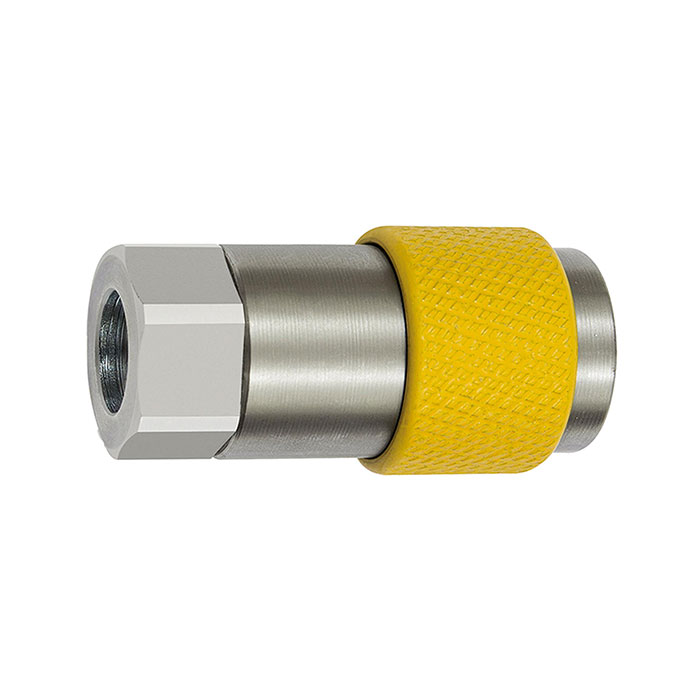

RIEGLER Captive swivel safety coupl. I.D. 6, ISO 6150 C, G 1/2 IT, yellow
Type number: 426.03-DREH-GE
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
141861EAN :
4047322564960Category :
Non-Interchangeable Quick-Lock CouplingsWeight :
0.15 kgUnverwechselbare Dreh-Sicherheitskupplung NW 6, ISO 6150 C, Stahl, 2-stufig, G 1/2 IG, gelb, max. 25 bar, Temp. -15 °C bis 200 °C
| Temperature range min. | -15 °C |
| Temperature range max. | 200 °C |
| Housing | Steel, QPQ treated |
| Sealing material | FKM |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Flow rate | 630 l/min (air) |
| Spring | Stainless steel |
| Sleeve | Galvanized steel, painted in colour |
| Threaded piece | Galvanized steel |
| Valve | Polyphenylene sulfide (PPS) |
| Operating pressure | max. 25 bar / max. 16 bar when engaging/disengaging |
| SW | 24 mm |
| Colour | yellow |
| NW | 6 |
| Length | 67 mm |
| Connection | G 1/2 IG |
| Connector profile | according to ISO 6150 C |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[141859] RIEGLER Captive swivel safety coupl. I.D. 6, ISO 6150 C, G 1/4 IT, yellow](/web/image/product.template/211232/image_128/%5B141859%5D%20RIEGLER%20Captive%20swivel%20safety%20coupl.%20I.D.%206%2C%20ISO%206150%20C%2C%20G%201-4%20IT%2C%20yellow?unique=21191b8)
|
Type number: 426.01-DREH-GE |
34.91 € | |
![[141860] RIEGLER Captive swivel safety coupl. I.D. 6, ISO 6150 C, G 3/8 IT, yellow](/web/image/product.template/211233/image_128/%5B141860%5D%20RIEGLER%20Captive%20swivel%20safety%20coupl.%20I.D.%206%2C%20ISO%206150%20C%2C%20G%203-8%20IT%2C%20yellow?unique=ee6d03e)
|
Type number: 426.02-DREH-GE |
34.91 € | |

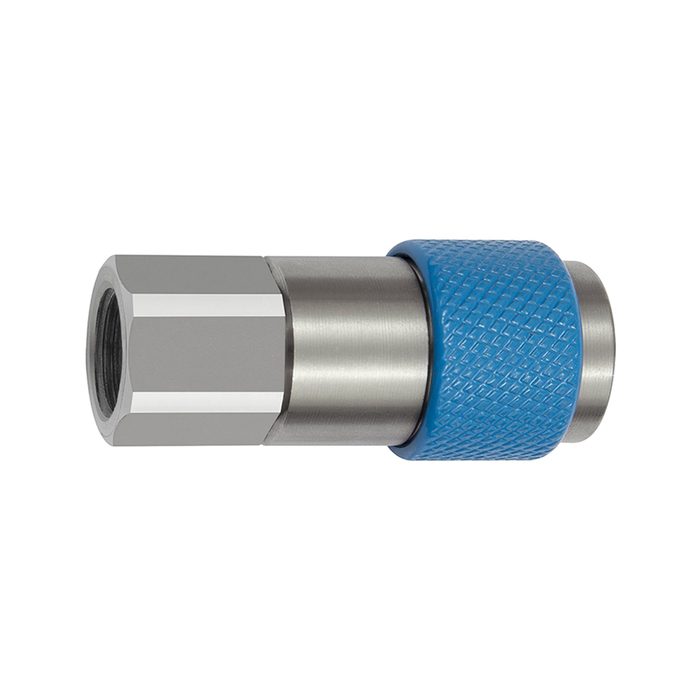

![[141887] RIEGLER Captive swivel safety coupling I.D. 6, ISO 6150 C, G 1/2 IT, blue](/web/image/product.template/211260/image_128/%5B141887%5D%20RIEGLER%20Captive%20swivel%20safety%20coupling%20I.D.%206%2C%20ISO%206150%20C%2C%20G%201-2%20IT%2C%20blue?unique=6c9ad23)
|
Type number: 426.03-DREH-B |
34.91 € | |
![[141874] RIEGLER Captive swivel safety coupling I.D. 6, ISO 6150 C, G 1/2 IT, gray](/web/image/product.template/211247/image_128/%5B141874%5D%20RIEGLER%20Captive%20swivel%20safety%20coupling%20I.D.%206%2C%20ISO%206150%20C%2C%20G%201-2%20IT%2C%20gray?unique=0b91d29)
|
Type number: 426.03-DREH-GR |
34.91 € | |
![[141848] RIEGLER Captive swivel safety coupling I.D. 6, ISO 6150 C, G 1/2 IT, red](/web/image/product.template/211221/image_128/%5B141848%5D%20RIEGLER%20Captive%20swivel%20safety%20coupling%20I.D.%206%2C%20ISO%206150%20C%2C%20G%201-2%20IT%2C%20red?unique=bdd2f66)
|
Type number: 426.03-DREH-R |
34.91 € | |

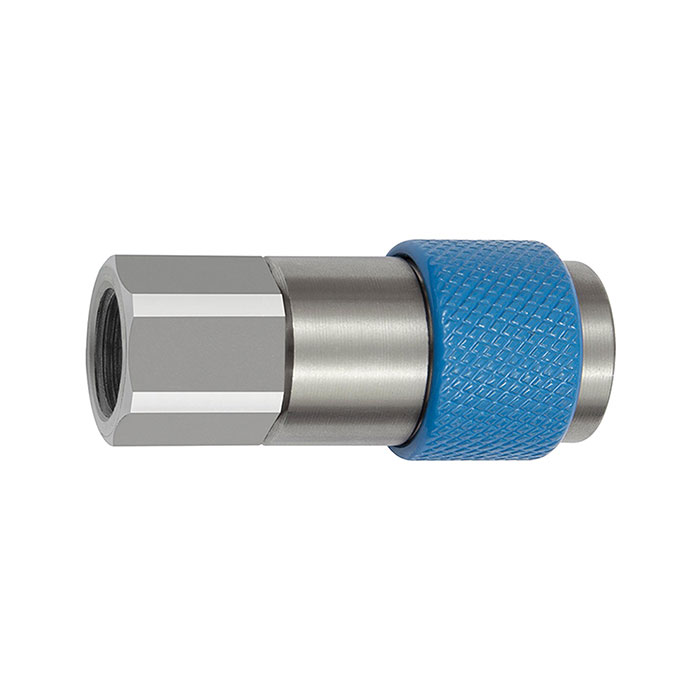

![[141885] RIEGLER Captive swivel safety coupling I.D. 6, ISO 6150 C, G 1/4 IT, blue](/web/image/product.template/211258/image_128/%5B141885%5D%20RIEGLER%20Captive%20swivel%20safety%20coupling%20I.D.%206%2C%20ISO%206150%20C%2C%20G%201-4%20IT%2C%20blue?unique=88a7d6d)
|
