RIEGLER Dirt strainer, Red brass, G 1 1/4, DN 32, Mesh width 0.6 mm
Type number: 60-6/K-0.6
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Strainer made of gunmetal, for industrial systems, max. 25 bar - Type 60-6/K-0.6
The RIEGLER strainer, gunmetal, G 1 1/4, DN 32, MW 0.6 mm traps impurities in pipes and protects fittings. The housing is made of gunmetal with FKM (FPM) O-ring seals. Designed for a maximum operating pressure of 25 bar. The operating temperature is between -10 °C and 150 °C. Connection thread G 1 1/4 - suitable for common industry standards. Protection of downstream fittings.
Field of application
Typical areas of application: Piping systems.
| Housing | Gunmetal |
| Sealing material | FKM (FPM) O-ring |
| Max. operating pressure | 25 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 150 °C |
| Head piece | Brass |
| Sieve insert | Single sieve insert made of stainless steel |
| Thread | G 1 1/4 |
| DN | 32 |
| SW 1 | 47 mm |
| SW 2 | 41 mm |
| Mesh size | 0.6 mm |
| C | 73 mm |
| L | 112 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

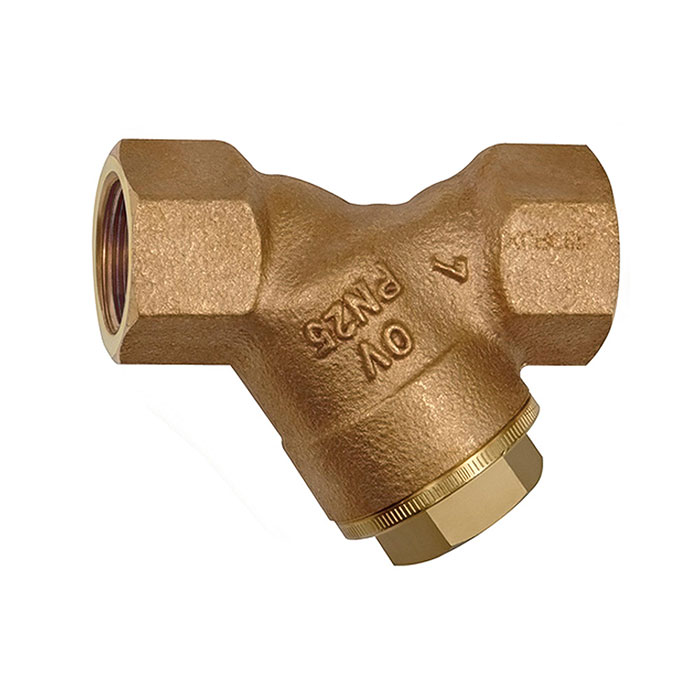

![[143327] RIEGLER Dirt strainer, Red brass, G 1 1/2, DN 40, Mesh width 0.6 mm](/web/image/product.template/210855/image_128/%5B143327%5D%20RIEGLER%20Dirt%20strainer%2C%20Red%20brass%2C%20G%201%201-2%2C%20DN%2040%2C%20Mesh%20width%200.6%20mm?unique=7f0ad75)
|
