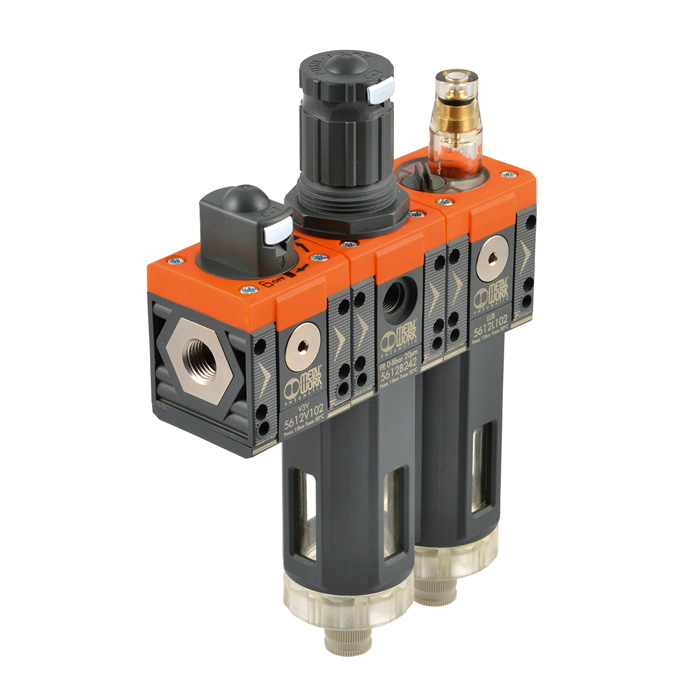

RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 1/4, 5µm, 0...4 bar, RA
Type number: 5612V10B42L102
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Shut-off valve + filter regulator + oiler "SYNTESI", BG 1, G 1/4, 5 µm, p1 max. = 10 bar, p2= 0?4 bar, RA fully automatic, T= -10?50 °C, o. Mano.
| Inlet pressure max. | 10 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Membrane | NBR 60 Shore (hardness) with polyester fabric insert |
| Container | Technopolymer |
| Filter fineness | 5 µm |
| Control range min. | 0 bar |
| Control range max. | 4 bar |
| BG | 1 |
| Input connection | G 1/4 |
| Output connection | G 1/4 |
| A | 126 mm |
| B | 202 mm |
| Flow_1 | 250 Nl/min |
| Flow_2 | 1050 Nl/min |
| Flow rate measurement 1 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 0.5 bar |
| Flow rate measurement 2 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| N | 126.2 mm |
| Air purity class at the outlet according to | 3.7.- |
| Thread on front and back | G 1/8 |
| Series | Syntesi |
| Dropper attachment | Brass |
| Spring cover | Technopolymer |
| Condensate drain | RA fully automatic |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[145038] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 1/4, 20µm, 0...10 bar, RA](/web/image/product.template/279129/image_128/%5B145038%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%2020%C2%B5m%2C%200--.10%20bar%2C%20RA?unique=0bcb17a)
|
Type number: 5612V10B56L102 |
145.00 € | |
![[145035] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 1/4, 20µm, 0...2 bar, RA](/web/image/product.template/279126/image_128/%5B145035%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%2020%C2%B5m%2C%200--.2%20bar%2C%20RA?unique=15dbc82)
|
Type number: 5612V10B50L102 |
145.00 € | |
![[145036] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 1/4, 20µm, 0...4 bar, RA](/web/image/product.template/279127/image_128/%5B145036%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%2020%C2%B5m%2C%200--.4%20bar%2C%20RA?unique=492924e)
|
Type number: 5612V10B52L102 |
145.00 € | |
![[145037] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 1/4, 20µm, 0...8 bar, RA](/web/image/product.template/279128/image_128/%5B145037%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%2020%C2%B5m%2C%200--.8%20bar%2C%20RA?unique=72fac0c)
|
Type number: 5612V10B54L102 |
145.00 € | |
![[145034] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 1/4, 5µm, 0...10 bar, RA](/web/image/product.template/279125/image_128/%5B145034%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%205%C2%B5m%2C%200--.10%20bar%2C%20RA?unique=b927e2f)
|
Type number: 5612V10B46L102 |
145.00 € | |
![[145031] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 1/4, 5µm, 0...2 bar, RA](/web/image/product.template/279122/image_128/%5B145031%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%205%C2%B5m%2C%200--.2%20bar%2C%20RA?unique=def54c0)
|
Type number: 5612V10B40L102 |
145.00 € | |
![[145033] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 1/4, 5µm, 0...8 bar, RA](/web/image/product.template/279124/image_128/%5B145033%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%205%C2%B5m%2C%200--.8%20bar%2C%20RA?unique=668a09f)
|
Type number: 5612V10B44L102 |
145.00 € | |
![[145030] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 1/8, 20µm, 0...10 bar, RA](/web/image/product.template/279121/image_128/%5B145030%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%2020%C2%B5m%2C%200--.10%20bar%2C%20RA?unique=121da33)
|
Type number: 5611V10B56L101 |
145.00 € | |
![[145027] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 1/8, 20µm, 0...2 bar, RA](/web/image/product.template/279118/image_128/%5B145027%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%2020%C2%B5m%2C%200--.2%20bar%2C%20RA?unique=a65a4a1)
|
Type number: 5611V10B50L101 |
145.00 € | |
![[145028] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 1/8, 20µm, 0...4 bar, RA](/web/image/product.template/279119/image_128/%5B145028%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%2020%C2%B5m%2C%200--.4%20bar%2C%20RA?unique=4d09d1d)
|
Type number: 5611V10B52L101 |
145.00 € | |
![[145029] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 1/8, 20µm, 0...8 bar, RA](/web/image/product.template/279120/image_128/%5B145029%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%2020%C2%B5m%2C%200--.8%20bar%2C%20RA?unique=6287e89)
|
Type number: 5611V10B54L101 |
145.00 € | |
![[145026] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 1/8, 5µm, 0...10 bar, RA](/web/image/product.template/279117/image_128/%5B145026%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%205%C2%B5m%2C%200--.10%20bar%2C%20RA?unique=58d014d)
|
Type number: 5611V10B46L101 |
145.00 € | |
![[145023] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 1/8, 5µm, 0...2 bar, RA](/web/image/product.template/280110/image_128/%5B145023%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%205%C2%B5m%2C%200--.2%20bar%2C%20RA?unique=a6a4f29)
|
Type number: 5611V10B40L101 |
145.00 € | |
![[145024] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 1/8, 5µm, 0...4 bar, RA](/web/image/product.template/279115/image_128/%5B145024%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%205%C2%B5m%2C%200--.4%20bar%2C%20RA?unique=18069c9)
|
Type number: 5611V10B42L101 |
145.00 € | |
![[145025] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 1/8, 5µm, 0...8 bar, RA](/web/image/product.template/279116/image_128/%5B145025%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%205%C2%B5m%2C%200--.8%20bar%2C%20RA?unique=5cbb0dc)
|
Type number: 5611V10B44L101 |
145.00 € | |
![[145046] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 3/8, 20µm, 0...10 bar, RA](/web/image/product.template/279137/image_128/%5B145046%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.10%20bar%2C%20RA?unique=13f44d9)
|
Type number: 5613V10B56L103 |
145.00 € | |
![[145043] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 3/8, 20µm, 0...2 bar, RA](/web/image/product.template/279134/image_128/%5B145043%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.2%20bar%2C%20RA?unique=576e96b)
|
Type number: 5613V10B50L103 |
145.00 € | |
![[145044] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 3/8, 20µm, 0...4 bar, RA](/web/image/product.template/279135/image_128/%5B145044%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.4%20bar%2C%20RA?unique=7c59290)
|
Type number: 5613V10B52L103 |
145.00 € | |
![[145045] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 3/8, 20µm, 0...8 bar, RA](/web/image/product.template/279136/image_128/%5B145045%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.8%20bar%2C%20RA?unique=8a00dd1)
|
Type number: 5613V10B54L103 |
145.00 € | |
![[145042] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 3/8, 5µm, 0...10 bar, RA](/web/image/product.template/279133/image_128/%5B145042%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%205%C2%B5m%2C%200--.10%20bar%2C%20RA?unique=5d51185)
|
Type number: 5613V10B46L103 |
145.00 € | |
![[145039] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 3/8, 5µm, 0...2 bar, RA](/web/image/product.template/279130/image_128/%5B145039%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%205%C2%B5m%2C%200--.2%20bar%2C%20RA?unique=ec4e162)
|
Type number: 5613V10B40L103 |
145.00 € | |
![[145040] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 3/8, 5µm, 0...4 bar, RA](/web/image/product.template/279131/image_128/%5B145040%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%205%C2%B5m%2C%200--.4%20bar%2C%20RA?unique=1ff408f)
|
Type number: 5613V10B42L103 |
145.00 € | |
![[145041] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 3/8, 5µm, 0...8 bar, RA](/web/image/product.template/279132/image_128/%5B145041%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%205%C2%B5m%2C%200--.8%20bar%2C%20RA?unique=4db7e10)
|
Type number: 5613V10B44L103 |
145.00 € | |
![[145078] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 1, 20µm, 0...10 bar, RA](/web/image/product.template/279169/image_128/%5B145078%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%2020%C2%B5m%2C%200--.10%20bar%2C%20RA?unique=55afe82)
|
Type number: 5626V10B56L106 |
222.05 € | |
![[145075] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 1, 20µm, 0...2 bar, RA](/web/image/product.template/279166/image_128/%5B145075%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%2020%C2%B5m%2C%200--.2%20bar%2C%20RA?unique=21906ab)
|
Type number: 5626V10B50L106 |
222.05 € | |
![[145076] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 1, 20µm, 0...4 bar, RA](/web/image/product.template/279167/image_128/%5B145076%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%2020%C2%B5m%2C%200--.4%20bar%2C%20RA?unique=673633b)
|
Type number: 5626V10B52L106 |
222.05 € | |
![[145077] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 1, 20µm, 0...8 bar, RA](/web/image/product.template/279168/image_128/%5B145077%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%2020%C2%B5m%2C%200--.8%20bar%2C%20RA?unique=bfb5e2a)
|
Type number: 5626V10B54L106 |
222.05 € | |
![[145062] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 1/2, 20µm, 0...10 bar, RA](/web/image/product.template/279153/image_128/%5B145062%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%2020%C2%B5m%2C%200--.10%20bar%2C%20RA?unique=28bf225)
|
Type number: 5624V10B56L104 |
214.89 € | |
![[145059] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 1/2, 20µm, 0...2 bar, RA](/web/image/product.template/279150/image_128/%5B145059%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%2020%C2%B5m%2C%200--.2%20bar%2C%20RA?unique=edfddf6)
|
Type number: 5624V10B50L104 |
214.89 € | |
![[145060] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 1/2, 20µm, 0...4 bar, RA](/web/image/product.template/279151/image_128/%5B145060%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%2020%C2%B5m%2C%200--.4%20bar%2C%20RA?unique=d3a3e7a)
|
Type number: 5624V10B52L104 |
214.89 € | |
![[145061] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 1/2, 20µm, 0...8 bar, RA](/web/image/product.template/279152/image_128/%5B145061%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%2020%C2%B5m%2C%200--.8%20bar%2C%20RA?unique=f9a66a9)
|
Type number: 5624V10B54L104 |
214.89 € | |
![[145058] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 1/2, 5µm, 0...10 bar, RA](/web/image/product.template/279149/image_128/%5B145058%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%205%C2%B5m%2C%200--.10%20bar%2C%20RA?unique=5c9d8bb)
|
Type number: 5624V10B46L104 |
214.89 € | |
![[145055] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 1/2, 5µm, 0...2 bar, RA](/web/image/product.template/279146/image_128/%5B145055%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%205%C2%B5m%2C%200--.2%20bar%2C%20RA?unique=81a0f48)
|
Type number: 5624V10B40L104 |
214.89 € | |
![[145056] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 1/2, 5µm, 0...4 bar, RA](/web/image/product.template/279147/image_128/%5B145056%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%205%C2%B5m%2C%200--.4%20bar%2C%20RA?unique=85b4641)
|
Type number: 5624V10B42L104 |
214.89 € | |
![[145057] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 1/2, 5µm, 0...8 bar, RA](/web/image/product.template/279148/image_128/%5B145057%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%205%C2%B5m%2C%200--.8%20bar%2C%20RA?unique=c6a25d4)
|
Type number: 5624V10B44L104 |
214.89 € | |
![[145074] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 1, 5µm, 0...10 bar, RA](/web/image/product.template/279165/image_128/%5B145074%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%205%C2%B5m%2C%200--.10%20bar%2C%20RA?unique=1638817)
|
Type number: 5626V10B46L106 |
222.05 € | |
![[145071] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 1, 5µm, 0...2 bar, RA](/web/image/product.template/279162/image_128/%5B145071%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%205%C2%B5m%2C%200--.2%20bar%2C%20RA?unique=105192e)
|
Type number: 5626V10B40L106 |
222.05 € | |
![[145072] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 1, 5µm, 0...4 bar, RA](/web/image/product.template/279163/image_128/%5B145072%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%205%C2%B5m%2C%200--.4%20bar%2C%20RA?unique=c9b1540)
|
Type number: 5626V10B42L106 |
222.05 € | |
![[145073] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 1, 5µm, 0...8 bar, RA](/web/image/product.template/279164/image_128/%5B145073%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%205%C2%B5m%2C%200--.8%20bar%2C%20RA?unique=366515b)
|
Type number: 5626V10B44L106 |
222.05 € | |
![[145070] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 3/4, 20µm, 0...10 bar, RA](/web/image/product.template/279161/image_128/%5B145070%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%2020%C2%B5m%2C%200--.10%20bar%2C%20RA?unique=7da0036)
|
Type number: 5625V10B56L105 |
222.05 € | |
![[145067] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 3/4, 20µm, 0...2 bar, RA](/web/image/product.template/279158/image_128/%5B145067%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%2020%C2%B5m%2C%200--.2%20bar%2C%20RA?unique=a6927c4)
|
Type number: 5625V10B50L105 |
222.05 € | |
![[145068] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 3/4, 20µm, 0...4 bar, RA](/web/image/product.template/279159/image_128/%5B145068%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%2020%C2%B5m%2C%200--.4%20bar%2C%20RA?unique=17e98c2)
|
Type number: 5625V10B52L105 |
222.05 € | |
![[145069] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 3/4, 20µm, 0...8 bar, RA](/web/image/product.template/279160/image_128/%5B145069%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%2020%C2%B5m%2C%200--.8%20bar%2C%20RA?unique=75f355b)
|
Type number: 5625V10B54L105 |
222.05 € | |
![[145066] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 3/4, 5µm, 0...10 bar, RA](/web/image/product.template/279157/image_128/%5B145066%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%205%C2%B5m%2C%200--.10%20bar%2C%20RA?unique=f58c16c)
|
Type number: 5625V10B46L105 |
222.05 € | |
![[145063] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 3/4, 5µm, 0...2 bar, RA](/web/image/product.template/279154/image_128/%5B145063%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%205%C2%B5m%2C%200--.2%20bar%2C%20RA?unique=979525e)
|
Type number: 5625V10B40L105 |
222.05 € | |
![[145064] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 3/4, 5µm, 0...4 bar, RA](/web/image/product.template/279155/image_128/%5B145064%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%205%C2%B5m%2C%200--.4%20bar%2C%20RA?unique=0b096a9)
|
Type number: 5625V10B42L105 |
222.05 € | |
![[145065] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 3/4, 5µm, 0...8 bar, RA](/web/image/product.template/279156/image_128/%5B145065%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%205%C2%B5m%2C%200--.8%20bar%2C%20RA?unique=7ce80e5)
|
Type number: 5625V10B44L105 |
222.05 € | |
![[145054] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 3/8, 20µm, 0...10 bar, RA](/web/image/product.template/279145/image_128/%5B145054%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.10%20bar%2C%20RA?unique=818d612)
|
Type number: 5623V10B56L103 |
214.89 € | |
![[145051] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 3/8, 20µm, 0...2 bar, RA](/web/image/product.template/279142/image_128/%5B145051%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.2%20bar%2C%20RA?unique=07691d3)
|
Type number: 5623V10B50L103 |
214.89 € | |
![[145052] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 3/8, 20µm, 0...4 bar, RA](/web/image/product.template/279143/image_128/%5B145052%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.4%20bar%2C%20RA?unique=e97e516)
|
Type number: 5623V10B52L103 |
214.89 € | |
![[145053] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 3/8, 20µm, 0...8 bar, RA](/web/image/product.template/279144/image_128/%5B145053%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.8%20bar%2C%20RA?unique=d382475)
|
Type number: 5623V10B54L103 |
214.89 € | |
![[145050] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 3/8, 5µm, 0...10 bar, RA](/web/image/product.template/279141/image_128/%5B145050%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%205%C2%B5m%2C%200--.10%20bar%2C%20RA?unique=b20699e)
|
Type number: 5623V10B46L103 |
214.89 € | |
![[145047] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 3/8, 5µm, 0...2 bar, RA](/web/image/product.template/279138/image_128/%5B145047%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%205%C2%B5m%2C%200--.2%20bar%2C%20RA?unique=e6a2072)
|
Type number: 5623V10B40L103 |
214.89 € | |
![[145048] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 3/8, 5µm, 0...4 bar, RA](/web/image/product.template/279139/image_128/%5B145048%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%205%C2%B5m%2C%200--.4%20bar%2C%20RA?unique=db9e845)
|
Type number: 5623V10B42L103 |
214.89 € | |
![[145049] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 3/8, 5µm, 0...8 bar, RA](/web/image/product.template/279140/image_128/%5B145049%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%205%C2%B5m%2C%200--.8%20bar%2C%20RA?unique=e86e1d6)
|
Type number: 5623V10B44L103 |
214.89 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=04b7896)
|
Type number: 32 |
34.57 € | |
![[101533] RIEGLER Standard pressure gauge, rear centric, G 1/8, 0 - 6 bar/87 psi](/web/image/product.template/169507/image_128/%5B101533%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-8%2C%200%20-%206%20bar-87%20psi?unique=4eb3501)
|
Type number: 110.45-KD |
6.15 € | |
![[113345] RIEGLER Sintered bronze silencer, Brass thread / hexagonal, G 1/8, AF 12](/web/image/product.template/186246/image_128/%5B113345%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Brass%20thread%20-%20hexagonal%2C%20G%201-8%2C%20AF%2012?unique=07a59f0)
|
Type number: 567-1/M |
2.46 € | |
![[113353] RIEGLER Sintered bronze silencer, Slot, G 1/8](/web/image/product.template/186254/image_128/%5B113353%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Slot%2C%20G%201-8?unique=4229cfb)
|
Type number: 564-1 |
2.37 € | |
![[144695] RIEGLER Connecting nipple set "SYNTESI", BG 1](/web/image/product.template/279863/image_128/%5B144695%5D%20RIEGLER%20Connecting%20nipple%20set%20%22SYNTESI%22%2C%20BG%201?unique=8a5ac05)
|
Type number: 9210000 |
2.73 € | |
![[145471] RIEGLER Metal Work pressure gauge, G 1/8 rear, 0-4 bar, Ø 40](/web/image/product.template/279227/image_128/%5B145471%5D%20RIEGLER%20Metal%20Work%20pressure%20gauge%2C%20G%201-8%20rear%2C%200-4%20bar%2C%20%C3%98%2040?unique=c68c973)
|
Type number: 9700102 |
9.69 € | |
![[145473] RIEGLER Metal Work pressure gauge, G 1/8 rear, 0-4 bar, Ø 50](/web/image/product.template/279229/image_128/%5B145473%5D%20RIEGLER%20Metal%20Work%20pressure%20gauge%2C%20G%201-8%20rear%2C%200-4%20bar%2C%20%C3%98%2050?unique=e5783f6)
|
Type number: 9800102 |
9.69 € | |
![[145475] RIEGLER Metal Work pressure gauge, G 1/8 rear, 0-4 bar,40x40](/web/image/product.template/279231/image_128/%5B145475%5D%20RIEGLER%20Metal%20Work%20pressure%20gauge%2C%20G%201-8%20rear%2C%200-4%20bar%2C40x40?unique=cc25ef0)
|
Type number: 9700109 |
9.38 € | |
![[145502] RIEGLER Connecting element 90°, "SYNTESI", BG 1](/web/image/product.template/279258/image_128/%5B145502%5D%20RIEGLER%20Connecting%20element%2090%C2%B0%2C%20%22SYNTESI%22%2C%20BG%201?unique=527321a)
|
Type number: 9210009 |
4.13 € | |
![[145504] RIEGLER Size adapter "SYNTESI", BG 1 - BG 2](/web/image/product.template/279260/image_128/%5B145504%5D%20RIEGLER%20Size%20adapter%20%22SYNTESI%22%2C%20BG%201%20-%20BG%202?unique=760151b)
|
Type number: 9210006 |
6.56 € | |
![[145505] RIEGLER Assembly wrench for "SYNTESI" BG 1, "bit" container](/web/image/product.template/279261/image_128/%5B145505%5D%20RIEGLER%20Assembly%20wrench%20for%20%22SYNTESI%22%20BG%201%2C%20%22bit%22%20container?unique=b6682c2)
|
Type number: 9170601 |
5.62 € | |
![[145507] RIEGLER SYNTESI" fixing screw, BG 1](/web/image/product.template/279263/image_128/%5B145507%5D%20RIEGLER%20SYNTESI%22%20fixing%20screw%2C%20BG%201?unique=1384bbf)
|
Type number: 9210030 |
0.26 € | |
![[145509] RIEGLER SYNTESI" padlock](/web/image/product.template/279366/image_128/%5B145509%5D%20RIEGLER%20SYNTESI%22%20padlock?unique=95e3395)
|
Type number: 9062401 |
12.10 € | |
![[145611] RIEGLER SYNTESI" container, BG 1, RMSA semi-automatic](/web/image/product.template/279268/image_128/%5B145611%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%201%2C%20RMSA%20semi-automatic?unique=3923a97)
|
Type number: 9210100 |
7.03 € | |
![[145613] RIEGLER SYNTESI" container, BG 1, SAC fully automatic](/web/image/product.template/279270/image_128/%5B145613%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%201%2C%20SAC%20fully%20automatic?unique=936226e)
|
Type number: 9210102 |
17.84 € | |

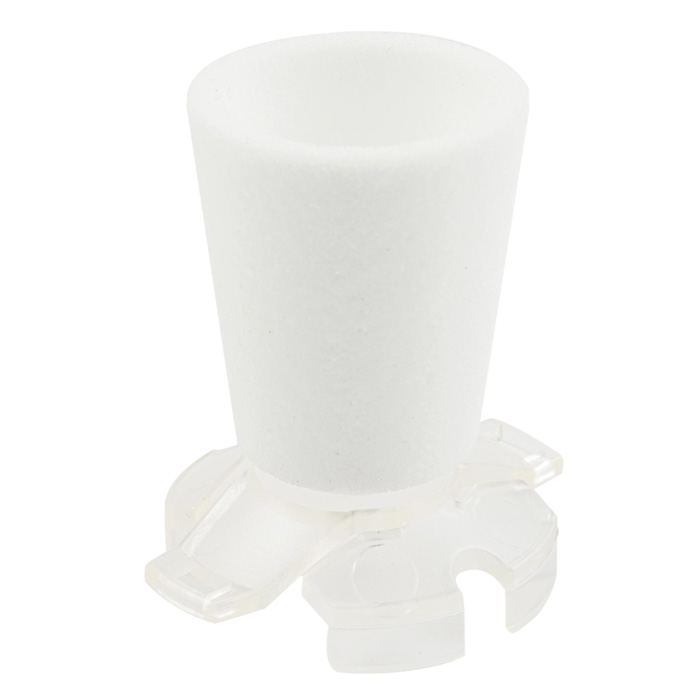

![[145620] RIEGLER Filter element "SYNTESI", BG 1, 20 µm](/web/image/product.template/279277/image_128/%5B145620%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%201%2C%2020%20%C2%B5m?unique=ec6210d)
|
Type number: 9210151 |
4.97 € | |

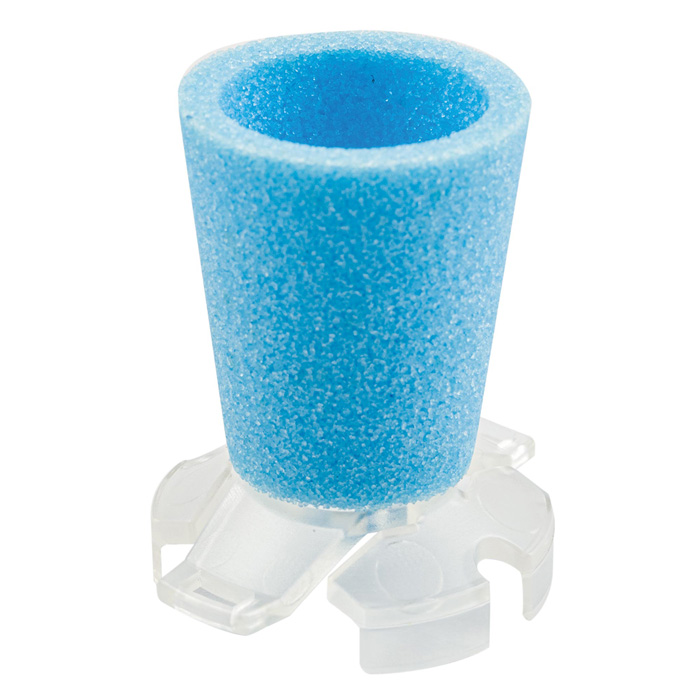

![[145621] RIEGLER Filter element "SYNTESI", BG 1, 50 µm](/web/image/product.template/279278/image_128/%5B145621%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%201%2C%2050%20%C2%B5m?unique=aa3deb1)
|
Type number: 9210152 |
4.97 € | |
![[145652] RIEGLER Valve seat for filter regulator "SYNTESI", BG 1, 20 µm](/web/image/product.template/279309/image_128/%5B145652%5D%20RIEGLER%20Valve%20seat%20for%20filter%20regulator%20%22SYNTESI%22%2C%20BG%201%2C%2020%20%C2%B5m?unique=a12f971)
|
Type number: 9210212 |
6.78 € | |

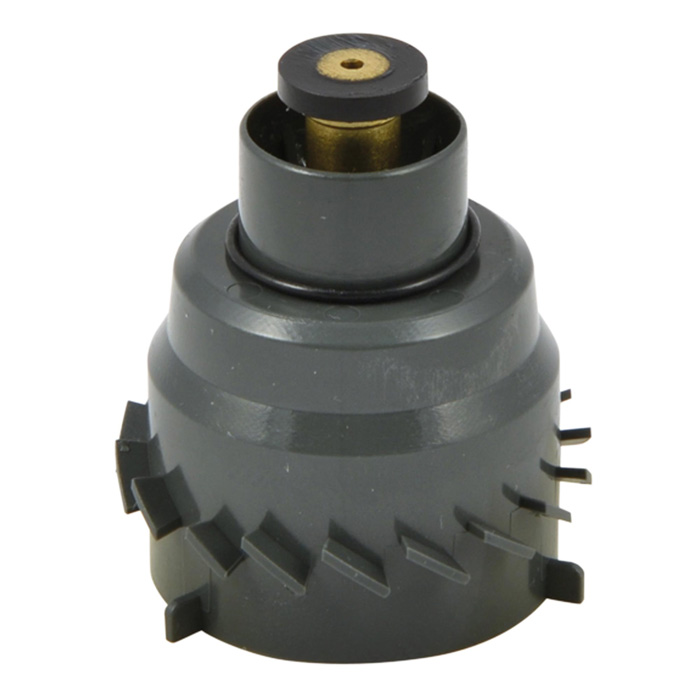

![[145653] RIEGLER Valve seat for filter regulator "SYNTESI", BG 1, 50 µm](/web/image/product.template/279310/image_128/%5B145653%5D%20RIEGLER%20Valve%20seat%20for%20filter%20regulator%20%22SYNTESI%22%2C%20BG%201%2C%2050%20%C2%B5m?unique=5a6a3c1)
|
Type number: 9210213 |
6.78 € | |
![[145658] RIEGLER SYNTESI" mounting bracket, BG 1, standard and anti-corrosion](/web/image/product.template/279315/image_128/%5B145658%5D%20RIEGLER%20SYNTESI%22%20mounting%20bracket%2C%20BG%201%2C%20standard%20and%20anti-corrosion?unique=6e51bb9)
|
Type number: 9200716X |
13.64 € | |
![[145660] RIEGLER Adapter for DIN rail "SYNTESI", BG 1 and BG 2](/web/image/product.template/279317/image_128/%5B145660%5D%20RIEGLER%20Adapter%20for%20DIN%20rail%20%22SYNTESI%22%2C%20BG%201%20and%20BG%202?unique=e3c435e)
|
Type number: 9200718X |
18.99 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[145609] RIEGLER Automatic drain valve "SYNTESI", RA](/web/image/product.template/279266/image_128/%5B145609%5D%20RIEGLER%20Automatic%20drain%20valve%20%22SYNTESI%22%2C%20RA?unique=e736bf7)
|
Type number: 9000802 |
37.41 € | |
![[145617] RIEGLER Container for oiler "SYNTESI", BG 1](/web/image/product.template/279274/image_128/%5B145617%5D%20RIEGLER%20Container%20for%20oiler%20%22SYNTESI%22%2C%20BG%201?unique=66a7241)
|
Type number: 9210110 |
5.18 € | |

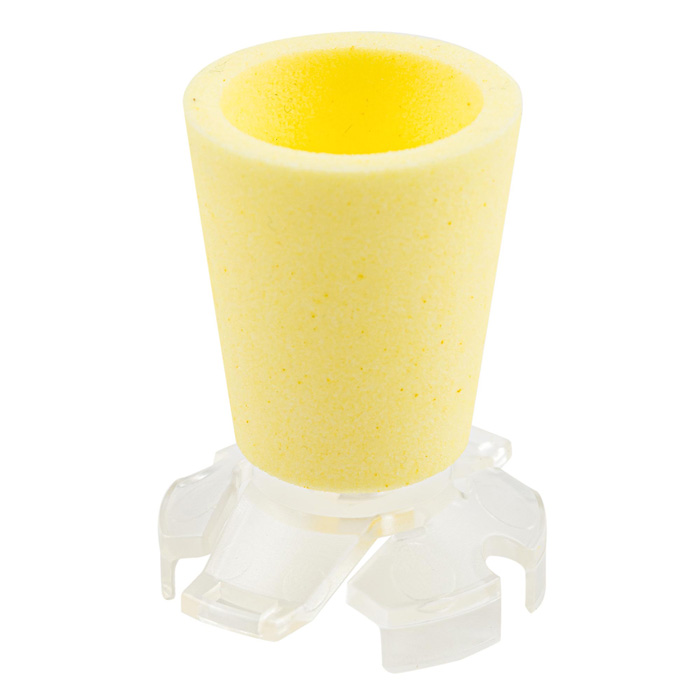

![[145619] RIEGLER Filter element "SYNTESI", BG 1, 5 µm](/web/image/product.template/279276/image_128/%5B145619%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%201%2C%205%20%C2%B5m?unique=31c8fa3)
|
Type number: 9210150 |
4.97 € | |
![[111409] RIEGLER Locking screw, Hexagonal socket 3 mm, G 1/8, nickel-plated brass](/web/image/product.template/183330/image_128/%5B111409%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%203%20mm%2C%20G%201-8%2C%20nickel-plated%20brass?unique=4e4b5a3)
|
Type number: 233.02-N |
0.42 € | |
![[145629] RIEGLER Oiler dome (drip cap) "SYNTESI", BG 1, with oil filler plug](/web/image/product.template/279286/image_128/%5B145629%5D%20RIEGLER%20Oiler%20dome%20%28drip%20cap%29%20%22SYNTESI%22%2C%20BG%201%2C%20with%20oil%20filler%20plug?unique=16a0053)
|
Type number: 9210180 |
5.43 € | |
![[145631] RIEGLER Oil filler plug "SYNTESI", BG 1](/web/image/product.template/279288/image_128/%5B145631%5D%20RIEGLER%20Oil%20filler%20plug%20%22SYNTESI%22%2C%20BG%201?unique=0b1e8b9)
|
Type number: 9210181 |
1.98 € | |
![[145642] RIEGLER Regulator attachment (bell) "SYNTESI", BG 1, 0 - 4 bar](/web/image/product.template/279299/image_128/%5B145642%5D%20RIEGLER%20Regulator%20attachment%20%28bell%29%20%22SYNTESI%22%2C%20BG%201%2C%200%20-%204%20bar?unique=8a0c46d)
|
Type number: 9210201 |
12.86 € | |
![[145612] RIEGLER SYNTESI" container, BG 1, RA fully automatic](/web/image/product.template/279269/image_128/%5B145612%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%201%2C%20RA%20fully%20automatic?unique=e2365d2)
|
Type number: 9210101 |
30.52 € | |
![[145634] RIEGLER SYNTESI" spring, BG 1, 0-4 bar, anti-corrosion](/web/image/product.template/279291/image_128/%5B145634%5D%20RIEGLER%20SYNTESI%22%20spring%2C%20BG%201%2C%200-4%20bar%2C%20anti-corrosion?unique=7d62d4b)
|
Type number: 9210191 |
2.42 € | |
![[144689] RIEGLER Threaded connection socket "SYNTESI", BG 1, G 1/4, incl. 2 screws](/web/image/product.template/277871/image_128/%5B144689%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4%2C%20incl.%202%20screws?unique=26d03e2)
|
Type number: 9210002 |
1.88 € | |
![[145651] RIEGLER Valve seat for filter regulator "SYNTESI", BG 1, 5 µm](/web/image/product.template/279308/image_128/%5B145651%5D%20RIEGLER%20Valve%20seat%20for%20filter%20regulator%20%22SYNTESI%22%2C%20BG%201%2C%205%20%C2%B5m?unique=bee87c9)
|
Type number: 9210211 |
6.78 € | |
