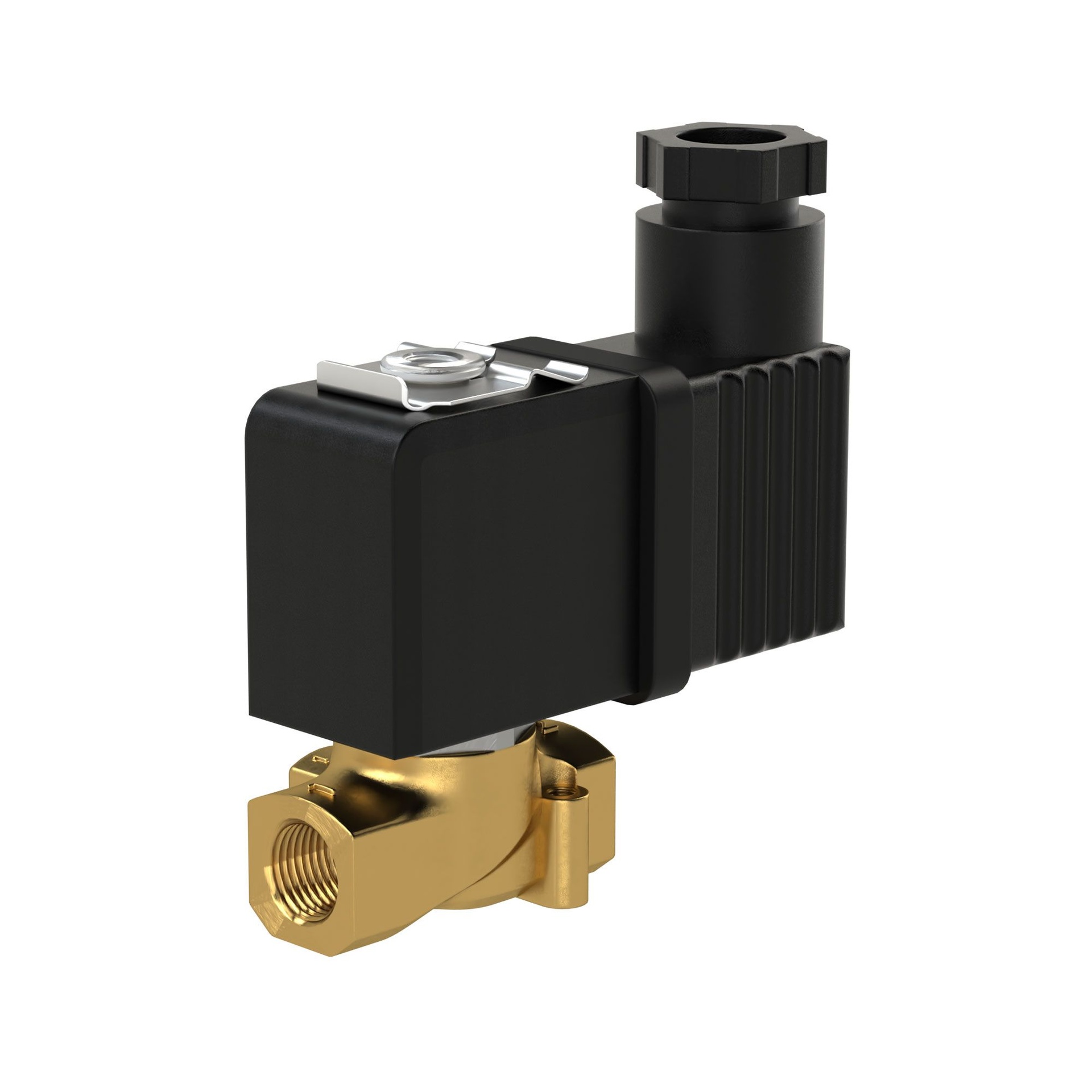

RIEGLER 3/2-Wege-MV., MS, NC, direktg., 24 V DC, FPM, G 1/8, PN 0-15 bar
Type number: 107.12-01
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3/2-way brass MV, for industrial systems, max. 15 bar - Type 107.12-01
The RIEGLER 3/2-way MV, MS, NC, directg, 24V DC, FPM, G 1/8, PN 0-15bar switches compressed air and media flows electrically controlled via a solenoid coil. The housing is made of brass with FPM seals. The operating pressure range is 0 bar to 15 bar. The permissible medium temperature is between 0 °C and 130 °C. Connection thread G 1/8 - suitable for common industry standards. Operating voltage 24V DC, protection class IP 65 (when using the cable plug). Fast, precise switching for automated processes.
Field of application
Typical areas of application: Automation, mechanical engineering and process technology.
| Housing | Brass |
| Sealing material | FPM |
| Protection class | IP 65 (when using the cable plug) |
| Electrical connection | Cable plug, 180° rotatable, PG7 to 43650 |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 15 bar |
| Medium temperature min. | 0 °C |
| Medium temperature max. | 130 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Area of application | Compressed air and neutral, non-toxic gases, water, oil |
| Interior parts | Stainless steel |
| DN | 1,2 |
| Function | normally closed (NC) |
| Tension | 24V DC |
| A | 61.9 mm |
| B | 33.2 mm |
| Thread | G 1/8 |
