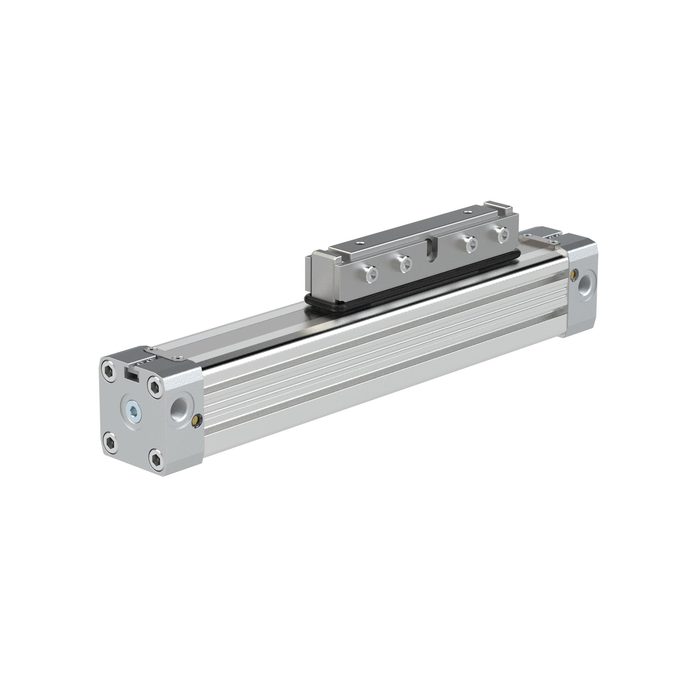

RIEGLER Piston rod, left cylinder, ZRL1C, Ø 25, stroke 1420, standard
Type number: ZRL1C.251420
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER ZRL1C Rodless Cylinder (Pneumatic Cylinder) for automation technology, for automation technology – Type ZRL1C.251420
The RIEGLER ZRL1C rodless cylinder, Ø 25, stroke 1420, standard, enables long strokes in a compact installation space and precise linear motion. The seals are made of oil-resistant synthetic rubber (NBR). The permissible medium temperature ranges from -10 °C to 80 °C. G 1/8 connection—compatible with common industrial standards. Suitable for filtered compressed air (max. 50 µm). The compact design saves installation space while delivering full performance.
Scope of Application
Typical applications: Linear actuators, rodless cylinders, and rodless cylinders in compressed air and pneumatic systems.
| Stroke | 1420 mm |
| Sealing material | Oil-resistant plastic (NBR) |
| Medium | Filtered compressed air (max. 50 µm) |
| Screws | Steel 10.9 galvanized |
| Temperature range min. | -10 °C |
| Working pressure min. | 0.5 bar |
| Piston Ø | 25 mm |
| Air connection | 3-fold on both sides |
| Working pressure max. | 8 bar |
| Temperature range max. | 80 °C |
| Piston caps and sliding parts | abrasion-resistant plastic |
| Installation position | any |
| Function | double-acting |
| Sealing tapes | Stainless steel |
| Connection | G 1/8 |
| REACH Info | no SVHC substance contained |
| CAS No. SVHC 1 | none CAS No. |
| Damping | with adjustable damping |
| Magnet | with magnet |
| REACH SVHC1 Substance Name | no |
| Class name | PLUS |
| RoHS material information | RoHS compliant |
| Load clutch | Rigid |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[147199] RIEGLER Piston rod, left cylinder, ZRL1C, Ø 25, stroke 1500, standard](/web/image/product.template/284111/image_128/%5B147199%5D%20RIEGLER%20Piston%20rod%2C%20left%20cylinder%2C%20ZRL1C%2C%20%C3%98%2025%2C%20stroke%201500%2C%20standard?unique=c7111f6)
|
Type number: ZRL1C.251500 |
474.06 € | |
![[129681] RIEGLER Rodless Cylinder ZRL1C, Ø 25, stroke 100, standard](/web/image/product.template/273032/image_128/%5B129681%5D%20RIEGLER%20Rodless%20Cylinder%20ZRL1C%2C%20%C3%98%2025%2C%20stroke%20100%2C%20standard?unique=c7111f6)
|
Type number: ZRL1C.250100 |
309.22 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[129638] RIEGLER REED sensor, 2-wire, 5-meter cable, 5–130 V AC/DC, 6 W, NO, LED](/web/image/product.template/273848/image_128/%5B129638%5D%20RIEGLER%20REED%20sensor%2C%202-wire%2C%205-meter%20cable%2C%205%E2%80%93130%20V%20AC-DC%2C%206%20W%2C%20NO%2C%20LED?unique=c7111f6)
|
Type number: RS.ZRL1.K5 |
22.06 € | |
![[129639] RIEGLER HALL sensor, 3-wire, M8 plug, 10–30 V DC, 4 W, NO, PNP, LED](/web/image/product.template/273849/image_128/%5B129639%5D%20RIEGLER%20HALL%20sensor%2C%203-wire%2C%20M8%20plug%2C%2010%E2%80%9330%20V%20DC%2C%204%20W%2C%20NO%2C%20PNP%2C%20LED?unique=c7111f6)
|
Type number: HS.ZRL1.PNP.M8 |
36.19 € | |
![[129641] RIEGLER Foot Mounting for Rodless Cylinder ZRL1 Ø25](/web/image/product.template/273851/image_128/%5B129641%5D%20RIEGLER%20Foot%20Mounting%20for%20Rodless%20Cylinder%20ZRL1%20%C3%9825?unique=c7111f6)
|
Type number: FB.ZRL1.25 |
37.77 € | |
![[129648] RIEGLER Intermediate Support for Rodless Cylinders ZRL1 Ø25](/web/image/product.template/273000/image_128/%5B129648%5D%20RIEGLER%20Intermediate%20Support%20for%20Rodless%20Cylinders%20ZRL1%20%C3%9825?unique=c7111f6)
|
Type number: ZS.ZRL1.25 |
37.15 € | |
![[129654] RIEGLER Mobile Center Mounting G for Piston Rod Cylinder ZRL1 Ø25](/web/image/product.template/273006/image_128/%5B129654%5D%20RIEGLER%20Mobile%20Center%20Mounting%20G%20for%20Piston%20Rod%20Cylinder%20ZRL1%20%C3%9825?unique=c7111f6)
|
Type number: MMBG.ZRL1.25 |
27.26 € | |
![[129656] RIEGLER Mobile Center Mounting W for Piston Rod Cylinder ZRL1 Ø25](/web/image/product.template/273008/image_128/%5B129656%5D%20RIEGLER%20Mobile%20Center%20Mounting%20W%20for%20Piston%20Rod%20Cylinder%20ZRL1%20%C3%9825?unique=c7111f6)
|
Type number: MMBW.ZRL1.25 |
27.26 € | |

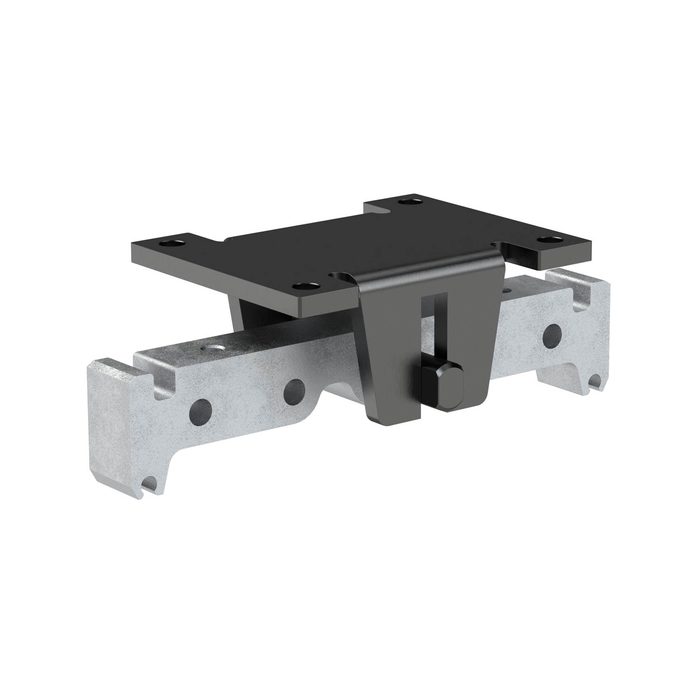

![[129658] RIEGLER Movable Load Clutch for Piston Rod, Cyl. ZRL1C, Ø25](/web/image/product.template/273010/image_128/%5B129658%5D%20RIEGLER%20Movable%20Load%20Clutch%20for%20Piston%20Rod%2C%20Cyl.%20ZRL1C%2C%20%C3%9825?unique=c7111f6)
|
