RIEGLER Piston rod, left cylinder, ZRL1C, Ø 25, stroke 1500, standard
Type number: ZRL1C.251500
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER ZRL1C Rodless Cylinder (Pneumatic Cylinder) for automation technology, for automation technology – Type ZRL1C.251500
The RIEGLER ZRL1C rodless cylinder, Ø 25, stroke 1500, standard, enables long strokes in a compact installation space and precise linear movements. The seals are made of oil-resistant synthetic rubber (NBR). The permissible medium temperature ranges from -10 °C to 80 °C. G 1/8 connection—compatible with common industrial standards. Suitable for filtered compressed air (max. 50 µm). The compact design saves installation space while delivering full performance.
Scope of Application
Typical applications: Linear actuators, rodless cylinders, and rodless cylinders in compressed air and pneumatic systems.
| Stroke | 1500 mm |
| Sealing material | Oil-resistant plastic (NBR) |
| Medium | Filtered compressed air (max. 50 µm) |
| Screws | Steel 10.9 galvanized |
| Temperature range min. | -10 °C |
| Working pressure min. | 0.5 bar |
| Piston Ø | 25 mm |
| Air connection | 3-fold on both sides |
| Working pressure max. | 8 bar |
| Temperature range max. | 80 °C |
| Piston caps and sliding parts | abrasion-resistant plastic |
| Installation position | any |
| Function | double-acting |
| Sealing tapes | Stainless steel |
| Connection | G 1/8 |
| Damping | with adjustable damping |
| Magnet | with magnet |
| Class name | PLUS |
| Load clutch | Rigid |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

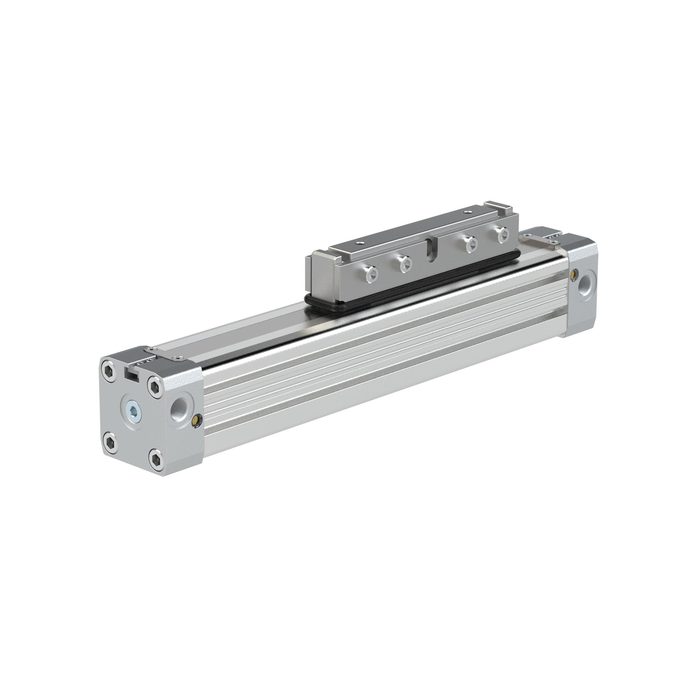

![[147063] RIEGLER Piston rod, left cylinder, ZRL1C, Ø 25, stroke 1420, standard](/web/image/product.template/284053/image_128/%5B147063%5D%20RIEGLER%20Piston%20rod%2C%20left%20cylinder%2C%20ZRL1C%2C%20%C3%98%2025%2C%20stroke%201420%2C%20standard?unique=c7111f6)
|
