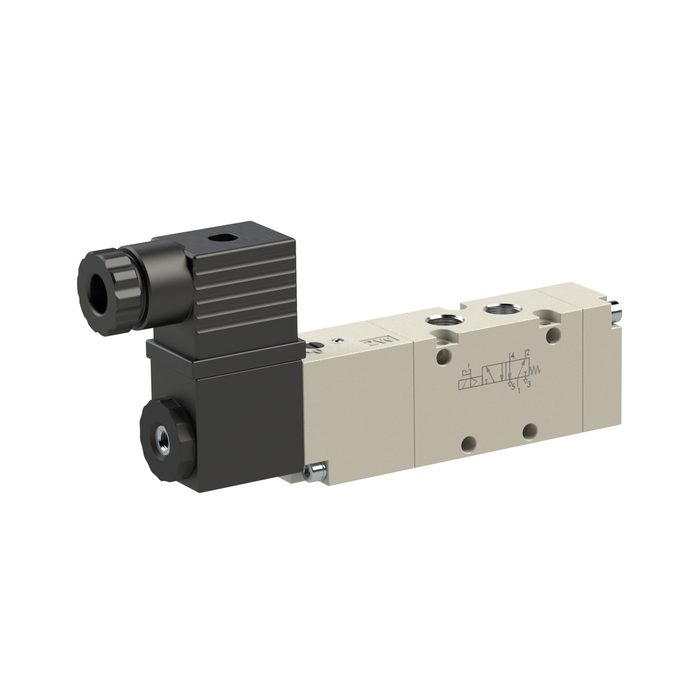

RIEGLER 5/2-way valve, elpn., ext. control, monostable, G 1/8, 24 V DC

https://www.filcom-technik.de/web/image/product.template/284158/image_1920?unique=ea2ce13

Typennummer: 517.52.18.E.M.24D

79.67 € 79.67 EUR 79.67 € VAT Included

92.99 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

147263

EAN :

4047322789899

Category :

Valves Electropneumatically Operated

Weight :

0.01 kg

5/2-way valve, electropneumatic, ext. pilot, monostable, G 1/8, 24 V DC, p= vacuum ? 10 bar, control pressure 2.5 ? 10 bar, aluminum

Execution electropneumatic
Control air supply external
Symbol 59
Scope of delivery with plug and coil
Pilot air connection M5
Series Series 70
Flow rate measurement 1 Flow rate at 6 bar and ∆p 0.5 bar
Flow rate measurement 2 Flow rate at 6 bar and Δp 1.0 bar
Flow 2 550 Nl/min
Flow 1 400 Nl/min
Actuation monostable
DN 5
Operating pressure min. -0.99 bar
Ambient temperature min. -10 °C
Medium temperature min. -10 °C
Function 5/2
Control pressure max. 10 bar
Max. operating pressure 10 bar
Control pressure min. 2.5 bar
Tension 24 V DC
Ambient temperature max. 50 °C
Medium temperature max. 60 °C
Connection G 1/8
Medium Filtered compressed air with or without lubrication. If lubricated, then continuous.
Sealing material NBR
Class name PLUS
Manual override resting

Maintenance, wear and spare parts

Product Price

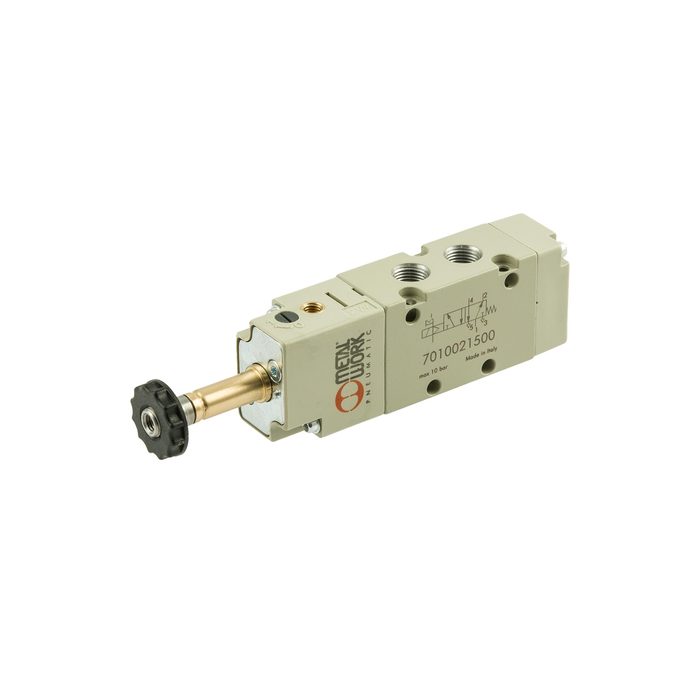

[147121] RIEGLER 5/2-way valve, electropneumatic, ext. control air, monostable, G 1/8

Typennummer: 7010021500

 68.34 €
[117313] RIEGLER Device plug, 22 mm, type B

Type number: 1920.9P

 1.48 €
[118632] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 24 V DC, 2 W

Type number: 400-514-42

 9.87 €
