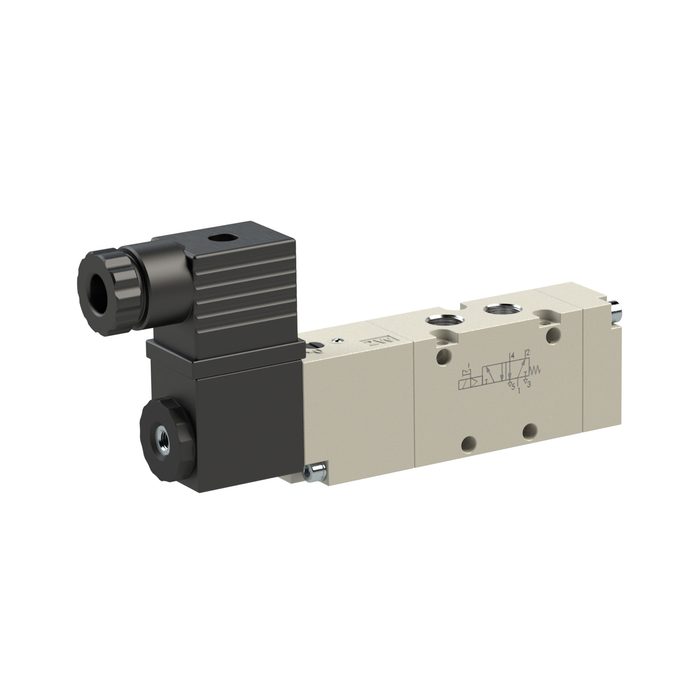

RIEGLER 5/2-way valve, elpn., ext. control, monostable, G 1/8, 12 V DC
Typennummer: 517.52.18.E.M.12D
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
147271EAN :
4047322789974Category :
Valves Electropneumatically OperatedWeight :
0.01 kgRIEGLER 5/2-way valve for pneumatic control, max. 10 bar, G 1/8 - Type 517.52.18.E.M.12D
The RIEGLER 5/2-way valve, elpn., ext. control, monostable, G 1/8, 12 V DC controls the direction of the compressed air flow for targeted movement sequences. with NBR seals. The operating pressure range is -0.99 bar to 10 bar. The permissible medium temperature is between -10 °C and 60 °C. G 1/8 connection thread - suitable for common industry standards. Suitable for filtered compressed air with or without lubrication. If lubricated, then continuous. Operating voltage 12 V DC. Precise directional control for defined movement sequences.
Field of application
Typical areas of application: Pneumatic controls and mechanical engineering.
| Execution | electropneumatic |
| Control air supply | external |
| Symbol | 59 |
| Scope of delivery | with plug and coil |
| Pilot air connection | M5 |
| Series | Series 70 |
| Flow rate measurement 1 | Flow rate at 6 bar and ∆p 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Flow 2 | 550 Nl/min |
| Flow 1 | 400 Nl/min |
| Actuation | monostable |
| DN | 5 |
| Operating pressure min. | -0.99 bar |
| Ambient temperature min. | -10 °C |
| Medium temperature min. | -10 °C |
| Function | 5/2 |
| Control pressure max. | 10 bar |
| Max. operating pressure | 10 bar |
| Tension | 12 V DC |
| Control pressure min. | 2.5 bar |
| Ambient temperature max. | 50 °C |
| Medium temperature max. | 60 °C |
| Connection | G 1/8 |
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Class name | PLUS |
| Manual override | resting |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[147121] RIEGLER 5/2-way valve, electropneumatic, ext. control air, monostable, G 1/8](/web/image/product.template/284063/image_128/%5B147121%5D%20RIEGLER%205-2-way%20valve%2C%20electropneumatic%2C%20ext.%20control%20air%2C%20monostable%2C%20G%201-8?unique=ac8b223)
|
Typennummer: 7010021500 |
68.34 € | |
![[117313] RIEGLER Device plug, 22 mm, type B](/web/image/product.template/274839/image_128/%5B117313%5D%20RIEGLER%20Device%20plug%2C%2022%20mm%2C%20type%20B?unique=4bd6d96)
|
Type number: 1920.9P |
1.48 € | |
![[118631] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 12 V DC, 2 W](/web/image/product.template/275047/image_128/%5B118631%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%2012%20V%20DC%2C%202%20W?unique=67068b8)
|
Type number: 400-514-41 |
9.87 € | |
