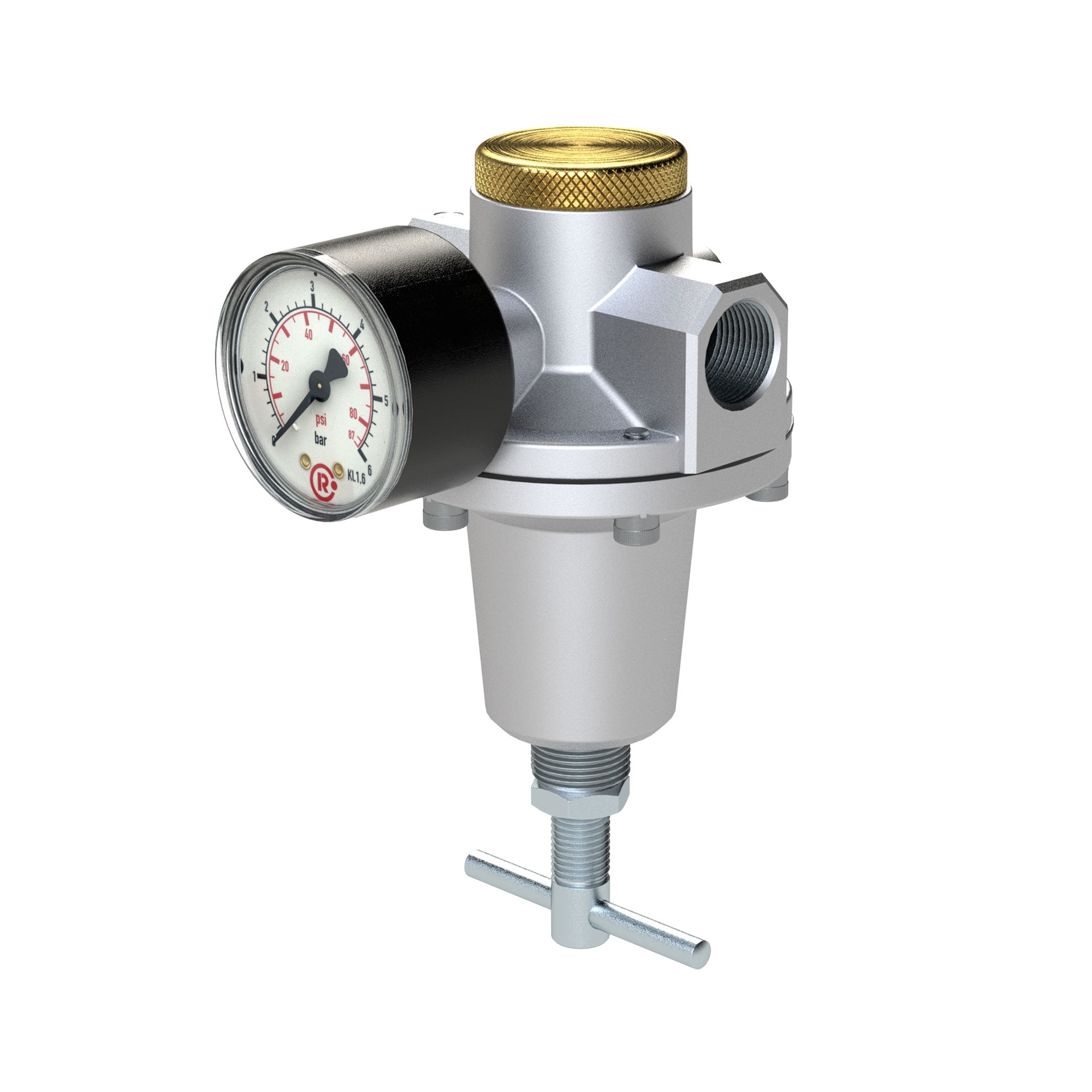

RIEGLER constant pressure regulator incl. pressure gauge, BG 3, G 1/2, 0.1 - 3 bar
Typennummer: DRK.G12.BG3.0,1-3B
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Constant pressure regulator incl. pressure gauge, BG 3, G 1/2, PE max. 40 bar, medium temperature max. 60 °C, control range 0.1 - 3 bar
| Flow 1 | 5000 l/min |
| fat used | Berulub OX 100 EP |
| D | 131 mm |
| Control range max. | 3 bar |
| BG | 3 |
| DN | 15 |
| Ambient temperature min. | -10 °C |
| Medium temperature min. | -10 °C |
| Control range min. | 0.1 bar |
| B | 164 mm |
| C | 33 mm |
| Inlet pressure max. | 40 bar |
| Ambient temperature max. | 60 °C |
| Medium temperature max. | 60 °C |
| A | 82 mm |
| Flow rate measurement | with P<subscript>1</subscript> = 8 bar, P<subscript>2 </subscript>= 6 bar and pressure drop Î"<subscript>p</subscript> = 1 bar |
| Class name | EASY |
| Thread | G 1/2 |
| Sealing material | NBR |
| Series | Standard |
| Housing | Zinc die casting |
