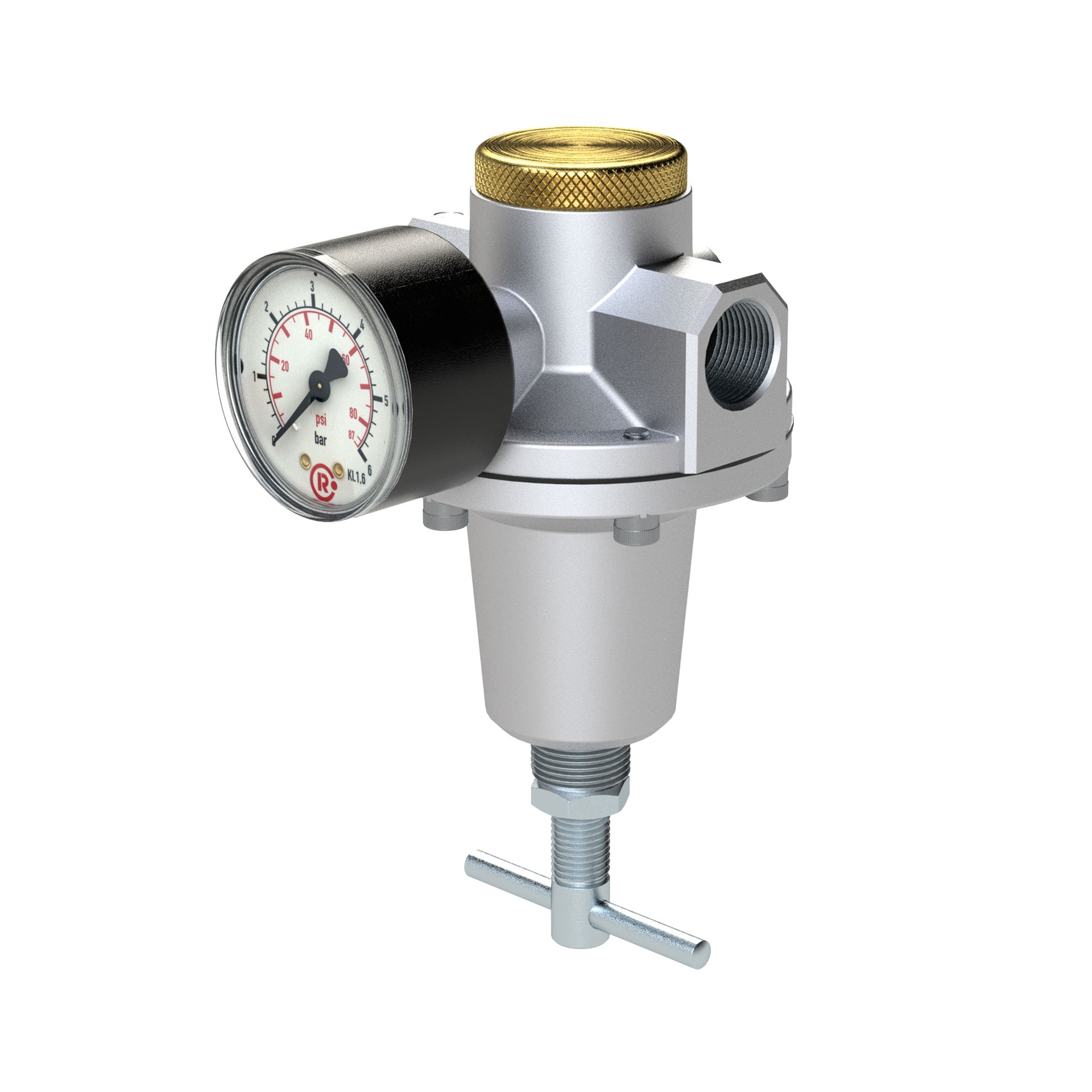

RIEGLER constant pressure regulator incl. pressure gauge, BG 3, G 1/2, 0.2 - 6 bar
Typennummer: DRK.G12.BG3.0,2-6B
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Constant pressure regulator made of die-cast zinc, for compressed air treatment, 0.2 bar - Type DRK.G12.BG3.0.2-6B
The RIEGLER constant pressure regulator incl. pressure gauge, BG 3, G 1/2, 0.2 - 6 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of die-cast zinc with NBR seals. The control range extends from 0.2 bar to 6 bar with a maximum inlet pressure of 40 bar. The permissible medium temperature is between -10 °C and 60 °C. G 1/2 connection thread - suitable for common industry standards. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Flow 1 | 5000 l/min |
| fat used | Berulub OX 100 EP |
| D | 131 mm |
| Control range max. | 6 bar |
| BG | 3 |
| DN | 15 |
| Ambient temperature min. | -10 °C |
| Medium temperature min. | -10 °C |
| Control range min. | 0.2 bar |
| B | 164 mm |
| C | 33 mm |
| Inlet pressure max. | 40 bar |
| Ambient temperature max. | 60 °C |
| Medium temperature max. | 60 °C |
| A | 82 mm |
| Flow rate measurement | with P<subscript>1</subscript> = 8 bar, P<subscript>2 </subscript>= 6 bar and pressure drop Î"<subscript>p</subscript> = 1 bar |
| Class name | EASY |
| Thread | G 1/2 |
| Sealing material | NBR |
| Series | Standard |
| Housing | Zinc die casting |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101677] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 10 bar/145 psi](/web/image/product.template/169649/image_128/%5B101677%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2010%20bar-145%20psi?unique=1886a70)
|
Type number: 206-KD |
6.25 € | |
![[147538] RIEGLER wear part set constant pressure regulator, BG 3, max. control pressure 3-16bar](/web/image/product.template/284374/image_128/%5B147538%5D%20RIEGLER%20wear%20part%20set%20constant%20pressure%20regulator%2C%20BG%203%2C%20max.%20control%20pressure%203-16bar?unique=4ea3ad6)
|
Typennummer: VTSDRK.BG3.3-16B |
19.72 € | |
