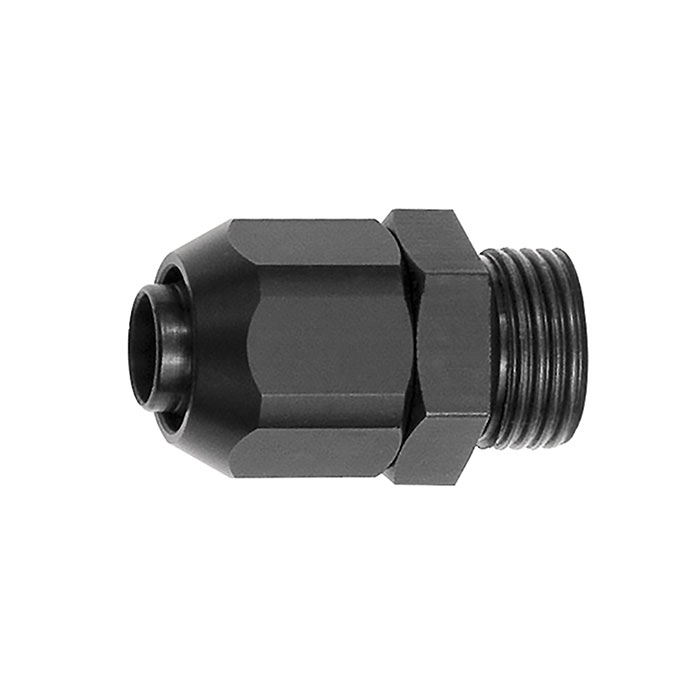

RIEGLER Screw-in fitting for PVC pneumatic hose 4x6.2, G 1/4
Typennummer: 11.0416/1-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Screw-in fitting for PVC pneumatic hose made of aluminum / plastic, max. 15 bar - Type 11.0416/1-1
The RIEGLER screw-in fitting for PVC pneumatic hose 4x6.2, G 1/4 conducts compressed air flexibly and reliably from the compressor to the consumer. The housing is made of aluminum / plastic. The operating pressure range is -0.95 bar to 15 bar. The operating temperature is between -10 °C and 70 °C. G 1/4 connection thread - suitable for common industry standards. Suitable for air. Flexible, pressure-resistant and suitable for various media.
Field of application
Typical areas of application: Compressed air distribution in workshops and production.
| Medium | Air |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 15 bar |
| Material | Aluminum / plastic |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 70 °C |
| Thread | G 1/4 |
| SW 1 | 13 mm |
| SW | 17 mm |
| for PVC hose | 4x6,2 |
| L | 27 mm |
| L1 | 13 mm |
| L2 | 9 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | 6b |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | AW-2011 |
| Class name | FLEX |
