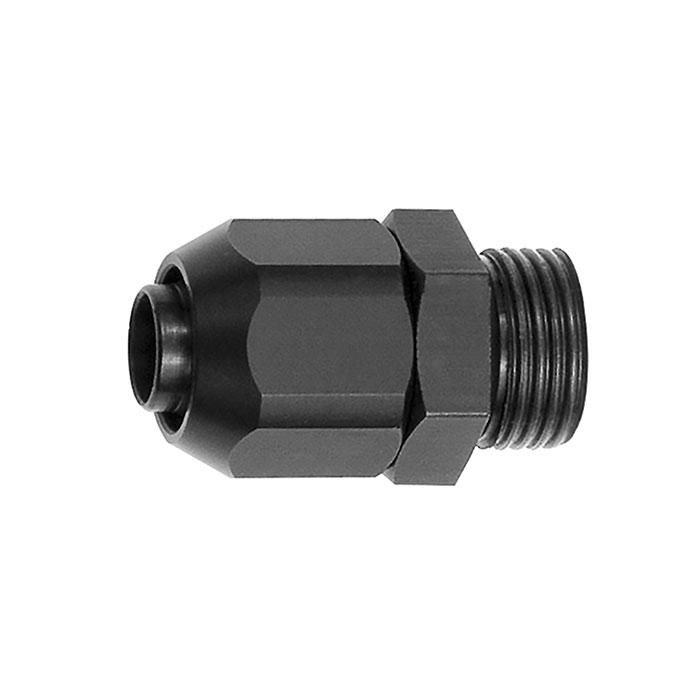

RIEGLER Screw-in fitting for PVC pneumatic hose 8x10.2, G 1/4
Typennummer: 11.0418/1-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Screw-in fitting for PVC pneumatic hose 8x10.2, aluminum/plastic, temp. -10 °C to 70 °C, PN -0.95 - 15 bar, G 1/4
| Medium | Air |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 15 bar |
| Material | Aluminum / plastic |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 70 °C |
| Thread | G 1/4 |
| SW 1 | 16 mm |
| SW | 17 mm |
| for PVC hose | 8x10,2 |
| L | 30 mm |
| L1 | 16 mm |
| L2 | 9 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | 6b |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | AW-2011 |
| Class name | FLEX |
